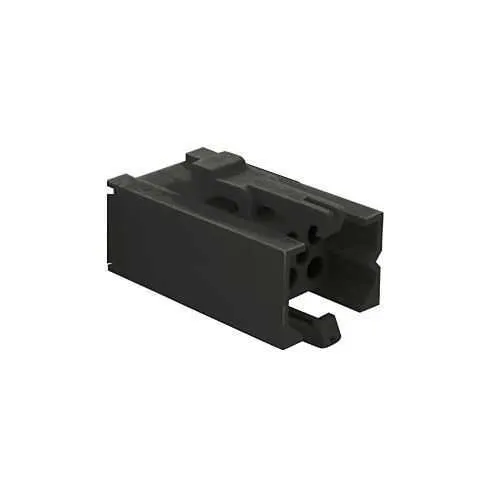

Eaton SMS6P1 Plastic Rectangular Connector - IP30
Part Number: SMS6P1
Quick Summary
Eaton Souriau SMS series quick mating plastic rectangular connector enables fast, secure terminations in harsh industrial environments. Engineers often struggle with vibration, misalignment, and space constraints that complicate harness installations. This SMS6P1 design meets UL94 V0 flammability, REACH, and RoHS compliance, helping you manage regulatory risk. With IP30 protection and a compact 6-position plug, it delivers reliable connectivity while reducing installation time and inventory complexity. The lightweight 4.4 g shell and compact dimensions support tighter panel layouts and easier field assemblies, making it a practical choice for automation cabinets, conveyors, and packaging lines. Designed for high-cycle environments, it pairs with standard crimp contacts and common SMS-series mating components for scalable automation projects. It also supports straightforward field testing and serviceability.
Product Information
Extended Description
SMS6P1 Eaton: Cable plug without strain relief hood; SMS6P1
Product Name
Eaton Souriau SMS series quick mating plastic rectangular connector
Catalog Number
SMS6P1
Product Length/Depth
32.9 mm
Product Height
22.9 mm
Product Width
18.6 mm
Product Weight
4.4 g
Environmental conditions
Flammability rating UL94 V0 REACH RoHS
Connector accessory option
No backshell possibility
Connector type
Plug
Contact delivery
Not delivered
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP30
Layout
6
Plug type
Straight Plug
Shell material
Plastic
Operating temperature - max
125 °C
Operating temperature - min
-55 °C
Number Of Contacts
6
Number of cavity #16
6
Feature: The SMS6P1 provides a 6-position straight plug with six cavities in a compact 32.9 mm length. Business impact: It reduces panel cutouts and harness bulk, enabling tighter cable routing and lower overall harness weight. Application: Ideal for small automation cells, packaging lines, and compact drives where space and weight matter. Feature: Push-Pull coupling allows fast mating and unmating, decreasing downtime during setup and maintenance. Application: robotics, conveyors, and automated assembly lines. Feature: IP30 protection and a plastic shell deliver reliable indoor protection against dust and debris, supporting rugged use inside machine enclosures. Application: control cabinets and panel-mounted assemblies. Feature: UL94 V0, REACH, and RoHS compliance keeps regulatory risk low across industries. Application: industrial automation and equipment OEMs requiring formal compliance. Feature: Crimp contact delivery ensures quick, repeatable terminations; the plug is designed to work with standard SMS-series hardware for scalable solutions. Application: harness manufacturing and field assembly. Feature: Six contacts and six cavities (6) support standardized harness designs and easy replacement across multiple SMS-series modules. Application: modular automation architectures and serial harnessing.
Get a Quick Quote for a Eaton SMS6P1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SMS6P1?
Enquire Now
FAQs
Yes. SMS6P1 is a 6-contact crimp-contact plug from the SMS series. It is supplied as the plug without a backshell, so pair it with compatible SMS-series receptacles and, if needed, the appropriate mating hardware from Eaton. This ensures proper alignment, secure mating, and reliable signal integrity in harness assemblies.
SMS6P1 operates from -55 °C to 125 °C and features an IP30 ingress protection rating. These specifications support reliable performance in indoor industrial environments with dust exposure or limited moisture, making it suitable for panel-mounted wiring and equipment enclosures.
Yes. Its compact 32.9 mm length, 22.9 mm height, 18.6 mm width, and six-crimp contact layout fit tight spaces typical of packaging lines and control panels. The push-pull coupling speeds mating, while the IP30 rating and lightweight plastic shell contribute to lower harness mass and simplified field deployment.
SMS6P1 meets UL94 V0 flammability, REACH, and RoHS compliance. These certifications support safe, compliant use across industrial and automation applications and help simplify procurement for regulated environments.
The push-pull coupling enables faster mating and unmating, reducing maintenance and setup time. The compact, lightweight design lowers harness weight and improves route planning, while CRIMP termination provides reliable, repeatable connections. Together, these factors shorten project timelines and can lower total cost of ownership over the product lifecycle.
