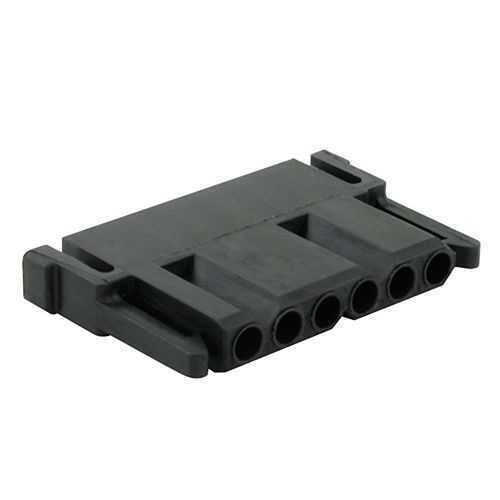

Eaton SMS6P3 Connector - Push-Pull Plastic Rectangular IP30
Part Number: SMS6P3
Quick Summary
The Eaton SMS6P3 Connector provides quick mating for compact electrical interconnections in industrial machinery. Engineers often confront vibration, misalignment, and rework when using ill-fitting connectors. This plug is RoHS and REACH compliant and carries UL94 V0 flammability with IP30 protection suitable for control cabinets and equipment housings. With a compact 31.2 mm length, 25 mm width, and 5.9 mm height, it fits tight enclosures while delivering six crimped contacts. Part of the Souriau SMS series, it streamlines harnessing and reduces installation time, translating to lower spare parts costs and improved traceability across automation projects.
Product Information
Extended Description
SMS6P3 Eaton: Socket cable plug for pin and coax boardmount header; SMS6P3
Product Name
Eaton Souriau SMS series quick mating plastic rectangular connector
Catalog Number
SMS6P3
Product Length/Depth
31.2 mm
Product Height
5.9 mm
Product Width
25 mm
Product Weight
3.5 g
Environmental conditions
RoHS REACH Flammability rating UL94 V0
Connector accessory option
No backshell possibility
Connector type
Plug
Contact delivery
Not delivered
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP30
Layout
6
Plug type
Straight Plug
Shell material
Plastic
Operating temperature - max
125 °C
Operating temperature - min
-55 °C
Number Of Contacts
6
Number of cavity #16
6
Feature Push-Pull coupling and six-position layout → Business Impact Faster mate/unmate cycles reduce downtime and labor costs on automated lines. Application Ideal for control cabinets and dense wiring harnesses in machinery. Feature Six-position Crimp Contacts with IP30 rating → Business Impact Reliable, vibration-resistant connections that meet enclosure standards; reduces maintenance intervals. Application Board-to-board and cable-to-board assemblies in industrial equipment. Feature RoHS and REACH compliance with UL94 V0 plastic housing → Business Impact Enhanced safety and regulatory compliance; lowers risk of material failure in harsh environments. Application Enclosures, machinery housings, and hazardous zones. Feature Operating temperature range -55 °C to 125 °C → Business Impact Wide operating tolerance enables use in extreme industrial environments; minimizes thermal-related failures. Application Outdoor enclosures, ovens, or high-temperature process areas. Feature Compact dimensions 31.2 mm L × 25 mm W × 5.9 mm H with six cavities → Business Impact Enables dense, cost-efficient harness designs; simplifies enclosure layout. Application Space-constrained automation panels. Feature No backshell option → Business Impact Streamlined procurement and reduced accessory spend; requires clean enclosure design. Application Projects with compact enclosures and minimal external protections.
