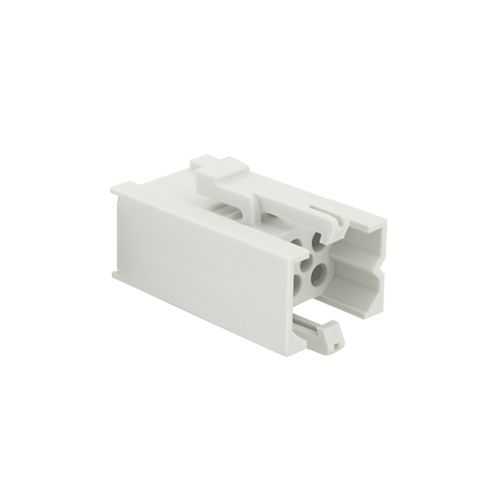

Eaton SMS6PD3 Quick Mating Plastic Connector - UL94 V0
Part Number: SMS6PD3
Quick Summary
Eaton SMS6PD3 is a quick mating plastic connector for robust industrial wiring harnesses. Engineers face mating reliability and space constraints in tight enclosures, making compact, dependable interconnects essential. This connector combines IP40 protection with UL94 V0 flame resistance and RoHS/REACH compliance, reducing risk in hazardous environments. As part of the Souriau SMS series, it relies on crimp contacts and a Push-Pull coupling to speed installation while ensuring secure mating. Its compact footprint supports dense panel layouts, delivering faster builds and lower maintenance costs. Practically, these traits translate to more reliable machinery, smoother production lines, and measurable savings over time in automation projects.
Product Information
Extended Description
SMS6PD3 Eaton: Flame retardant plug without strain relief hood; SMS6PD3
Product Name
Eaton Souriau SMS series quick mating plastic rectangular connector
Catalog Number
SMS6PD3
Product Length/Depth
32.9 mm
Product Height
13.4 mm
Product Width
18.6 mm
Product Weight
6.21 g
Environmental conditions
Flammability rating UL94 V0 REACH Fire & Smoke RoHS
Connector accessory option
No backshell possibility
Connector type
Plug
Contact delivery
Not delivered
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP40
Layout
6
Plug type
Straight Plug
Shell material
Plastic
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
6
Number of cavity #16
6
Six-position, straight plug design delivers a compact footprint suitable for crowded control panels and small automation enclosures, reducing wiring complexity while maintaining six dependable signal paths. This translates to faster harness assembly and easier field servicing in robotics and machine automation applications. The IP40 rating paired with UL94 V0 flame retardant housing ensures safer operation and regulatory alignment in manufacturing environments, helping you meet safety standards and avoid costly rework. The no backshell option simplifies procurement and minimizes parts variants, while the crimp contact delivery supports rapid, consistent terminations with high contact reliability. Push-Pull coupling enables quick mating and unmating, cutting maintenance time and improving uptime in continuous production lines. The plastic shell keeps weight low (6.21 g) and supports mounting flexibility in compact enclosures, with a six-cavity layout that scales neatly with modular control architectures. Compatibility with the Souriau SMS series ecosystem means existing tooling and crimp terminals can be leveraged to reduce changeover time and total cost of ownership.
Get a Quick Quote for a Eaton SMS6PD3
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SMS6PD3?
Enquire Now
FAQs
SMS6PD3 uses crimp contacts and does not offer a backshell accessory option. To maximize reliability, select compatible six-position crimp terminals designed for the SMS series and ensure proper crimp tooling and inspection. This approach minimizes contact resistance and ensures consistent mating performance in dense panel layouts.
SMS6PD3 operates from -40 °C to 105 °C, providing resilience across cold start and high-heat cabinet environments. It carries IP40 protection, UL94 V0 flame retardant housing, and RoHS/REACH compliance, supporting safe use in standard industrial automation and electronics enclosures.
Yes. The 6-position, straight plug design, Push-Pull coupling, and compact 32.9 mm length fit tightly packed robotic control panels and automation cabinets. With crimp contacts and a lightweight 6.21 g profile, it enables reliable interconnects while facilitating quick field servicing and modular expansion in automated systems.
SMS6PD3 carries UL94 V0 flame retardant housing and RoHS/REACH compliance, with IP40 protection. While not rated at higher ingress levels, this makes it suitable for general control cabinet wiring and many automation environments. For harsher environments, evaluate higher IP-rated solutions or add protective enclosures as needed.
The Push-Pull coupling enables faster mating and unmating, reducing installation and maintenance time on busy lines. The six-position layout simplifies harness design, and the lightweight plastic shell lowers overall weight in assemblies. Combined, these factors can shorten project timelines, lower labor costs, and improve uptime in routine maintenance cycles.
