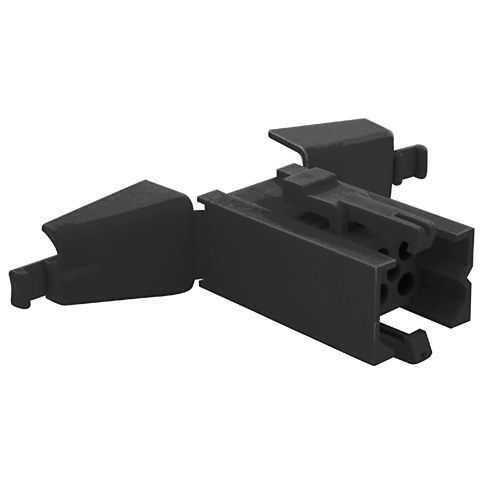

Eaton SMS6PDH1 Quick Mating Plastic Rectangular Connector - IP30
Part Number: SMS6PDH1
Quick Summary
Eaton SMS6PDH1 quick mating plastic rectangular connector enables fast, reliable cable connections for industrial automation equipment. Mismatched assemblies, downtime, and costly rework are common pain points in panel wiring, which this design helps prevent with its push-pull coupling and integrated strain relief. Certified for RoHS and REACH, with UL94 V0 flammability and IP30 protection, it supports global sourcing and safe operation in demanding environments. For procurement teams, the 6-cavity straight plug layout simplifies harness design, reduces part variety, and accelerates installation on conveyors, robotics, and machine tools. Operating from -55 to 125 °C, with a plastic shell and high tolerance for vibration, this connector helps maintain uptime and predictable maintenance cost trajectories.
Product Information
Extended Description
SMS6PDH1 Eaton: Cable plug with integrated strain relief; SMS6PDH1
Product Name
Eaton Souriau SMS series quick mating plastic rectangular connector
Catalog Number
SMS6PDH1
Product Length/Depth
58.8 mm
Product Height
21.5 mm
Product Width
18.6 mm
Product Weight
6.5 g
Environmental conditions
REACH RoHS Flammability rating UL94 V0
Backshell type
Strain Relief
Connector accessory option
Integrated with connector
Connector type
Plug
Contact delivery
Not delivered
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP30
Layout
6
Plug type
Straight Plug
Shell material
Plastic
Operating temperature - max
125 °C
Operating temperature - min
-55 °C
Number Of Contacts
6
Number of cavity #16
6
Push-pull coupling with quick mating reduces assembly time and mating errors, delivering measurable gains in uptime and throughput. In automated lines, faster connector engagement minimizes machine idle time and improves start-up reliability, supporting lean manufacturing goals. Six-position straight plug layout simplifies harness routing and reduces part variety, enabling cleaner cable harnesses and easier field maintenance. This is especially valuable in conveyors and robotics where space is tight and cable management drives overall reliability. Integrated strain relief shields the cable against flexing and stress, lowering repair costs and extending service life in vibration-heavy environments. It also helps protect conductor terminations from pull-out, ensuring consistent electrical performance across shifts. IP30 protection with RoHS/REACH compliance and UL94 V0 flame rating ensures safe operation and regulatory alignment across global facilities. This reduces compliance overhead and supports supplier diversity in multinational projects. Operating temperature range from -55 to 125 °C and a plastic shell allow dependable operation in extreme climates and industrial settings, lowering the need for heavier housings or guards. The result is lower total cost of ownership and easier long-term maintenance.
