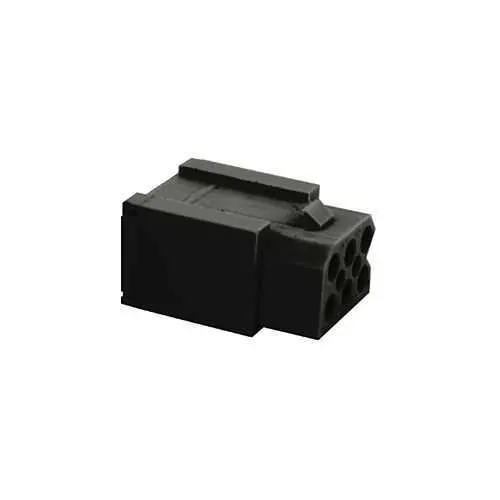

Eaton SMS6R1 Quick Mating Plastic Connector - IP30
Part Number: SMS6R1
Quick Summary
SMS6R1 is a quick-mating plastic rectangular connector designed for panel-mounted applications in automation and wiring harness assemblies. Design challenges like limited space and vibration-induced mating issues are common in control panels, and users need reliable connections to avoid downtime. This Souriau SMS series part is RoHS and REACH compliant, with UL94 V0 flammability rating and IP30 protection to safeguard electronics in moderate industrial environments. Its lightweight 3.7 g body, compact 25 mm length, and front-mount panel receptacle design help reduce controller enclosure size while speeding assembly. By delivering robust crimp contacts and a push-pull coupling, SMS6R1 supports repeatable, field-serviceable connections that lower total cost of ownership.
Product Information
Extended Description
SMS6R1 Eaton: Panel mount receptacle; SMS6R1
Product Name
Eaton Souriau SMS series quick mating plastic rectangular connector
Catalog Number
SMS6R1
Product Length/Depth
25 mm
Product Height
20.3 mm
Product Width
16.2 mm
Product Weight
3.7 g
Environmental conditions
REACH RoHS Flammability rating UL94 V0
Connector accessory option
No backshell possibility
Connector type
Receptacle
Contact delivery
Not delivered
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP30
Layout
6
Shell material
Plastic
Operating temperature - max
125 °C
Operating temperature - min
-55 °C
Receptacle type
Front Mount Panel
Number Of Contacts
6
Number of cavity #16
6
Push-Pull coupling delivers quick mating and secure retention, reducing assembly time and operator fatigue in high-volume automation environments. It also minimizes wear on contacts and improves uptime in robotic cells and conveyor controls. Six-position, six-contact arrangement (6 cavities) supports multiple signals in a compact footprint, simplifying wiring harnesses, reducing routing complexity, and lowering wiring errors and service time during maintenance. The lightweight plastic shell with precise dimensions—25 mm long, 16.2 mm wide, 20.3 mm high—contributes to smaller enclosures and lighter assemblies, offering tangible space and weight savings for control panels and machine subassemblies. Front-mount panel receptacle design and crimp contact delivery streamline installation, while the absence of a backshell option reduces part count and installation steps. The SMS6R1 also stands up to industrial use with IP30 protection and a wide operating temperature range of -55 °C to 125 °C, maintaining reliability in harsh environments. Compliance with RoHS and REACH, plus UL94 V0 flammability rating, provides regulatory peace of mind and supports formal safety programs in manufacturing and automation settings. These characteristics make the SMS6R1 a compatible choice for Souriau SMS series ecosystems, enabling faster field servicing, easier cable management, and scalable connections for multi-axis controllers, PLCs, and distributed I/O in rugged automation environments.
