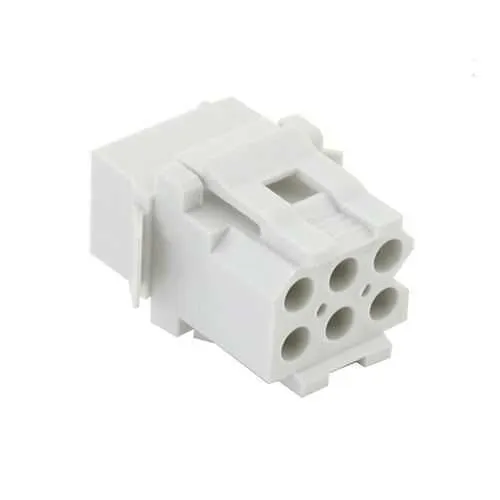

Eaton SMS6R3 Quick-Mating Plastic Connector - IP40
Part Number: SMS6R3
Quick Summary
SMS6R3 is a quick-mating plastic rectangular connector used in panel-mounted automation assemblies. Engineers often struggle with compact space, reliable mating, and regulatory compliance in harsh environments. This SMS family supports RoHS, REACH, and UL94 V0 flame retardant standards, helping ensure safety and sustainability. The solution also delivers a compact 6-position layout and front-mount panel integration, reducing wiring complexity and installation costly delays. For design and procurement teams, SMS6R3 offers a reliable, lightweight solution that integrates seamlessly with crimp contact harnesses and push-pull coupling, delivering measurable efficiency in control panels and machinery wiring.
Product Information
Extended Description
SMS6R3 Eaton: Flame retardant panel mount receptacle; SMS6R3
Product Name
Eaton Souriau SMS series quick mating plastic rectangular connector
Catalog Number
SMS6R3
Product Length/Depth
25 mm
Product Height
20.3 mm
Product Width
16.2 mm
Product Weight
3.8 g
Environmental conditions
RoHS Fire & Smoke Flammability rating UL94 V0 REACH
Connector accessory option
No backshell possibility
Connector type
Receptacle
Contact delivery
Not delivered
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP40
Layout
6
Shell material
Plastic
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Front Mount Panel
Number Of Contacts
6
Number of cavity #16
6
Feature: Six-position front-mount panel receptacle enables dense wiring and consistent harness routing. Benefit: Improves space utilization and reduces panel footprint, accelerating panel builds in automation cells. Application: Ideal for compact control panels and machine interfaces where wiring density matters. Feature: Push-Pull coupling with crimp contact delivery provides secure mating and quick serviceability. Benefit: Minimizes mis-mating risk and speeds field maintenance, lowering downtime. Application: Preferred in robotic and conveyor system junctions where fast connect/disconnect is valuable. Feature: Operating temperature range -40 °C to 105 °C ensures performance in harsh environments. Benefit: Maintains electrical integrity across variable industrial conditions, supporting durability in automotive, packaging, and process lines. Application: Suitable for machinery exposed to thermal cycling. Feature: IP40 protection plus flame-retardant plastic shell meets safety and ingress expectations. Benefit: Reduces risk of contamination and fire-related failures while simplifying compliance. Application: Panel-mounted interfaces in factory automation, where controlled exposure is typical. Feature: RoHS and REACH compliance with UL94 V0 rating provides regulatory alignment. Benefit: Streamlines supplier onboarding and minimizes regulatory risk across regions. Application: Critical for global machine builders and end-users with strict environmental controls. Feature: 25 mm length, 16.2 mm width, 20.3 mm height with 3.8 g weight yields a lightweight, compact footprint. Benefit: Simplifies harness design and reduces overall assembly weight, contributing to energy efficiency and cost savings. Application: Fine-tuned for space-constrained control panels and lightweight equipment where weight matters.
