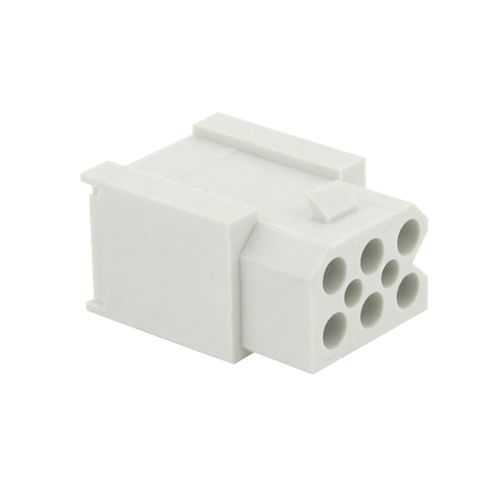

Eaton SMS6RD3 Receptacle - Push-Pull IP40 Plastic Connector
Part Number: SMS6RD3
Quick Summary
Eaton SMS6RD3 receptacle is a quick-mating plastic rectangular connector for fast, reliable panel-to-cable interconnections in control cabinets. Engineers often contend with slow mating cycles, misalignment, and cramped installation spaces that inflate project timelines. The design delivers IP40 protection with UL94 V0 flame rating and RoHS/REACH compliance, supporting safe and sustainable deployments. As part of the Souriau SMS series, this six-position, lightweight receptacle reduces assembly time while maintaining signal integrity, making it a compelling choice for high-mix automation projects. For panel builders and integrators, it offers reliability and cost efficiency in harness management.
Product Information
Extended Description
SMS6RD3 Eaton: Flame retardant receptacle without strain relief hood; SMS6RD3
Product Name
Eaton Souriau SMS series quick mating plastic rectangular connector
Catalog Number
SMS6RD3
Product Length/Depth
32.9 mm
Product Height
13.4 mm
Product Width
18.6 mm
Product Weight
4.3 g
Environmental conditions
Fire & Smoke REACH Flammability rating UL94 V0 RoHS
Connector accessory option
No backshell possibility
Connector type
Receptacle
Contact delivery
Not delivered
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP40
Layout
6
Shell material
Plastic
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Free Hanging
Number Of Contacts
6
Number of cavity #16
6
Feature → Quick-mating with push-pull coupling enables fast, secure connections, reducing field installation time and rework in control cabinets. This translates to tangible productivity gains during harness assembly and cabinet wiring, particularly in high-mix automation environments. Feature → Compact, lightweight plastic shell (32.9 mm L × 18.6 mm W × 13.4 mm H; 4.3 g) improves cable routing and enclosure density, allowing more efficient use of panel space and easier access in tight installations. Feature → Six-position crimp contacts provide robust signal paths for multi-line harnesses, simplifying inventory and ensuring consistent contact performance across assemblies used in servo drives and I/O modules. Feature → IP40 protection with UL94 V0, RoHS, and REACH compliance delivers safety and regulatory confidence for industrial environments, reducing risk during audits and customer approvals. Feature → Free-hanging receptacle with no backshell option streamlines integration in vertical or overhead wiring, minimizing parts and simplifying field termination. Feature → Wide operating temperature range (-40 °C to 105 °C) supports reliability in harsh environments, extending service intervals and lowering maintenance costs. Feature → The six-contact layout (6 cavities) aligns with common automation wiring schemes, enabling quick migration from legacy connectors without redesigning harnesses, reducing engineering time and inventory overhead.
