Eaton SMS6RDH1 Quick Mating Plastic Connector - IP30
Part Number: SMS6RDH1
Quick Summary
The Eaton SMS6RDH1 is a quick mating plastic rectangular connector for robust cable assemblies in industrial automation. Engineers often struggle with space constraints and secure mating under vibration or temperature swings. It carries RoHS and REACH compliance with UL94 V0 flammability and IP30 protection. As part of the Souriau SMS series, the 6-contact receptacle enables fast, crimped connections with integrated strain relief for reliable field installation. This design supports compatibility with Eaton Souriau components and simplifies maintenance in panel builders and OEM environments, while its compact footprint and push-pull coupling reduce wiring time and spare parts costs. Operating temperature range of -55°C to 125°C ensures performance in harsh environments.
Product Information
Extended Description

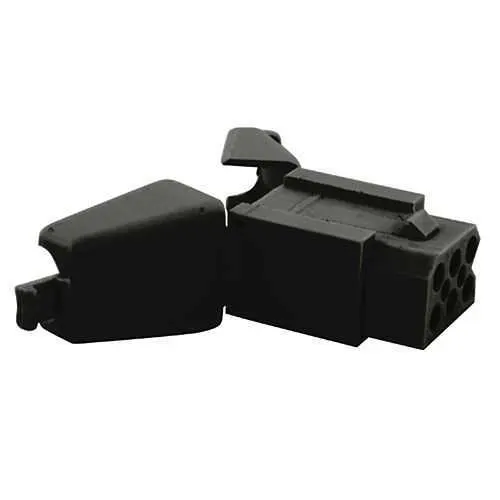

SMS6RDH1 Eaton: Cable receptacle with integrated strain relief hood; SMS6RDH1
Product Name
Eaton Souriau SMS series quick mating plastic rectangular connector
Catalog Number
SMS6RDH1
Product Length/Depth
50.9 mm
Product Height
15 mm
Product Width
16.2 mm
Product Weight
5.2 g
Environmental conditions
REACH RoHS Flammability rating UL94 V0
Backshell type
Strain Relief
Connector accessory option
Integrated with connector
Connector type
Receptacle
Contact delivery
Not delivered
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP30
Layout
6
Shell material
Plastic
Operating temperature - max
125 °C
Operating temperature - min
-55 °C
Receptacle type
Free Hanging
Number Of Contacts
6
Number of cavity #16
6
Feature: The SMS6RDH1 offers a compact 50.9 mm length, 16.2 mm width, and 15 mm height in a durable plastic shell. Business Impact: This tight footprint simplifies harness routing and enables dense panel layouts, reducing enclosure size and material costs. Application: Suitable for machine builders and control cabinets where space is at a premium and reliable six-way connections are required.
