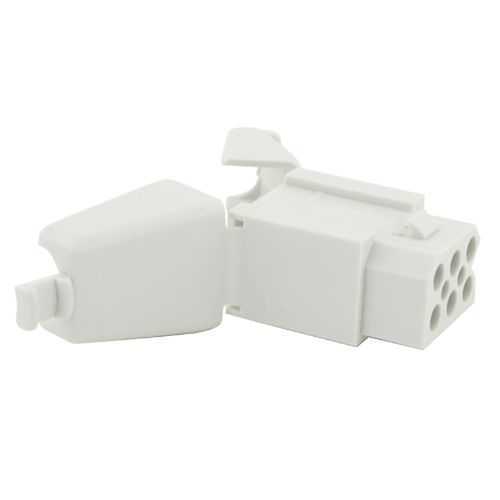

Eaton SMS6RDH3 Receptacle Connector Quick Mating - IP40
Part Number: SMS6RDH3
Quick Summary
Eaton SMS6RDH3 Receptacle is a quick-mating plastic rectangular connector for automation panels. It reduces assembly time and mating errors in control cabinets by combining a compact 6-position layout with an integrated strain-relief hood. The design supports harsh industrial environments, backed by UL94 V0 flame rating and RoHS/REACH compliance, while maintaining safety and sustainability. The IP40 ingress protection offers reliable operation with standard panel enclosures in moderate dust conditions, and the Push-Pull coupling enables faster, tool-free mating. With a lightweight plastic shell and crimp contact delivery, this connector delivers robust connectivity at a lower installed cost, minimizing downtime and improving field maintenance in machine automation.
Product Information
Extended Description
SMS6RDH3 Eaton: Flame retardant receptacle with integrated strain relief hood; SMS6RDH3
Product Name
Eaton Souriau SMS series quick mating plastic rectangular connector
Catalog Number
SMS6RDH3
Product Length/Depth
50.9 mm
Product Height
15 mm
Product Width
16.2 mm
Product Weight
5.2 g
Environmental conditions
Flammability rating UL94 V0 RoHS REACH Fire & Smoke
Backshell type
Strain Relief
Connector accessory option
Integrated with connector
Connector type
Receptacle
Contact delivery
Not delivered
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP40
Layout
6
Shell material
Plastic
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Free Hanging
Number Of Contacts
6
Number of cavity #16
6
Feature → Business Impact → Application: The SMS6RDH3 uses a 6-position layout with a 50.9 mm length, 16.2 mm width, and 15 mm height, weighing 5.2 g, delivering a compact footprint that saves space in crowded control panels and reduces panel depth. This translates to quicker panel wiring and easier field upgrades in modular automation systems, especially when used with the Souriau SMS series. Application: control cabinets, machine enclosures, and robotic cells that demand lightweight, space-efficient connectivity with reliable 6-crimp contacts and a free-hanging receptacle design. The Push-Pull coupling accelerates mating, improves repeatability, and lowers installation time compared to threaded or latch-based interfaces, while the integrated strain relief hood reduces cable stress and potential failure points, ultimately lowering maintenance costs across the lifecycle. Feature → Business Impact → Application: The plastic shell and UL94 V0 flame rating, combined with RoHS and REACH compliance, provide material safety and regulatory alignment for restricted environments. Application: industries requiring flame retardant, environmentally compliant connectors for safety-critical equipment, such as packaging and material handling lines. Feature → Business Impact → Application: IP40 protection and a free-hanging receptacle type offer flexible mounting options and predictable performance in moderate dust and dry environments, enabling rapid field deployment in temporary installations or expanding automation footprints. Application: modular automation projects and machine upgrades where speed and reliability matter. Feature → Business Impact → Application: 6-contact, crimp delivery with a backshell strain-relief configuration supports robust cable management and ease of termination, delivering consistent contact reliability and reduced risk of loose connections in vibratory environments. Application: panel-to-cable junctions in conveyors and pick-and-place systems.
