Eaton SMS6RE4TR29 Quick Mating Plastic Connector - IP30
Part Number: SMS6RE4TR29
Quick Summary
Eaton SMS6RE4TR29 is a quick mating plastic rectangular connector for PCB-to-board and panel interface in automation cabinets. Engineers often grapple with bulky, hard-to-mount connectors that slow assembly and drive rework costs. It aligns with IP30 protection, UL94 V0 flame ratings, and REACH compliance, helping safety and regulatory goals in harsh environments. With front-mount panel receptacle design and a six-position layout, it simplifies installation and reduces field service time. This compact, lightweight solution scales from small control panels to larger automation racks, supporting faster time-to-value and lower total cost of ownership.
Product Information
Extended Description

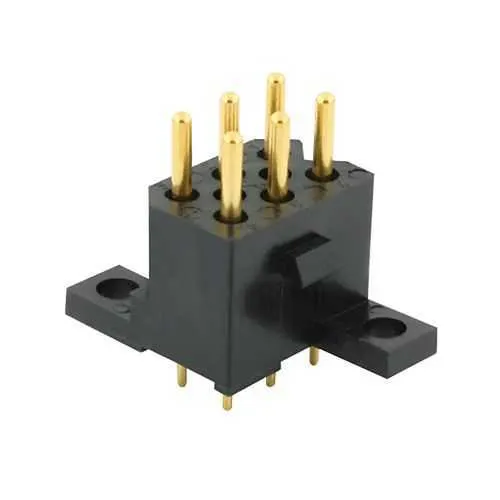

SMS6RE4TR29 Eaton: Straight boardmount with long PCB male contacts (Gold & Tin plating); SMS6RE4TR29
Product Name
Eaton Souriau SMS series quick mating plastic rectangular connector
Catalog Number
SMS6RE4TR29
Product Length/Depth
13.4 mm
Product Height
16.2 mm
Product Width
10.9 mm
Product Weight
5.1 g
Environmental conditions
Flammability rating UL94 V0 REACH
Connector accessory option
No backshell possibility
Connector type
Receptacle
Contact delivery
Loaded
Contact plating
Tin pre plated
Contact type
PCB
Coupling type
Push-Pull
Degree of protection
IP30
Layout
6
Shell material
Plastic
Operating temperature - max
125 °C
Operating temperature - min
-55 °C
Receptacle type
Front Mount Panel
Number Of Contacts
6
Number of cavity #16
6
Feature: Six-position front-mount panel receptacle with six PCB contacts. Benefit: Reduces panel cutouts and mounting hardware while delivering a compact footprint for tight control cabinets. Application: Ideal for space-constrained automation enclosures where reliable signal paths are required. Feature: Push-Pull coupling for fast, secure mating. Benefit: Speeds assembly and minimizes vibration-related disconnects, boosting throughput on high-mix production lines. Application: Used in automated machinery and robotics where quick field servicing is crucial. Feature: IP30 protection and Tin pre-plated PCB contacts. Benefit: Meets general enclosure standards while ensuring durable electrical performance in indoor environments. Application: Suitable for control panels and equipment in non-hazardous spaces. Feature: Receptacle type with Front Mount Panel compatibility. Benefit: Simplifies installation and serviceability by enabling straightforward panel integration and quick replacement. Application: Common in panel-mounted interfaces across automation equipment. Feature: Operating range −55 °C to 125 °C. Benefit: Delivers reliable performance in extreme temperatures, reducing the risk of electrical failure in harsh environments. Application: Suitable for outdoor or industrial settings with wide temperature fluctuations. Feature: No backshell accessory option. Benefit: Keeps BOM simple and cost-effective while maintaining a compact design. Application: Best when additional protection is provided by the enclosure rather than an external backshell.
