Eaton SMS6SE3T Plastic Rectangular Connector - IP30
Part Number: SMS6SE3T
Quick Summary
SMS6SE3T is a high-density plastic rectangular connector designed for quick mating on PCB-to-panel interconnects in industrial automation. Engineers often struggle with tight spaces and slow assembly when selecting subminiature interconnects, leading to downtime. It provides IP30 protection, a UL94 V0 flammability rating, and REACH compliance, helping meet safety and environmental standards. By combining front-mount receptacle with push-pull coupling and tin-plated PCB contacts, it delivers reliable performance with minimal labor and upfront costs. Its compact six-cavity layout and lightweight form factor support dense board designs, delivering value for machine builders and systems integrators.
Product Information
Extended Description

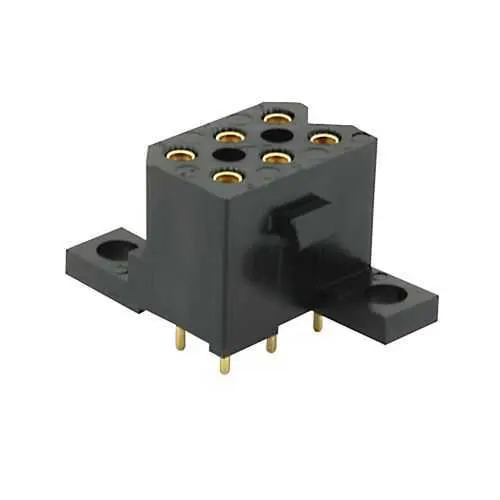

SMS6SE3T Eaton: Straight boardmount with short PCB female contacts (Tin plating); SMS6SE3T
Product Name
Eaton Souriau SMS series quick mating plastic rectangular connector
Catalog Number
SMS6SE3T
Product Length/Depth
13.4 mm
Product Height
16.2 mm
Product Width
10.9 mm
Product Weight
4.7 g
Environmental conditions
REACH Flammability rating UL94 V0
Connector accessory option
No backshell possibility
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Tin pre plated
Contact type
PCB
Coupling type
Push-Pull
Degree of protection
IP30
Layout
6
Shell material
Plastic
Operating temperature - max
125 °C
Operating temperature - min
-55 °C
Receptacle type
Front Mount Panel
Number Of Contacts
6
Number of cavity #16
6
Feature: Six-position front-mount receptacle design enables compact layouts and dense board mounting. Business Impact: Improves real-estate efficiency, reduces panel depth, and lowers enclosure costs. Application: Ideal for automation controllers, PLC I/O modules, and tight robotic panels. Feature: Push-Pull coupling for quick mating. Business Impact: Speeds assembly, reduces misalignment risk, and improves field reliability. Application: Assembly lines, machine tooling, and serviceable control panels. Feature: Tin pre-plated PCB contacts. Business Impact: Enhances corrosion resistance and signal longevity in harsh environments. Application: Industrial interconnects with frequent cycling. Feature: Lightweight plastic shell. Business Impact: Reduces weight and shipping costs while enabling easier handling. Application: Portable machinery and space-constrained installations. Feature: IP30 rating and -55 to 125 °C operating range. Business Impact: Ensures operation in dusty environments and extreme temperatures. Application: Heavy industry controllers, conveyors, and packaging equipment. Feature: No backshell option. Business Impact: Lowers total cost and simplifies installation where backshells are unnecessary. Application: Systems requiring minimal accessory complexity.
