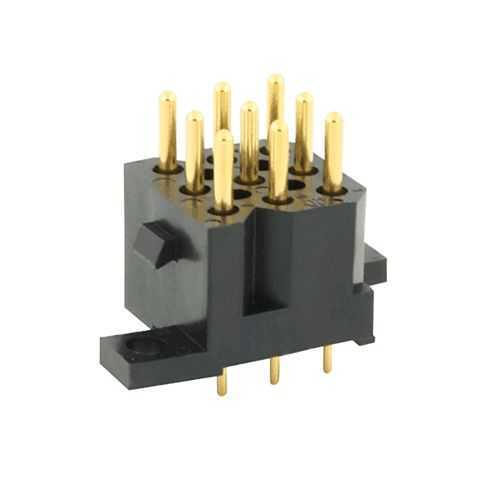

Eaton SMS9GE4 Quick Mating Plastic Rectangular Connector - IP30
Part Number: SMS9GE4
Quick Summary
Eaton SMS9GE4 is a quick-mating plastic rectangular connector for PCB-mounted I/O in compact automation modules. Many designs suffer from slow assembly and misalignment during field installs, costing downtime and precision issues. This connector delivers UL94 V0 flame rating, RoHS and REACH compliance, plus IP30 protection for controlled environments. Its straight boardmount with male PCB contacts and 9-position layout supports reliable, fast mating in tight spaces, reducing assembly time and field rework. By leveraging the Souriau SMS series design, engineers gain a durable solution with straightforward integration into existing panels and systems and scalable for future upgrades and serviceability in demanding industrial environments.
Product Information
Extended Description
SMS9GE4 Eaton: Straight boardmount with male PCB contacts; SMS9GE4
Product Name
Eaton Souriau SMS series quick mating plastic rectangular connector
Catalog Number
SMS9GE4
Product Length/Depth
13.4 mm
Product Height
16.2 mm
Product Width
16 mm
Product Weight
8.9 g
Environmental conditions
RoHS Flammability rating UL94 V0 REACH
Connector accessory option
No backshell possibility
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
PCB
Coupling type
Push-Pull
Degree of protection
IP30
Layout
9
Shell material
Plastic
Operating temperature - max
125 °C
Operating temperature - min
-55 °C
Receptacle type
Front Mount Panel
Number Of Contacts
9
Number of cavity #16
9
9-position, gold-plated PCB contacts deliver high reliability, improving signal integrity and resistance to wear in dense assemblies. This reduces field failures and maintenance costs, especially in high-cycle automation stations where contact performance matters. It supports 9-channel I/O on compact boards, enabling clean routing and predictable mating cycles. Push-Pull coupling and a front-mount panel receptacle streamline installation and serviceability. The quick mating action minimizes assembly time and mitigates mis-mating risks in crowded control panels. The receptacle design also facilitates easier field swaps with minimal tool requirements, boosting uptime in critical automation lines. IP30 protection combined with UL94 V0 flame rating, RoHS and REACH compliance helps you meet industry safety and environmental standards. That means you can deploy the SMS9GE4 in control cabinets and machine enclosures with confidence. The plastic shell keeps weight down while maintaining robust mating performance in typical factory environments. Operating temperature from -55 °C to 125 °C ensures reliable operation across cold starts and warm-running equipment. Coupled with 9-position configuration and gold contacts, the connector maintains signal integrity in heat and vibration. This makes it a practical choice for automotive-style machine tools and energy systems in automation. Compact footprint—13.4 mm length, 16 mm width, 16.2 mm height—plus a weight of about 8.9 g, supports dense board layouts and lightweight panel assemblies. The straight boardmount with male PCB contacts aligns with standard manufacturing processes for efficient automation builds. Selecting this SMS series device simplifies part proliferation and reduces BOM complexity. Connector accessory option notes 'No backshell possibility' may influence enclosure design, but the simplified interface lowers total installed cost. With 9 contacts and a front-mount receptacle, routing and cabling remain straightforward, improving traceability and serviceability during upgrades.
Get a Quick Quote for a Eaton SMS9GE4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SMS9GE4?
Enquire Now
FAQs
SMS9GE4 features straight boardmount with male PCB contacts and a 9-position layout. To install, align the connector with the PCB footprint, insert the contacts fully, and secure the housing as required. Verify cleanliness of contacts, then mate the connector with proper alignment, ensuring smooth engagement and reliable electrical connection.
Key specs include 9 cavities with gold-plated PCB contacts, 13.4 mm depth, 16.2 mm height, and 16 mm width. It is IP30 rated and operates from -55 °C to 125 °C. The connector is a front-mount panel receptacle with a push-pull coupling, and each unit arrives loaded with contacts for immediate use.
Yes. The IP30 protection level, UL94 V0 flame rating, and RoHS/REACH compliance make it appropriate for control cabinets and typical industrial environments. Its plastic shell keeps weight down while delivering reliable mating performance, even in spaces with moderate exposure to dust or vibration.
SMS9GE4 meets UL94 V0 for flame resistance and complies with RoHS and REACH environmental standards. It also features IP30 protection, making it suitable for indoor, controlled-environment applications and helping you meet broad safety and environmental requirements in automation projects.
The quick-mating design reduces assembly time and minimizes mis-mating, cutting installation labor costs. Gold-plated contacts offer durable performance, lowering maintenance frequency, while the compact 9-position I/O layout simplifies wiring and BOM management—delivering faster deployment and improved uptime in automated systems.
