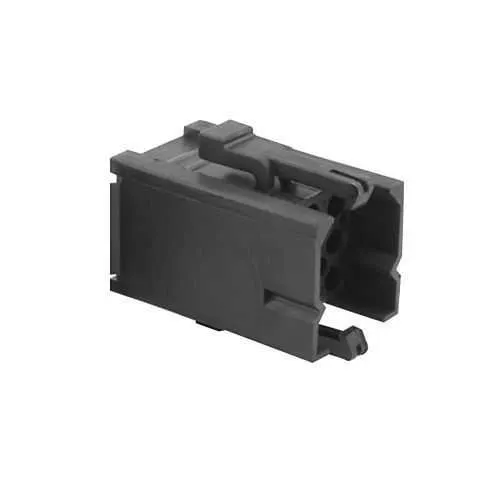

Eaton SMS9P1 Quick Mating Plastic Connector - IP30
Part Number: SMS9P1
Quick Summary
Eaton SMS9P1 quick mating plastic rectangular connector enables reliable harness-to-device connections in rugged industrial control panels. Design engineers often struggle with misalignment during mating and cable stress; this plug’s push-pull coupling and compact profile streamline installation and reduce field rework. It meets IP30 protection and UL94 V0 flammability with RoHS and REACH compliance, helping you pass safety audits and regulatory reviews. By combining a 9-position layout with a lightweight 6.1 g shell, it delivers cost-efficient inventory and faster changeouts for high-volume automation projects. This makes SMS9P1 a practical choice for panel builders seeking reliable, scalable connector solutions across robotics, packaging, and process automation.
Product Information
Extended Description
SMS9P1 Eaton: Cable plug without strain relief hood; SMS9P1
Product Name
Eaton Souriau SMS series quick mating plastic rectangular connector
Catalog Number
SMS9P1
Product Length/Depth
32.9 mm
Product Height
27.9 mm
Product Width
18.6 mm
Product Weight
6.1 g
Environmental conditions
Flammability rating UL94 V0 RoHS REACH
Connector accessory option
No backshell possibility
Connector type
Plug
Contact delivery
Not delivered
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP30
Layout
9
Plug type
Straight Plug
Shell material
Plastic
Operating temperature - max
125 °C
Operating temperature - min
-55 °C
Number Of Contacts
9
Number of cavity #16
9
Feature: 9-position layout with push-pull coupling. Business impact: simplifies mating, minimizes misalignment risk, and speeds up field service, leading to lower commissioning time and reduced downtime. Application: control panels, robotics, and automation booths where dense harnesses demand reliable, fast connections. Feature: Crimp contacts and straight plug in a lightweight plastic shell. Business impact: reduces termination labor, enables quicker field replacements, and lowers total installed cost with a 6.1 g shell. Application: machine builders needing compact, high-contact-density solutions. Feature: UL94 V0 flammability, RoHS, and REACH compliance. Business impact: supports regulatory compliance and safer product stewardship across global deployments. Application: equipment for regulated environments and cross-border manufacturing. Feature: No backshell possibility with defined dimensions and IP30 protection. Business impact: simplifies procurement and reduces parts count, improving inventory management. Application: space-constrained installations inside control cabinets and panel interfaces. Feature: 9-contact, straight plug, plastic shell, and push-pull coupling synergy. Business impact: accelerates assembly, reduces space, and enhances reliability in high-vibration settings. Application: automation lines, packaging machinery, and conveyor systems.
