Eaton SMS9PDH3 Plastic Rectangular Connector - UL94 V0
Part Number: SMS9PDH3
Quick Summary
Eaton SMS9PDH3 is a quick-mating plastic rectangular connector for compact control panel wiring. Engineers often struggle with secure mating in tight spaces and vibration, which can lead to intermittent connections. Key certifications include UL94 V0 flame rating, RoHS and REACH compliance, and IP40 protection for indoor electrical assemblies. Designed for fast, reliable installations with an integrated strain relief hood and crimp contacts, it delivers durable performance in automation environments while keeping cable management tidy and reducing field service time. Its 9-position layout supports compact harness design, while the 60.1 mm length and 8.8 g weight minimize space impact in panel doors and machine tops, helping machine builders meet tight installation envelopes without compromising reliability.
Product Information
Extended Description

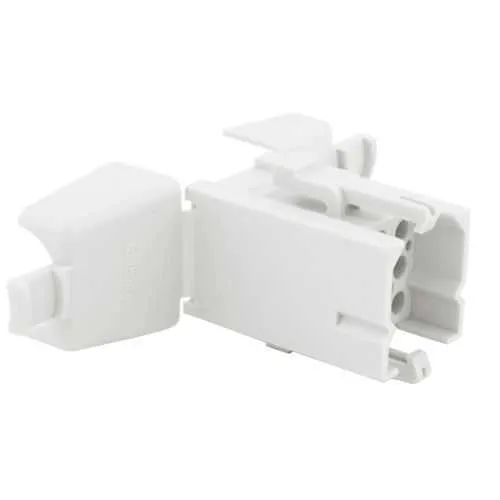

SMS9PDH3 Eaton: Flame retardant plug with integrated strain relief hood; SMS9PDH3
Product Name
Eaton Souriau SMS series quick mating plastic rectangular connector
Catalog Number
SMS9PDH3
Product Length/Depth
60.1 mm
Product Height
26.7 mm
Product Width
18.6 mm
Product Weight
8.8 g
Environmental conditions
REACH RoHS Fire & Smoke Flammability rating UL94 V0
Backshell type
Strain Relief
Connector accessory option
Integrated with connector
Connector type
Plug
Contact delivery
Not delivered
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP40
Layout
9
Plug type
Straight Plug
Shell material
Plastic
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
9
Number of cavity #16
9
Feature: Quick-mating push-pull coupling and 9-position layout. Benefit: Reduces assembly time and mating failures in busy production lines, improving deployment speed in automation projects. Application: Control panels and robotic assemblies where space is limited and uptime matters. Feature: Flame-retardant plastic shell with UL94 V0 rating, RoHS and REACH compliance. Benefit: Enhanced safety and regulatory compliance for indoor machinery racks and enclosures, lowering risk of non-compliance penalties. Application: Industrial equipment used in manufacturing cells and process lines. Feature: Integrated strain relief hood and backshell compatibility. Benefit: Safer cable termination with reduced installer effort, minimizing conductor damage during routing. Application: Harsh factory floors and CNC/machining centers where vibration is common. Feature: Crimp contact delivery and straight plug configuration. Benefit: Fast termination with reliable contact integrity and straightforward field servicing. Application: Field upgrades and harness assemblies needing repeatable, maintenance-friendly connections. Feature: IP40 protection and operating temperature range -40 °C to 105 °C. Benefit: Robust performance across typical factory environments and during seasonal temperature swings. Application: Indoor electrical interfaces in automation panels, conveyors, and packaging lines. Feature: Lightweight 8.8 g and compact dimensions (60.1 mm L × 26.7 mm H × 18.6 mm W). Benefit: Minimal space impact in dense installations while preserving electromechanical reliability. Application: Aerospace-grade panel layouts and space-constrained robotics where weight matters.
