Eaton SMS9PH3TR29 Rectangular Connector - IP30
Part Number: SMS9PH3TR29
Quick Summary
Eaton SMS9PH3TR29 is a quick-mating plastic rectangular connector for PCB mounting in rugged industrial assemblies. Engineers often grapple with secure mating in compact enclosures and the need for fast, reliable field replacement. This solution carries IP30 protection, UL94 V0 flame rating, and REACH compliance to support safe, durable operation in demanding environments. By delivering a compact 9‑position PCB header with a push-pull coupling and front-mount panel receptacle, it aligns with standard automation workflows while reducing assembly time and maintenance cost. For teams seeking reliable industrial connectors and streamlined PCB header ecosystems, this design offers tangible business value through improved uptime and easier serviceability.
Product Information
Extended Description

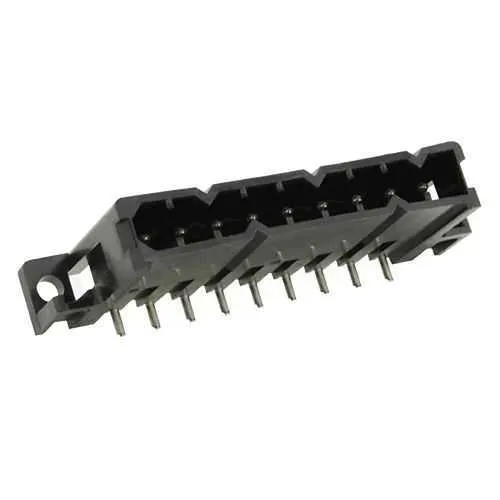

SMS9PH3TR29 Eaton: Right angle pin header boardmount with male contacts; SMS9PH3TR29
Product Name
Eaton Souriau SMS series quick mating plastic rectangular connector
Catalog Number
SMS9PH3TR29
Product Length/Depth
61.7 mm
Product Height
9.4 mm
Product Width
22.9 mm
Product Weight
25.3 g
Environmental conditions
Flammability rating UL94 V0 REACH
Connector accessory option
No backshell possibility
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Tin pre plated
Contact type
PCB
Coupling type
Push-Pull
Degree of protection
IP30
Layout
9
Shell material
Plastic
Operating temperature - max
125 °C
Operating temperature - min
-55 °C
Receptacle type
Front Mount Panel
Number Of Contacts
9
Number of cavity #16
9
Feature: 9 contacts in a compact 61.7 mm long header drives higher board density and fewer interconnect parts. Business Impact: Reduces enclosure footprint and assembly steps, cutting bill-of-materials and labor costs. Application: Front-m Mount Panel or PCB-to-panel wiring in compact automation cabinets. Feature: Right-angle PCB mount with male contacts enables low-profile installation in tight spaces. Business Impact: Improves fit in crowded control panels and minimizes cable length, lowering failure points. Application: Machine builders and control panels with space constraints. Feature: Push-Pull coupling provides quick mating with secure retention. Business Impact: Faster field service and reduced risk of incomplete mating during maintenance. Application: Reconfigurable automation lines and service-heavy equipment. Feature: Tin pre-plated contacts and 9-position layout support reliable soldering and long-term corrosion resistance. Business Impact: Enhances contact reliability and longevity, lowering maintenance intervals. Application: Industrial robotics, packaging, and process automation. Feature: Plastic shell with IP30 rating and -55 to 125 °C operating range ensures durability in harsh environments. Business Impact: Meets rugged automation requirements and maintains performance across temperature swings. Application: Food-and-beverage, automotive, and general industrial electronics. Feature: Front Mount Panel receptacle compatibility and 61.7 mm depth with 22.9 mm width and 9.4 mm height optimize enclosure accessibility. Business Impact: Streamlines integration with standard panel cutouts and improves serviceability. Application: Control cabinets and motor drives where space is at a premium.
Get a Quick Quote for a Eaton SMS9PH3TR29
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SMS9PH3TR29?
Enquire Now
FAQs
SMS9PH3TR29 is a front-mount, 9-position receptacle designed for PCB-to-panel interconnects. Its 61.7 mm depth and 22.9 mm width fit standard panel cutouts, and its right-angle boardmount with male contacts is compatible with compatible 9-position headers from the same family, enabling compact, reliable assemblies.
The connector supports a broad industrial range from -55 °C to 125 °C and carries IP30 protection. It uses tin pre-plated contacts and conforms to UL94 V0 flammability standards, with REACH compliance to address environmental and safety requirements in automation environments.
Install begins with ensuring a compatible front-mount panel cutout. Insert the 9-pin male contacts into the PCB header, then mate the plug from the front panel using the Push-Pull coupling for a secure connection. Verify contact seating and test continuity before powering the control system to minimize downtime.
Yes, the Push-Pull coupling provides reliable retention during vibration, and the rugged plastic shell plus tin-plated contacts improve mating integrity over time. For high-dynamic environments, ensure proper strain relief and grommeting to further enhance resilience.
Plan for periodic inspection of the front-mount panel receptacle and mating surfaces, especially in harsh environments. The tin pre-plated contacts offer good corrosion resistance, and the compact, 9-position design simplifies future replacements or reconfigurations without large redesigns of the PCB or enclosure.
