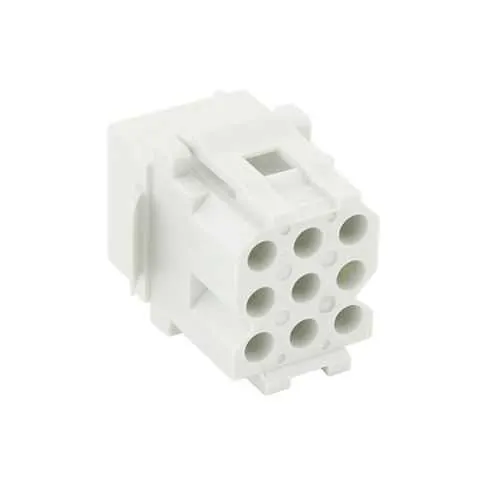

Eaton SMS9R3 Receptacle - Front Mount Panel IP40
Part Number: SMS9R3
Quick Summary
SMS9R3 is a quick-mating plastic rectangular connector for panel-mounted interconnects in control cabinets. Engineers face mating reliability issues and cramped spaces in tight control panel environments. It meets IP40 protection, UL94 V0 flame retardancy, and RoHS compliance, supporting safety and regulatory requirements. As part of the Souriau SMS series, this front-mount receptacle with crimp contacts delivers reliable, efficient assemblies, reducing labor time and improving traceability in industrial automation projects. The compact 25 mm length and nine-position layout support high-density panel layouts and faster field installation. This combination helps minimize panel footprint, reduces wiring complexity, and lowers total cost of ownership.
Product Information
Extended Description
SMS9R3 Eaton: Flame retardant panel mount receptacle; SMS9R3
Product Name
Eaton Souriau SMS series quick mating plastic rectangular connector
Catalog Number
SMS9R3
Product Length/Depth
25 mm
Product Height
25.4 mm
Product Width
16.2 mm
Product Weight
5.2 g
Environmental conditions
REACH Fire & Smoke Flammability rating UL94 V0 RoHS
Connector accessory option
No backshell possibility
Connector type
Receptacle
Contact delivery
Not delivered
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP40
Layout
9
Shell material
Plastic
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Front Mount Panel
Number Of Contacts
9
Number of cavity #16
9
The SMS9R3 features a nine-position, 25 mm deep rectangular connector design that maximizes circuit density while minimizing panel footprint, enabling cleaner harness routing in crowded control cabinets. This translates to faster assembly, reduced risk of miswiring, and easier field maintenance in high-mix production lines. The push-pull coupling provides quick mating with consistent retention, lowering commissioning time and boosting uptime in automated systems. Its flame-retardant plastic shell, UL94 V0 rating, and RoHS compliance deliver safety and regulatory assurance across global deployments, supporting quality programs and reducing compliance-related rework. With a front-mount panel receptacle and crimp contacts, installation is straightforward and vibration-resistant, ideal for machines with frequent panel access or modular cabinet designs. The no-backshell option simplifies procurement and inventory management while still delivering robust protection, and the IP40 rating offers reliable basic ingress protection in indoor industrial environments. Operating from -40 °C to 105 °C, the SMS9R3 maintains performance in extreme conditions typical of manufacturing floors and outdoor enclosures. The compact 9-contact layout supports scalable interconnects for evolving machinery and allows consistent cross-model compatibility within the SMS family, which helps engineers standardize components across projects and reduce training time for technicians.
