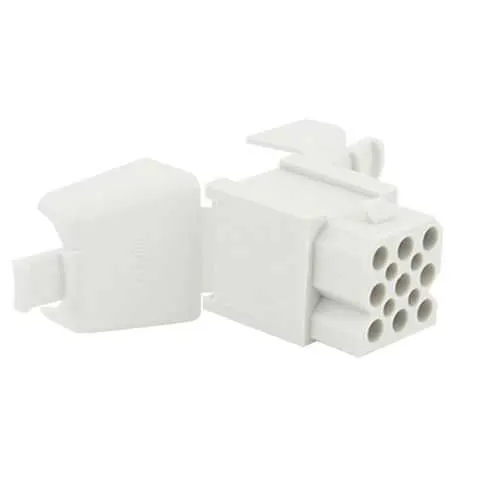

Eaton SMS9RDH3 Receptacle - Quick Mating Plastic IP40
Part Number: SMS9RDH3
Quick Summary
Eaton SMS9RDH3 receptacle is a quick-mating plastic connector for rugged industrial control panels. Engineers often struggle with cable strain and unreliable mating during field assembly in tight spaces. This design meets RoHS and REACH, and carries UL94 V0 flame rating for safety-critical environments. The 9-position layout with integrated strain relief reduces wiring errors while keeping the footprint compact for panel installations. With its free-hanging receptacle and push-pull coupling, it delivers dependable connectivity across harsh production lines and OEM harnesses.
Product Information
Extended Description
SMS9RDH3 Eaton: Flame retardant receptacle with integrated strain relief hood; SMS9RDH3
Product Name
Eaton Souriau SMS series quick mating plastic rectangular connector
Catalog Number
SMS9RDH3
Product Length/Depth
52.2 mm
Product Height
20 mm
Product Width
16.2 mm
Product Weight
6.6 g
Environmental conditions
RoHS Flammability rating UL94 V0 REACH Fire & Smoke
Backshell type
Strain Relief
Connector accessory option
Integrated with connector
Connector type
Receptacle
Contact delivery
Not delivered
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP40
Layout
9
Shell material
Plastic
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Free Hanging
Number Of Contacts
9
Number of cavity #16
9
Feature → Business Impact → Application: The SMS9RDH3 uses a 9-position receptacle with a push-pull coupling, which streamlines mating and reduces field assembly time on control panels. This directly improves manufacturing throughput while minimizing mis-mates in complex harnesses for automation systems like conveyors and robotic cells. Application: suitable for machine builders seeking faster wiring cycles and greater reliability in tight spaces. Feature → Business Impact → Application: The flame-retardant plastic shell meets UL94 V0 and RoHS/REACH compliance, which lowers risk of fire incidents and material restrictions. Application: ideal for safety-critical control enclosures and OEM hardware in harsh industrial environments. Feature → Business Impact → Application: Integrated strain relief hood protects crimp contacts and cables from mechanical stress, extending cable life and reducing maintenance costs. Application: beneficial for high-vibration equipment such as packaging lines and woodworking machinery. Feature → Business Impact → Application: Free hanging receptacle with IP40 protection provides rugged yet accessible connectivity for modular automation panels. Application: enhances field serviceability and upgrade paths for existing installations. Feature → Business Impact → Application: Lightweight 6.6 g shell and compact 52.2 mm length support dense harness layouts in confined enclosures. Application: suitable for compact control cabinets and OEM assemblies.
