Eaton SMS9SE3T Receptacle Connector - Quick Mating IP30
Part Number: SMS9SE3T
Quick Summary
SMS9SE3T is a receptacle connector from Eaton Souriau designed for quick mating on compact PCB interconnects used in control panels. It addresses field assembly challenges and downtime caused by slower mating methods, delivering a reliable connection with minimal fuss. The device features IP30 protection and strong regulatory compliance with UL94 V0 and REACH, helping you meet safety and environmental requirements in regulated environments. Integrated with a front-mount panel receptacle and nine PCB contacts, it enables efficient wiring, smaller enclosures, and cleaner install sequences. For procurement and engineering teams, the combination of push-pull coupling, tin-plated contacts, and a compact footprint translates into reduced install time and predictable performance across equipment lifecycles.
Product Information
Extended Description

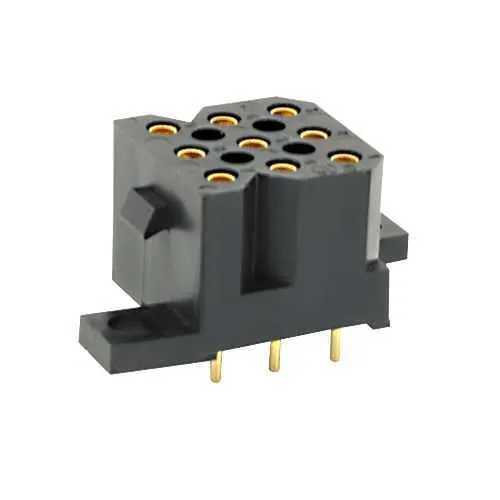

SMS9SE3T Eaton: Straight boardmount with short PCB female contacts (Tin plating); SMS9SE3T
Product Name
Eaton Souriau SMS series quick mating plastic rectangular connector
Catalog Number
SMS9SE3T
Product Length/Depth
13.4 mm
Product Height
16.2 mm
Product Width
16 mm
Product Weight
6.2 g
Environmental conditions
Flammability rating UL94 V0 REACH
Connector accessory option
No backshell possibility
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Tin pre plated
Contact type
PCB
Coupling type
Push-Pull
Degree of protection
IP30
Layout
9
Shell material
Plastic
Operating temperature - max
125 °C
Operating temperature - min
-55 °C
Receptacle type
Front Mount Panel
Number Of Contacts
9
Number of cavity #16
9
Push-Pull coupling enables fast, tool-free mating and unmating, reducing labor and error during panel wiring and field servicing. This translates to shorter down times on production lines and easier maintenance planning for automation systems in control cabinets. The 9-position layout supports high-density interconnects, allowing compact PCB assemblies without compromising signal integrity or load capacity. Front Mount Panel receptacle design simplifies installation, reduces chassis cutouts, and facilitates cleaner enclosures with consistent alignment and robust mechanical stability. Tin pre-plated contacts improve solderability and long-term corrosion resistance, boosting reliability in industrial environments and minimizing rework due to contact deterioration. The IP30 enclosure rating, UL94 V0 flammability rating, and REACH compliance provide clear regulatory alignment, easing procurement audits and customer qualification. This SMS series part benefits from compatibility across Souriau SMS tooling ecosystems, ensuring predictable performance and easier sourcing in supply chains for panel builders and OEMs.
