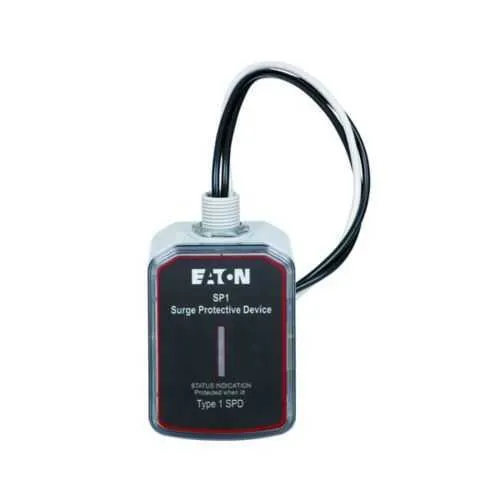

Eaton SP1-240S Surge Protective Device - UL 1449 Certified
Part Number: SP1-240S
Quick Summary
The Eaton SP1-240S surge protective device protects critical electrical infrastructure in industrial automation panels from transient surges. Power quality events cause costly downtime, damaged components, and unpredictable equipment performance on automation lines. UL 1449 listed protection, combined with its 120/240 V split-phase rating and compact form, helps ensure reliability and compliance. In procurement conversations, its 2-year warranty and Eaton's rugged, industrial-grade design support fast deployment and long-term cost savings. For panel builders and OEM integrators, this SPD offers straightforward installation, predictable maintenance, and a clear path to compliant, resilient electrical protection across modern automation architectures. Its compact footprint simplifies retrofits in crowded panels and supports scalable protection as systems expand.
Product Information
Extended Description
SP1-240S Eaton: Eaton Surge Protection Device, SP1 series, 50 kAIC, 120/240V, 300 L-L, 150 L-N operating voltage, Split single-phase
Product Name
Eaton SP1 surge protective device
Catalog Number
SP1-240S
UPC
786685448329
Product Length/Depth
2.5 in
Product Height
4.8 in
Product Width
2.9 in
Product Weight
1.25 lb
Warranty
2 year
Certifications
UL 1449
Voltage rating
120/240 V
Phase
Split-phase
Type
SP1
Feature: 50 kAIC surge capacity provides rugged protection against high-energy transients. Business Impact: This translates to fewer nuisance trips and less damage to PLCs, servo drives, and I/O modules. Application: Ideal for control panels, machine bays, and automation cabinets that experience grid or switching transients. Feature: 120/240 V split-phase rating ensures immediate compatibility with standard industrial and commercial electrical systems. Business Impact: Eliminates the need for extra wiring or adapters, reducing installation time and error potential. Application: Suitable for panel consolidations and data/automation racks. Feature: Compact footprint of 2.5 in depth, 4.8 in height, and 2.9 in width with a 1.25 lb weight. Business Impact: Simplifies retrofits in tight enclosures and minimizes added panel load. Application: Retrofit into legacy control panels or new builds where space is at a premium. Feature: UL 1449 certification ensures third-party safety validation and regulatory alignment. Business Impact: Improves procurement confidence and supports compliance across customer installations. Application: Widely adopted in industrial automation projects and service panels. Feature: 2-year warranty and rugged Eaton design. Business Impact: Reduces risk, lowers total cost of ownership, and simplifies long-term maintenance planning. Application: OEMs, panel builders, and integrators evaluating durable protection strategies. Feature: Compatibility with SP1 family components and clear documentation. Business Impact: Streamlines stocking, installation planning, and lifecycle management. Application: Systems with modular protection schemes and standardized Eaton parts.
Get a Quick Quote for a Eaton SP1-240S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SP1-240S?
Enquire Now
FAQs
SP1-240S is purpose-built for 120/240 V split-phase systems and delivers 50 kAIC transient protection, UL 1449 listing, and a compact footprint. It plugs into standard panel layouts without modifying upstream wiring, reducing installation time and the potential for wiring errors. This makes it highly compatible with modern automation cabinets and retrofit projects.
Plan for its 2.5 in depth, 4.8 in height, and 2.9 in width to fit crowded enclosures. Ensure proper clearance for wiring access and heat dissipation, and use appropriately rated conductors and terminations. The device’s 1.25 lb weight minimizes mounting stress on panel rails, simplifying retrofit in existing panels.
Ideal for control panels, PLC racks, servo drives, and machine automation cabinets where surge events threaten uptime. Its 50 kAIC capacity handles high-energy transients from grid switches or switching loads, reducing downtime and extending equipment life in mission-critical automation and data acquisition systems.
The SP1-240S is UL 1449 listed, providing third-party validation of surge protection performance and safety. This certification supports compliance during design reviews, OEM approvals, and field installations, helping ensure market readiness and regulatory alignment across industrial automation projects.
By reducing transient damage to PLCs, drives, and sensors, the SP1-240S lowers maintenance costs and minimizes unplanned downtime. The 2-year warranty further mitigates long-term risk, offering predictable total cost of ownership and faster project payback in panel builds and system expansions.
