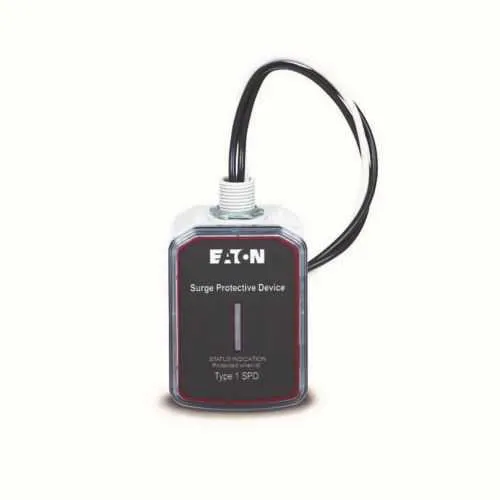

Eaton SP3-240S Surge Protective Device - 50 kAIC
Part Number: SP3-240S
Quick Summary
The Eaton SP3-240S surge protective device protects electrical panels from damaging surges in industrial power systems. This compact SPD helps prevent nuisance outages and equipment damage by clamping transient events at the source. In practice, engineers face rising fault currents and limited space in panelboards; the SP3-240S delivers reliable protection without bulky modifications. While certifications such as CE and IP ratings are commonly pursued in market deployments, verify the official spec sheet to ensure site compliance. For manufacturers and integrators, this SP3-240S supports quick deployment within Eaton protection schemes, delivering dependable uptime while safeguarding critical machinery and connected loads.
Product Information
Extended Description
SP3-240S Eaton: Eaton Innovative Technology Protector surge protective device, Surge Protection Device, SP3 series, 50 kAIC, 120/240 split-phase
Product Name
Eaton SP3 surge protective device
Catalog Number
SP3-240S
UPC
786689805548
Product Length/Depth
2.5 in
Product Height
4.8 in
Product Width
2.9 in
Product Weight
1.25 lb
Feature: 50 kAIC surge current rating → Business Impact: Robust protection for high-energy transient events reduces the risk of equipment damage and downtime. Application: Ideal for demanding industrial power systems and critical loads in panelboards. Feature: 120/240 split-phase compatibility → Business Impact: Works with common commercial/industrial feeders, simplifying design and reducing wiring complexity. Application: Suitable for 120/240V panel distributions across a range of industries. Feature: Compact footprint (2.5 in depth, 4.8 in height, 2.9 in width) and weight (1.25 lb) → Business Impact: Easier installation in crowded panels and retrofit projects, lowering labor time. Application: Panelboard retrofits and new installations with space constraints. Feature: SP3-240S catalog integration → Business Impact: Streamlines procurement and service planning through a consistent SP3 family platform. Application: OEMs and integrators leveraging Eaton SP3 series. Feature: UPC 786689805548 for traceability → Business Impact: Improves inventory control and parts management in procurement workflows. Application: Large-site rollouts and maintenance programs. Safety and installation note: Easy to mount in standard Eaton protection schemes and supports straightforward commissioning, reducing engineering risk during panel upgrades.
Get a Quick Quote for a Eaton SP3-240S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SP3-240S?
Enquire Now
FAQs
Install the SP3-240S into standard Eaton SP3-compatible panelboards by ensuring the power is disconnected, aligning the device with the panel bus, and securing the unit according to the manufacturer’s mounting guidelines. The 120/240V split-phase design supports straightforward wiring, but adherence to local codes and proper torque on connection lugs is essential for reliable operation.
The SP3-240S provides a 50 kAIC surge current rating and operates on a 120/240V split-phase system. This combination targets high-energy transients typical in industrial environments, helping to minimize the impact of lightning and switching surges on connected equipment and panels.
Yes. The SP3-240S is part of the Eaton SP3 surge protection family, designed to integrate with SP3-series protection schemes. This compatibility simplifies ordering, stocking, and installation, especially when upgrading or expanding existing protection across multiple panels.
The provided data does not list specific certifications for the SP3-240S. To verify compliance, consult the official Eaton datasheet or contact a distributor for stamped certifications (such as CE or IP-related marks) and any UL/IEC references applicable to your installation site.
Installing the SP3-240S can reduce unplanned downtime by protecting critical loads from transient surges, extending the life of downstream equipment, and lowering maintenance costs associated with surge damage. The compact form factor and straightforward integration help speed commissioning, improving overall uptime and total cost of ownership in industrial facilities.
