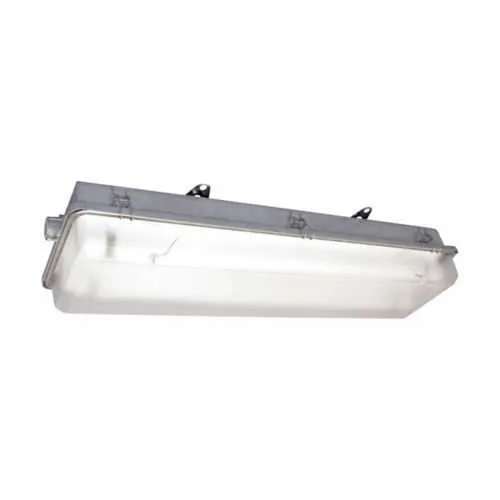

Eaton SPA42170XC Linear Fluorescent Light Fixture - IP66
Part Number: SPA42170XC
Quick Summary
The Eaton SPA42170XC linear fluorescent light fixture provides dependable hazardous-location illumination for industrial facilities. Many operators struggle to keep lighting safe, code-compliant, and maintenance-friendly in Class I, Division 2 environments, which can drive uptime interruptions and costly downtime. This fixture is built for NEC/CEC compliance and delivers IP66 ingress protection along with a NEMA 4 enclosure, supporting reliability in harsh settings. It also carries hazardous-location ratings across Class I Division 2, Class II Division 2, and Class III, giving you broad applicability. The 2-lamp, 32W configuration runs on 120–277 Vac at 50/60 Hz, with through-feed mounting and a 4 ft length that simplifies retrofit and long-term maintenance, boosting energy efficiency and lifecycle value.
Product Information
Extended Description
SPA42170XC Eaton: Eaton Crouse-Hinds series Pauluhn Intrepid SPA linear fluorescent light fixture,3/4" entry (2) hubs,50/60 Hz,4 ft lamp,Fluorescent,Clear polycarbonate lens,T8 bi-pin,Aluminum,2-lamp,Through feed,120-277 Vac,32W
Product Name
Eaton Crouse-Hinds series Pauluhn Intrepid SPA linear fluorescent light fixture
Catalog Number
SPA42170XC
UPC
662276497658
Product Length/Depth
52.8 in
Product Height
5 in
Product Width
7.63 in
Product Weight
14 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 2 Class III
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
Aluminum
Lamp length
4 ft
Number of lamps
2-lamp
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Style
Through feed
Entry size
3/4"
Entry type
(2) hubs
Wattage
32W
Lens material
Clear polycarbonate
Crouse-Hinds series Pauluhn Intrepid Hazardous Area Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Intrepid Hazardous Area Linear Fluorescent catalog page
IF LBL1370D2 - Pauluhn Intrepid Hazardous Area Linear Fluorescent
Eaton Specification Sheet - SPA42170XC
Feature: Hazardous-location rating with IP66 ingress protection and a NEMA 4 enclosure. Business Impact: delivers robust protection against dust, water, and corrosive environments, reducing downtime and compliance risk. Application: ideal for chemical processing, petrochemical plants, and other harsh industrial zones. Feature: 2-lamp 32W configuration using a 4 ft T8 bi-pin lamp set. Business Impact: lowers energy consumption while maintaining adequate lumen output, reducing operating costs. Application: retrofits and new builds where energy efficiency matters. Feature: Wide voltage range 120–277 Vac and 50/60 Hz compatibility. Business Impact: simplifies integration with existing power systems and minimizes panel upgrades, cutting installation time. Application: electrical refresh projects and mixed-voltage facilities. Feature: Through-feed design with 3/4 entry and two hubs. Business Impact: streamlines wiring, reduces install time, and supports scalable light runs in multi-lamp installations. Application: long runs in manufacturing lines and processing plants. Feature: Aluminum housing with clear polycarbonate lens. Business Impact: provides durability, chemical resistance, and clear illumination, lowering maintenance cycles. Application: environments with exposure to chemicals, oil, and splashes, such as paint booths and washdown areas.
Get a Quick Quote for a Eaton SPA42170XC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SPA42170XC?
Enquire Now
FAQs
SPA42170XC supports through-feed mounting with a 3/4 entry and two hubs, enabling straightforward wiring between fixtures in hazardous locations. It operates on 120–277 VAC at 50/60 Hz and uses a 4 ft, 2-lamp, T8 bi-pin configuration, simplifying retrofit or new installations in Class I, Division 2 environments.
This fixture is rated for Hazardous/Classified Locations with NEC/CEC compliance, IP66 ingress protection, and a NEMA 4 enclosure. It supports Class I Division 2, Class II Division 2, and Class III hazardous-location ratings, making it suitable for a wide range of industrial hazardous environments.
Yes. IP66 protection provides complete protection against dust ingress and powerful water jets, ensuring reliable operation in wet and dusty environments typical of chemical plants, washdown areas, and outdoor installations where harsh conditions are present.
The 32W, 4 ft two-lamp arrangement delivers efficient lighting with a long service life, reducing replacement frequency. Aluminum housing and a clear polycarbonate lens resist corrosion and scratching, lowering ongoing maintenance. The lightweight design also eases retrofit and alignment during periodic servicing.
ROIs stem from energy savings of the 32W two-lamp configuration, reduced maintenance due to durable construction, and ensured compliance with NEC/CEC and hazardous-location standards. The through-feed design accelerates installation, cutting labor costs, and the IP66/NEMA 4 protections reduce incidental repairs in harsh environments.
