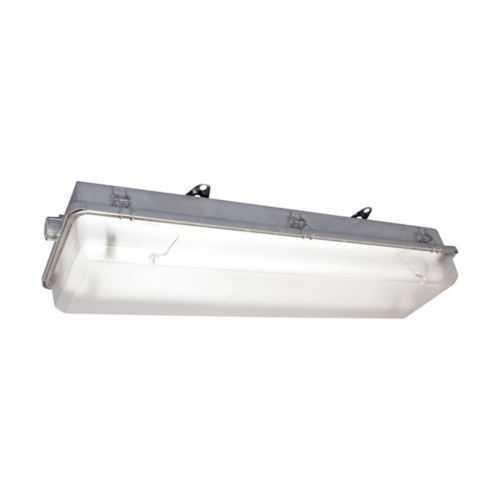

Eaton SPA42870L Pauluhn Intrepid SPA Linear Fluorescent - IP66
Part Number: SPA42870L
Quick Summary
Eaton SPA42870L is a hazardous-area linear fluorescent light fixture designed for demanding industrial environments. When downtime, safety risk, and compliance costs threaten production, this unit delivers rugged construction and straightforward installation to keep facilities running. It carries NEC/CEC hazardous location ratings including Class I, Division 2; Class II, Division 2; Class III, with IP66 sealing and a NEMA 4 housing for climate and dust resilience. The design emphasizes power compatibility and long service life, helping maintenance teams reduce spare parts and rework. With a two-lamp, 4 ft configuration, it provides reliable, energy-efficient illumination for hazardous-location applications and budget-conscious operations.
Product Information
Extended Description
SPA42870L Eaton: Eaton Crouse-Hinds series Pauluhn Intrepid SPA linear fluorescent light fixture,3/4" entry (2) hubs,50/60 Hz,4 ft lamp,Fluorescent,Matte polycarbonate lens,T12HO RDC,Aluminum,2-lamp,Lamps included,Through feed,120-277 Vac,48W
Product Name
Eaton Crouse-Hinds series Pauluhn Intrepid SPA linear fluorescent light fixture
Catalog Number
SPA42870L
UPC
662276415416
Product Length/Depth
52.8 in
Product Height
5 in
Product Width
7.63 in
Product Weight
14 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 2 Class III
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
Aluminum
Lamp length
4 ft
Number of lamps
2-lamp
Light type
T12HO RDC
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Style
Through feed
Entry size
3/4"
Entry type
(2) hubs
Wattage
48W
Lens material
Matte polycarbonate
Special features
Lamps included
Crouse-Hinds series Pauluhn Intrepid Hazardous Area Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Intrepid Hazardous Area Linear Fluorescent catalog page
IF LBL1370D2 - Pauluhn Intrepid Hazardous Area Linear Fluorescent
Eaton Specification Sheet - SPA42870L
Feature → Business Impact → Application: Through-feed wiring and a 3/4" entry with (2) hubs simplify field connections, reducing installation time and labor costs on new builds or retrofits in chemical plants and refineries. Application: hazardous-location lighting projects benefit from faster deployment and fewer enclosure penetrations. Feature → Business Impact → Application: IP66 sealed aluminum housing and NEMA 4 rating deliver moisture, dust, and corrosion resistance, lowering maintenance cycles in humid or dusty environments such as grain handling or petrochemical facilities. Application: ensures dependable operation in tough industrial spaces. Feature → Business Impact → Application: Matte polycarbonate lens and robust 2-lamp 4 ft luminaire design enhance impact resistance and uniform light, supporting code-compliant illumination without frequent lamp changes. Application: process lines, washdown zones, and outdoor-rated indoor spaces. Feature → Business Impact → Application: Lamps included and 120–277 VAC, 50/60 Hz operation streamline procurement and power integration, reducing stock complexity and ensuring compatibility with existing electrical infrastructure. Application: plant-wide retrofits and new installations. Feature → Business Impact → Application: NEC/CEC compliance and hazardous-location ratings provide regulatory protection and risk mitigation, enabling safer facility operations and smoother audits. Application: oil & gas, chemical processing, and other high-risk industries.
Get a Quick Quote for a Eaton SPA42870L
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SPA42870L?
Enquire Now
FAQs
Yes. The SPA42870L operates over a 120–277 VAC range and supports both 50 and 60 Hz inputs, making it compatible with common industrial power distributions. This flexibility minimizes the need for additional transformers and simplifies integration into existing electrical schemes.
The fixture is rated for Hazardous/Classified Locations under NEC/CEC, with Class I, Division 2; Class II, Division 2; and Class III classifications. It also carries an IP66 ingress protection rating and a NEMA 4 enclosure, ensuring performance in harsh environments and compliance during audits.
Yes. The unit supports through-feed installation with a 3/4" entry and (2) hubs, enabling efficient wiring runs and neater field terminations. This configuration reduces install time and helps maintain enclosure integrity in compact plant spaces.
The fixture uses two 4 ft lamps and includes lamps in the package, simplifying stocking and replacements. The rugged aluminum housing and matte polycarbonate lens sustain long service life in demanding environments, reducing replacement frequency and maintenance overhead.
It combines rugged IP66/NEMA 4 protection with flexible power, easy installation, and NEC/CEC compliance, delivering reduced downtime, lower maintenance costs, and faster audits. The through-feed design and included lamps further shorten project timelines and total cost of ownership for plants handling chemicals, petroleum products, or other hazardous processes.
