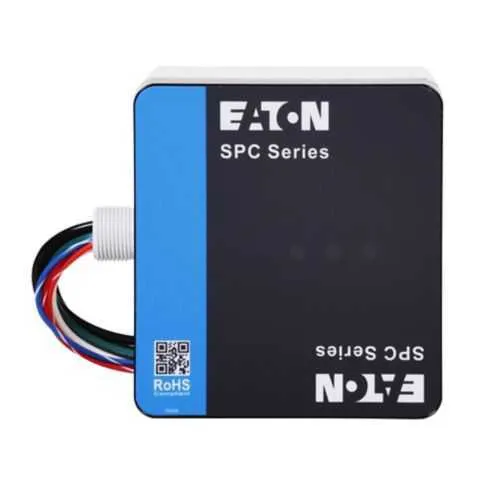

Eaton SPC100240H7P Surge Protection Device - UL 1449
Part Number: SPC100240H7P
Quick Summary
Eaton SPC100240H7P surge protection device protects industrial electrical systems from transients in facilities. Power quality issues cause downtime and equipment damage that disrupts production and service levels. UL 1449 listing and a NEMA 4X enclosure provide rugged protection in harsh environments, while the 100 kAIC interrupt rating and filtering improve reliability. With 240V delta operation and external side mounting, it delivers scalable protection for modern automation lines and helps reduce maintenance costs over the equipment life. Organizations benefit from the 10-year warranty and factory-tested performance across power panels, MCCs, and outdoor installations. This combination supports design engineers seeking dependable surge protection that meets demanding industrial uptime targets.
Product Information
Extended Description
SPC100240H7P Eaton: Surge Protection Device, SPC series, 100 kA, 240V High Leg Delta, NEMA 4X, Filtering and Form C relay
Product Name
Eaton SPC series surge protection device
Catalog Number
SPC100240H7P
UPC
786680212901
Product Length/Depth
5.5 in
Product Height
6 in
Product Width
3.19 in
Product Weight
2.5 lb
Warranty
10 year
Certifications
UL 1449
Type
Surge protection device
Special features
Filtering & Form C relay
Voltage rating
240V delta (4W+G)
Enclosure
NEMA 4X
Mounting Method
External side
Interrupt rating
100 kAIC
Series
SPC
SPC100240H7P uses a 240V delta (4W+G) configuration, designed to pair with common three‑phase motor loads and drive circuits. This compatibility reduces wiring complexity, minimizes the need for adapters, and speeds up commissioning in both new builds and retrofit projects. It is well suited for control panels, motor control centers, and outdoor enclosures in manufacturing and processing environments where compact, reliable protection is critical. By aligning with widely used motor protection schemes, it also streamlines spare parts planning and technician training. With a 100 kAIC interrupt rating, the device clamps high-energy transients without compromising downstream components across motors, drives, and PLCs. The SPC series is UL 1449 listed and includes integrated filtering to minimize EMI and noise propagation into sensitive control circuits. This combination enhances equipment life, reduces nuisance trips, and supports safer, more reliable operations in demanding industrial settings. The rugged design also simplifies routine maintenance checks and reduces unexpected service calls. Enclosed in a NEMA 4X rated housing, the unit resists moisture, dust, and washdown challenges typical of factory floors and outdoor lines. External side mounting offers flexible installation in crowded switchgear and retrofit projects, enabling quick upgrades to existing panels without major rework or downtime. The Filtering and a Form C relay provide both electrical noise suppression and signaling options for remote monitoring and control logic. This helps protect sensitive sensors and drives while enabling status feedback for condition-based maintenance programs and automation projects. The built‑in relay also supports straightforward integration with PLCs, HMIs, and SCADA systems. Compact footprint—5.5 in length, 6 in height, and 3.19 in width—and a weight of 2.5 lb simplify installation in limited spaces and densely populated panels. A 10-year warranty reinforces confidence in long-term performance, reducing total cost of ownership for mission-critical protections. When paired with other SPC series devices, it supports scalable protection across multiple process lines.
