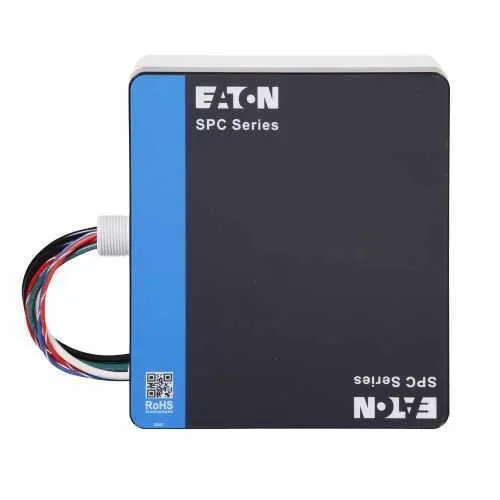

Eaton SPC150208Y2P Surge Protection Device - UL1449
Part Number: SPC150208Y2P
Quick Summary
SPC150208Y2P surge protection device from Eaton is designed to shield critical equipment in 120/208V Wye electrical systems. The main challenge in industrial power networks is unexpected transients that can damage controllers, drives, and data equipment, causing costly downtime. This model delivers robust protection with a 150 kAIC interrupt rating and UL1283 5th Edition filtering to minimize nuisance trips. Its NEMA 4X enclosure keeps dependable performance in harsh environments, while external side mounting simplifies installation on existing panels. With a 10-year warranty and UL 1449 certification, it supports both reliability and compliance goals. For procurement teams, this SPC solution offers long-term value, reduced maintenance costs, and scalable compatibility with SPC series devices.
Product Information
Extended Description
SPC150208Y2P Eaton: Eaton SPC series surge protection device , 150 kA, 120/208V Wye, NEMA 4X, Filtering, UL1283 5th Edition
Product Name
Eaton SPC series surge protection device
Catalog Number
SPC150208Y2P
UPC
786680217241
Product Length/Depth
7.5 in
Product Height
8.5 in
Product Width
3.19 in
Product Weight
4 lb
Warranty
10 year
Certifications
UL 1449
Type
Surge protection device
Special features
Filtering, UL1283 5th Edition
Voltage rating
120/208V Wye
Enclosure
NEMA 4X
Mounting Method
External side
Interrupt rating
150 kAIC
Series
SPC
High surge capability with a 150 kAIC interrupt rating delivers immediate protection for critical loads, reducing the risk of equipment failure during severe transients. Coupled with UL 1449 certification, it meets industry protection standards, making compliance straightforward during audits. In factory floors and data centers, reliable surge protection translates to fewer unplanned shutdowns and longer service life for drives, controllers, and PLCs. The 120/208V Wye voltage rating ensures compatibility with common industrial power distribution in mixed environments, while the rugged NEMA 4X enclosure enables outdoor or damp locations to maintain performance. UL1283 5th Edition filtering reduces electrical noise and nuisance trips, enhancing uptime for sensitive equipment like PLCs and CNCs. External side mounting and a compact footprint simplify retrofit into existing panels, lowering installation time and labor costs. A 10-year warranty and strong certifications support long-term ownership, maintenance planning, and total cost of ownership considerations in industrial power protection strategies.
Get a Quick Quote for a Eaton SPC150208Y2P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SPC150208Y2P?
Enquire Now
FAQs
The SPC150208Y2P is designed for external side mounting in standard electrical panels. Its dimensions (7.5 in depth, 8.5 in height, 3.19 in width) and 4 lb weight make retrofits straightforward. The NEMA 4X enclosure supports outdoor or damp locations, and the device fits common SPC series layouts, aiding scalable deployment across multiple panels.
A 150 kAIC interrupt rating indicates the device can safely interrupt very high surge currents, protecting downstream loads such as drives, PLCs, and controllers from catastrophic transient damage. This rating translates to higher resilience in environments with frequent or severe transients, reducing replacement costs and downtime.
Yes. The SPC150208Y2P employs a NEMA 4X enclosure, which is designed for wet and harsh environments. Combined with UL 1449 certification and UL1283 filtering, it maintains performance in factory floors, outdoor panels, and damp locations while meeting industry protection standards.
This surge protection device carries UL 1449 certification and UL1283 5th Edition filtering. These certifications validate safety, performance under transient conditions, and effective EMI/RFI suppression, making it easier to meet regulatory and customer requirements in industrial installations.
The SPC150208Y2P reduces downtime by protecting critical equipment from transients and minimizing nuisance trips. Its 10-year warranty and durable NEMA 4X enclosure lower maintenance frequency and replacement costs, delivering a favorable total cost of ownership for factory automation, data centers, and other mission-critical electrical systems.
