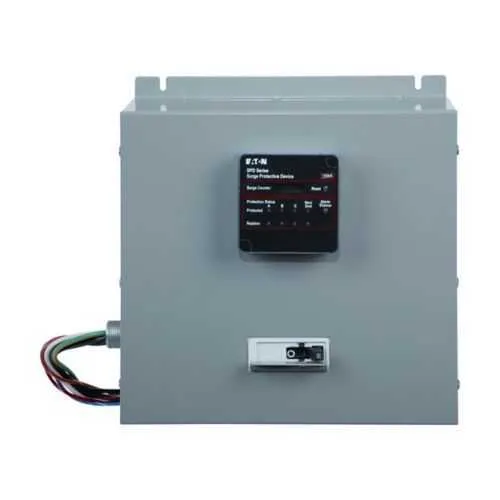

Eaton SPD080400Y2M Surge Protection Device - UL 1449 Certified
Part Number: SPD080400Y2M
Quick Summary
SPD080400Y2M surge protection device from Eaton protects electrical systems in industrial panels and switchgear. When transient overvoltages strike, unprotected equipment can suffer costly downtime and outages. With UL 1449 certification and a robust NEMA 1 enclosure, it supports reliable indoor installation, while external sidemounting simplifies retrofits. Its 80 kAIC capacity, 230/400V wye compatibility, and long 15-year warranty translate into lower lifecycle costs and easier compliance for plant environments. Supported by Eaton datasheets and installation manuals, the SPD080400Y2M integrates smoothly with standard distribution equipment.
Product Information
Extended Description
SPD080400Y2M Eaton: Surge Protection Device, SPD series, 80 kAIC, 230/400V wye (4W+G), Standard feature package, NEMA 1 with internal disconnect enclosure, External side mount, 320 L-N, 320 L-G, 320 N-G, 640 L-L operating voltage
Product Name
Eaton SPD series surge protection device
Catalog Number
SPD080400Y2M
UPC
786685331607
Product Length/Depth
9.5 in
Product Height
3.45 in
Product Width
5.4 in
Product Weight
3.5 lb
Warranty
15 year
Certifications
UL 1449
Type
Surge protection device
Accessories
Standard feature package
Voltage rating
230/400V wye (4W+G)
Enclosure
NEMA 1
Mounting Method
External side
Interrupt rating
80 kAIC
Operating voltage
320 L-N, 320 L-G, 320 N-G, 640 L-L
Series
SPD
Eaton’s SPD Series (Sidemount Versions) Brochure
Eaton SPD Series - For Mounting External To Electrical Distribution Equipment Installation Manual
Eaton Specification Sheet - SPD080400Y2M
Eaton’s SPD Series (Sidemount Versions) Data Sheet
Feature: 80 kAIC surge rating provides a high level of protection for critical loads, reducing the risk of damage from transient spikes and voltage transients. Business Impact: minimizes unplanned outages, extends the life of motors, drives, and controllers, and lowers maintenance costs. Application: ideal for demanding industrial panels and switchgear with 230/400V wye systems and external sidemount layouts. Paragraph continues with context on reliability and cost. Feature: NEMA 1 enclosure with internal disconnect delivers rugged indoor protection and a straightforward maintenance path. Business Impact: simplifies compliance with indoor installation standards while enabling quick isolation for servicing. Application: suitable for control rooms and distributed equipment in manufacturing facilities. Feature: External side mounting reduces installation complexity and supports modular retrofit of existing distributions. Business Impact: saves labor time during commissioning and future upgrades, enabling faster project timelines. Application: sidemount installations on external distribution gear. Feature: Operating voltage options 320 L-N, 320 L-G, 320 N-G, 640 L-L ensure broad compatibility with 230/400V systems. Business Impact: reduces multiple part numbers and stocking requirements, improving procurement efficiency. Application: new builds and retrofits across industrial plants. Feature: 15-year warranty and UL 1449 compliance provide long-term protection and risk reduction. Business Impact: improves total cost of ownership and supplier confidence, supporting asset lifecycle planning. Application: enterprise-level procurement and asset management. Feature: Documentation and standards support through downloads (brochure, installation manual, datasheet). Business Impact: accelerates design reviews and ensures correct installation practices. Application: engineering teams and field technicians referencing standard Eaton resources.
Get a Quick Quote for a Eaton SPD080400Y2M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SPD080400Y2M?
Enquire Now
FAQs
SPD080400Y2M is designed for external sidemount installation on distribution equipment. Plan for the 9.5 in length, 5.4 in width, and 3.45 in height, and ensure appropriate clearance for wiring L-N, L-G, N-G, and L-L connections. Use the internal disconnect option where available and conform to NEMA 1 indoor mounting practices. The device is rated 80 kAIC, which supports protection during high-energy surges, even in retrofit scenarios.
SPD080400Y2M offers an 80 kAIC surge capability, suitable for protecting critical loads against high-energy transients. It is rated for 230/400V wye systems (4W+G) with operating voltages of 320 L-N, 320 L-G, 320 N-G, and 640 L-L. This combination delivers robust performance for panelboards and switchgear in demanding industrial environments, helping to minimize downtime and equipment damage.
Yes. The SPD080400Y2M is designed for indoor use in NEMA 1 enclosures with external sidemount mounting, making it well-suited for control panels, motor control centers, and external distribution equipment where retrofit or new installations require reliable surge protection without compromising enclosure integrity or service access.
This device carries UL 1449 certification, validating its surge protection performance and safety for electrical installations in North America. The product’s enclosure and mounting design also align with standard indoor electrical protection practices. For regional projects, verify local approval requirements and consult Eaton datasheets to confirm compatibility with your regulatory framework.
A 15-year warranty provides long-term assurance of performance and reduces replacement risk, improving total cost of ownership for industrial protection. Access to Eaton brochures, installation manuals, and datasheets accelerates design verification and field deployment, helping OEMs and maintenance teams optimize budgeting, reduce unexpected maintenance, and justify protection investments.
