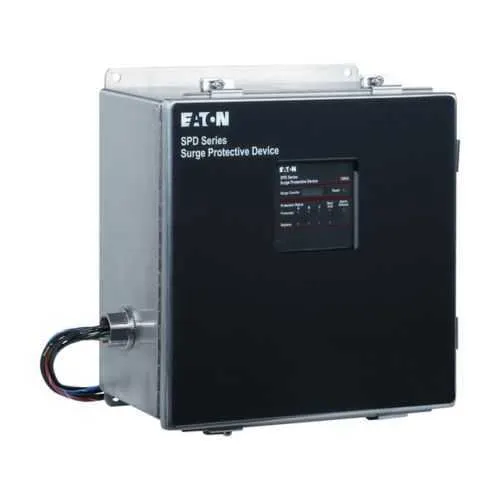

Eaton SPD080600Y2O Surge Protection Device - UL 1449
Part Number: SPD080600Y2O
Quick Summary
SPD080600Y2O surge protection device from Eaton guards critical electrical systems against transient overvoltages in industrial environments. It helps prevent downtime and equipment damage caused by voltage spikes that travel through distribution panels. With a rugged NEMA 4X enclosure and external sidemount design, it is built for harsh factory floors and retrofit projects. The unit carries UL 1449 certification and is designed for 347/600V wye (4W+G) networks, providing reliable clamping across L-N, L-G, N-G, and L-L paths. Backed by a 15-year warranty, this SPD supports uptime, compliance, and long-term asset protection for power distribution systems while remaining easy to specify in modern protection schemes.
Product Information
Extended Description
SPD080600Y2O Eaton: Surge Protection Device, SPD series, 80 kAIC, 347/600V wye (4W+G), Standard feature package, NEMA 4 with internal disconnect enclosure, External side mount, 420 L-N, 420 L-G, 420 N-G, 840 L-L operating voltage
Product Name
Eaton SPD series surge protection device
Catalog Number
SPD080600Y2O
UPC
786685336992
Product Length/Depth
9.5 in
Product Height
3.45 in
Product Width
5.4 in
Product Weight
3.5 lb
Warranty
15 year
Certifications
UL 1449
Type
Surge protection device
Accessories
Standard feature package
Voltage rating
347/600V wye (4W+G)
Enclosure
NEMA 4X
Mounting Method
External side
Interrupt rating
80 kAIC
Operating voltage
420 L-N, 420 L-G, 420 N-G, 840 L-L
Series
SPD
Eaton’s SPD Series (Sidemount Versions) Brochure
Eaton SPD Series - For Mounting External To Electrical Distribution Equipment Installation Manual
Eaton Specification Sheet - SPD080600Y2O
Eaton’s SPD Series (Sidemount Versions) Data Sheet
The 80 kAIC interrupt rating provides a robust first line of defense against high-energy transients, reducing the likelihood of downstream equipment damage. In practice, this translates to fewer unplanned outages and lower repair costs for motor drives and switchgear. Applied in panel boards and distribution cabinets, it helps meet performance specs in automation systems, improving overall system reliability. The 347/600V wye (4W+G) voltage rating supports typical industrial power networks, enabling consistent surge protection for L-N, L-G, and N-G paths. Rugged NEMA 4X enclosure with external sidemount design enables reliable operation in dusty, wet, or outdoor environments and simplifies retrofits. A standard feature package and a 15-year warranty reduce procurement risk and enable quick deployment across projects. This SPD also integrates smoothly with SPD-series sidemount configurations, streamlining installation and service.
Get a Quick Quote for a Eaton SPD080600Y2O
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SPD080600Y2O?
Enquire Now
FAQs
Installation begins with selecting a suitable external sidemount mounting location on the distribution panel or electrical distribution equipment. Mount the SPD080600Y2O securely to a clean, grounded surface, connect L-N, L-G, N-G, and L-L as per the wiring diagram, and verify a proper enclosure seal before energizing. Ensure compatible bus configurations and follow all safety protocols for high-energy devices to achieve reliable protection and service life.
SPD080600Y2O provides an 80 kAIC interrupt rating, is rated for 347/600V wye (4W+G), and offers protection across L-N, L-G, N-G, and L-L paths. It uses a 9.5 in length, 3.45 in height, and 5.4 in width enclosure with a 3.5 lb weight, and it is designed for external sidemount installation in NEMA 4X environments.
Yes. The SPD080600Y2O carries UL 1449 certification and is built into a rugged NEMA 4X enclosure, making it suitable for harsh industrial environments, including areas with dust, moisture, and exposure to weather. The sidemount installation further facilitates integration with existing electrical distribution equipment while maintaining protective performance.
This device is ideal for protecting power distribution panels, industrial control cabinets, and process equipment in factories that run 347/600V wye systems. Its sidemount capability makes it a good fit for retrofits and new builds alike, especially where external protection is preferred and reliable uptime is critical for manufacturing lines and automation infrastructure.
By preventing surge-induced damage and minimizing unplanned downtime, SPD080600Y2O helps extend asset life and reduce maintenance costs. Its 15-year warranty adds long-term value, while standard feature packaging simplifies procurement and installation, delivering faster time-to-protection and lower total cost of ownership for power distribution networks.
