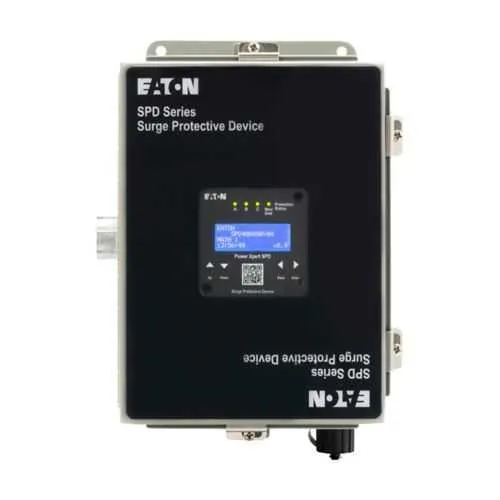

Eaton SPD080600Y4O Surge Protection Device - UL 1449, NEMA 4 enclosure
Part Number: SPD080600Y4O
Quick Summary
Eaton SPD series surge protection device protects critical electrical systems from transient overvoltages in industrial environments. Unprotected equipment can suffer unplanned downtime and damage during waveform spikes, leading to costly repairs and lost productivity. UL 1449 certified performance, combined with a rugged NEMA 4 enclosure, ensures reliability in challenging plant environments, while the internal disconnect eases service and maintenance. This SPD is designed for 347/600 V Wye (4W+G) systems and integrates with Power Xpert SPD accessories, delivering scalable protection for motor starters, PLCs, and control panels. By specifying this device, engineers can improve uptime, reduce maintenance cost, and meet robust electrical protection requirements across facilities.
Product Information
Extended Description
SPD080600Y4O Eaton: Eaton Surge Protection Device, SPD Series, 80 kA per phase, 347/600 Wye (4W + G), Power Xpert SPD, NEMA 4 with internal disconnect enclosure
Product Name
Eaton SPD series surge protection device
Catalog Number
SPD080600Y4O
UPC
786689404499
Product Length/Depth
3.48 in
Product Height
12.05 in
Product Width
7.47 in
Product Weight
6.8 lb
Certifications
UL 1449
Accessories
Power Xpert SPD
Used with
NEMA 4 with internal disconnect enclosure
Voltage rating
347/600 Wye (4W+G)
Surge current
80 kA per phase
Feature: 80 kA per phase surge current. Business Impact: Provides high-energy transient protection, reducing the risk of component damage and extending equipment life. Application: Suitable for large motor drives and switchgear in manufacturing lines where surge events are common. Feature: 347/600 V Wye (4W+G) rating. Business Impact: Supports standard industrial power distribution, enabling straightforward integration into existing panels. Application: Ideal for control panels and power distribution nodes in plant electrical infrastructure. Feature: NEMA 4 enclosure with internal disconnect. Business Impact: Enables safe outdoor or harsh indoor installation with uncomplicated maintenance access, reducing installation time and labor costs. Application: Outdoor cabinets or damp environments in process industries. Feature: UL 1449 certified protection. Business Impact: Ensures compliance with reliability standards and reduces regulatory risk, accelerating procurement cycles. Application: Compliance-driven projects in facilities seeking verified surge protection performance. Feature: Power Xpert SPD compatibility. Business Impact: Scales protection as systems grow, minimizing retrofits and downtime. Application: Large facilities leveraging Eaton’s protection ecosystem for centralized surge management.
Get a Quick Quote for a Eaton SPD080600Y4O
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SPD080600Y4O?
Enquire Now
FAQs
For 347/600 V Wye networks, mount SPD080600Y4O within a suitable panel or enclosure, ensuring a secure, accessible location for the internal disconnect. Use proper wiring methods per NEC guidelines, route conductors to minimize EMI pickup, and connect ground and line terminals as per the catalog page. The NEMA 4 enclosure allows indoor or outdoor use with basic protection against environmental factors.
The device is rated for 80 kA per phase, delivering rapid surge diversion to protect downstream equipment. UL 1449 certified, it provides predictable clamping behavior and robust protection for motor drives, PLCs, and control panels. In practice, this reduces the likelihood of nuisance tripping and component burnouts during voltage spikes or switching transients.
Yes. The SPD080600Y4O is designed for 347/600 V Wye systems and is compatible with Eaton’s Power Xpert SPD ecosystem. This enables scalable protection as an installation expands, minimizes the need for retrofits, and supports centralized surge management across multiple panels and control points in industrial environments.
This device carries UL 1449 certification, a critical benchmark for surge protection performance. The NEMA 4 enclosure supports protection in challenging environments, enhancing reliability in industrial settings. Compliance with these standards helps satisfy procurement and safety requirements for mission-critical electrical systems.
By limiting transient damage to critical components, this SPD reduces unplanned downtime and maintenance costs, extending asset life and stabilizing production. The internal disconnect simplifies servicing, while compatibility with Power Xpert SPD allows phased expansion, lowering total cost of ownership in facilities with growing protection needs.
