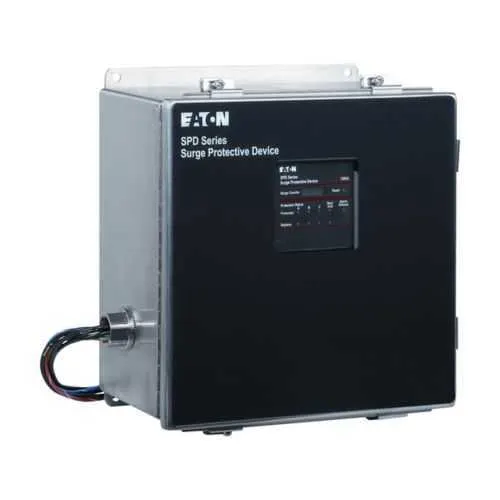

Eaton SPD100208Y1O Surge Protection Device - UL 1449
Part Number: SPD100208Y1O
Quick Summary
The Eaton SPD100208Y1O surge protection device safeguards 120/208V electrical systems in commercial and light industrial panels. Many facilities struggle with damaging transient surges that cause costly downtime and equipment wear. With UL 1449 certification, a rugged NEMA 4X enclosure, and a 15-year warranty, this model combines safety, durability, and long-term value. For engineers planning retrofit protections or new installations, the external side mounting and 100 kAIC rating enable straightforward integration and reliable, continuous operation. The SPD series aligns with robust industry expectations while supporting 120/208V wye configurations and downstream protection for critical loads.
Product Information
Extended Description
SPD100208Y1O Eaton: Surge Protection Device, SPD series, 100 kAIC, 120/208V wye (4W+G), Basic feature package, NEMA 4 with internal disconnect enclosure, External side mount, 150 L-N, 150 L-G, 150 N-G, 300 L-L operating voltage
Product Name
Eaton SPD series surge protection device
Catalog Number
SPD100208Y1O
UPC
786685337142
Product Length/Depth
9.5 in
Product Height
3.45 in
Product Width
5.4 in
Product Weight
3.5 lb
Warranty
15 year
Certifications
UL 1449
Type
Surge protection device
Accessories
Basic feature package
Voltage rating
120/208V wye (4W+G)
Enclosure
NEMA 4X
Mounting Method
External side
Interrupt rating
100 kAIC
Operating voltage
150 L-N, 150 L-G, 150 N-G, 300 L-L
Series
SPD
Eaton’s SPD Series (Sidemount Versions) Brochure
Eaton SPD Series - For Mounting External To Electrical Distribution Equipment Installation Manual
Eaton Specification Sheet - SPD100208Y1O
Eaton’s SPD Series (Sidemount Versions) Data Sheet
Feature: High interrupt rating of 100 kAIC provides strong transient suppression for demanding load profiles. Business Impact: Reduces risk of transformer, drive, and controller damage, lowering maintenance costs and downtime. Application: Industrial control panels and manufacturing lines where transient events are common. Feature: External side mounting simplifies retrofits and serviceability. Business Impact: Speeds installation, minimizes disruption, and enables modular upgrades. Application: Retrofit projects in space-constrained electrical rooms. Feature: NEMA 4X enclosure delivers rugged, water- and dust-resistant protection. Business Impact: Suitable for harsh environments and outdoor installations, extending service life. Application: Outdoor switchgear, washdown areas, and exposed panel locations. Feature: 120/208V wye (4W+G) compatibility ensures broad utility. Business Impact: Supports standard commercial/industrial power distribution without heavy rewiring. Application: Data centers, process lines, and machine controls. Feature: UL 1449 listing and 15-year warranty provide regulatory confidence and long-term value. Business Impact: Improves compliance assurance and total cost of ownership. Application: Procurement for mission-critical equipment with lifecycle planning.
Get a Quick Quote for a Eaton SPD100208Y1O
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SPD100208Y1O?
Enquire Now
FAQs
The SPD100208Y1O uses external side mounting, designed for straightforward installation beside or on the exterior of electrical distribution equipment. It requires a standard 120/208V wye connection (4W+G) and should be wired to provide L-N, L-G, N-G, and L-L protection paths as per Eaton installation instructions.
SPD100208Y1O delivers a 100 kAIC interrupt rating, supports 120/208V wye systems, and is listed under UL 1449. It comes with a basic feature package and uses an external side mounting configuration to simplify integration in existing gear.
Yes. The device is housed in a NEMA 4X enclosure, providing rugged environmental protection suitable for outdoor or washdown areas. This makes it appropriate for industrial panels exposed to dust, moisture, and temperature variations while maintaining protection of internal components.
SPD100208Y1O is UL 1449 listed, signifying compliance with essential surge protection safety standards. The combination of UL listing, NEMA 4X enclosure, and a 15-year warranty supports reliability, compliance, and a lower total cost of ownership for medium- to high-demand electrical installations.
By mitigating transient events, SPD100208Y1O reduces the likelihood of equipment damage, extending life for transformers, drives, and PLCs. The 15-year warranty and durable enclosure translate to lower maintenance costs and improved uptime, delivering a favorable return on investment for critical manufacturing and process environments.
