Eaton SPD100220Y1M Surge Protection Device - UL 1449
Part Number: SPD100220Y1M
Quick Summary
SPD100220Y1M surge protection device protects electrical systems from transient surges in industrial panels. Frequent voltage spikes cause unexpected equipment failures, downtime, and maintenance headaches that erode productivity and budget accuracy. UL 1449 listing backs safety and reliability, while a 15-year warranty reinforces long-term protection; its NEMA 1 enclosure and external side mounting simplify installation in harsh environments. Designed for 127/220V Wye (4W+G) distributions with a 100 kAIC interrupt rating, it fits modern control architectures and supports compliant protection strategies. By consolidating protection into a compact unit, it helps reduce replacement costs and accelerates commissioning for OEMs and end users.
Product Information
Extended Description

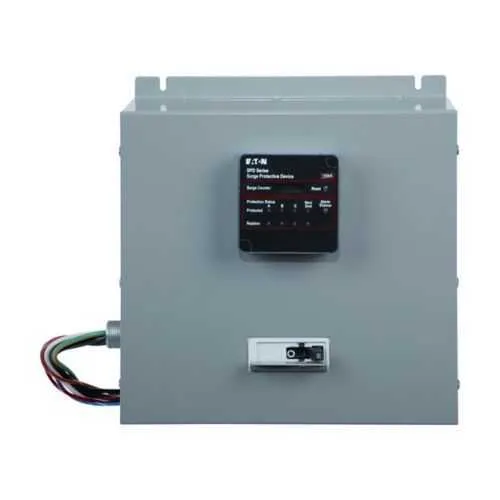

SPD100220Y1M Eaton: Surge Protection Device, SPD series, 100 kAIC, 127/220V wye (4W+G), Basic feature package, NEMA 1 with internal disconnect enclosure, External side mount, 150 L-N, 150 L-G, 150 N-G, 300 L-L operating voltage
Product Name
Eaton SPD series surge protection device
Catalog Number
SPD100220Y1M
UPC
786685331713
Product Length/Depth
9.5 in
Product Height
3.45 in
Product Width
5.4 in
Product Weight
3.5 lb
Warranty
15 year
Certifications
UL 1449
Type
Surge protection device
Accessories
Basic feature package
Voltage rating
127/220 Wye (4W+G)
Enclosure
NEMA 1
Mounting Method
External side
Interrupt rating
100 kAIC
Operating voltage
150 L-N, 150 L-G, 150 N-G, 300 L-L
Series
SPD
Eaton’s SPD Series (Sidemount Versions) Brochure
Eaton SPD Series - For Mounting External To Electrical Distribution Equipment Installation Manual
Eaton Specification Sheet - SPD100220Y1M
Eaton’s SPD Series (Sidemount Versions) Data Sheet
Feature: 100 kAIC interrupt rating. Business Impact: High-energy surge events are absorbed without compromising downstream equipment, reducing maintenance costs. Application: Control panels and motor drives in manufacturing lines benefit from reliable, industry-grade protection. Feature: 127/220V Wye (4W+G) voltage rating. Business Impact: Compatibility with common industrial power systems minimizes retrofits and wiring complexity. Application: OEMs and plant engineers can deploy SPD protection across multiple line configurations without custom gear. Feature: NEMA 1 enclosure with external side mounting. Business Impact: Rugged indoor protection with straightforward installation and service access, lowering installation time and labor costs. Application: Sidemount integration in electrical distribution equipment in harsh factory environments. Feature: Basic feature package. Business Impact: Cost-effective protection without overbuying features, improving time-to-value for projects and retrofit programs. Application: Budget-conscious facilities upgrading legacy panels. Feature: Operating voltages and monitoring points (L-N, L-G, N-G, L-L). Business Impact: Broad coverage of surge paths ensures comprehensive protection of all conductors, reducing fault propagation. Application: Machinery bays, PLC panels, and shared control rooms. Feature: 15-year warranty and UL 1449 certification. Business Impact: Long-term reliability and a lower cost of ownership, supporting compliance and risk mitigation. Application: Critical process equipment in manufacturing and data-intensive environments.
Get a Quick Quote for a Eaton SPD100220Y1M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SPD100220Y1M?
Enquire Now
FAQs
SPD100220Y1M is designed for external side mounting in indoor NEMA 1 enclosures. Ensure adequate clearance for accessibility, allow space for the internal disconnect if present, and verify that mounting hardware matches the enclosure’s mounting pattern. Plan wiring to L-N, L-G, N-G, and L-L paths with short, well-organized conductors to minimize impedance and maximize surge protection efficiency.
Yes, SPD100220Y1M is rated for 127/220V Wye (4W+G) configurations and provides a 100 kAIC interrupt rating. In practice, this enables robust protection for typical industrial control circuits, motor drives, and PLC power feeds. For best results, coordinate with upstream protection devices and ensure proper coordination with downstream breakers to maintain selective protection during faults.
The device offers high-energy surge handling (100 kAIC), a compact NEMA 1 enclosure, and external side mounting for easier retrofits. Benefits include reduced downtime from surge events, longer equipment life, and simplified compliance with UL 1449 standards. Its basic feature package keeps initial costs manageable while delivering essential protection for critical equipment in harsh production environments.
SPD100220Y1M carries UL 1449 listing, validating its surge protection capability and safety performance. It uses a robust NEMA 1 enclosure suitable for indoor use, and is backed by a 15-year warranty, signaling long-term reliability and support for extended asset lifecycles in industrial settings.
Maintenance is typically minimal due to passive protection design, with routine inspections of wiring integrity and enclosure seals. ROI stems from reduced unplanned downtime, extended equipment life, and lower replacement costs. The 15-year warranty further lowers total cost of ownership by providing long-term protection without frequent replacements.
