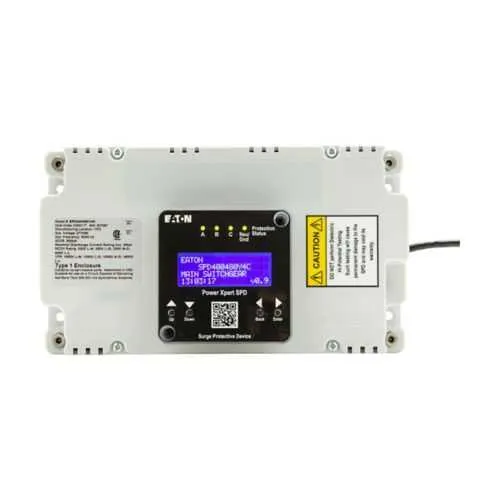

Eaton SPD100220Y4J Surge Protection Device - UL 1449
Part Number: SPD100220Y4J
Quick Summary
SPD100220Y4J surge protection device protects motor control centers from transient surges in industrial environments. It helps prevent unexpected downtime and equipment damage caused by voltage spikes, a common pain point for maintainers and engineers. UL 1449 certification ensures reliable protection and compliance with industry standards, while its compatibility with Power Xpert SPD accessories supports scalable protection across larger MCCs. Built for 127/220 V Wye (4W+G) systems, this Eaton solution delivers high current protection with straightforward installation, enabling faster commissioning and lower total cost of ownership for automation projects. Designed for motor control centers, SPD100220Y4J helps engineers meet reliability targets and reduce spare part inventories through robust protection.
Product Information
Extended Description
SPD100220Y4J Eaton: Eaton Surge Protection Device, SPD Series, 100 kA per phase, 127/220 Wye (4W + G), Power Xpert SPD, For motor control centers
Product Name
Eaton SPD series surge protection device
Catalog Number
SPD100220Y4J
UPC
786689405007
Product Length/Depth
3.48 in
Product Height
12.05 in
Product Width
7.47 in
Product Weight
6.8 lb
Certifications
UL 1449
Accessories
Power Xpert SPD
Used with
For motor control centers
Voltage rating
127/220 Wye (4W+G)
Surge current
100 kA per phase
High surge current rating of 100 kA per phase provides robust protection against transient spikes. This directly reduces the risk of equipment damage and unplanned downtime in demanding industrial environments. For motor control centers, SPD100220Y4J delivers reliable protection that keeps critical drives and controls online. Voltage rating of 127/220 V Wye (4W+G) enables direct integration with common MCC bus configurations. This compatibility accelerates installation, reduces wiring errors, and shortens commissioning time. In practice, technicians install with confidence, knowing the device aligns with standard 4-wire + ground systems. UL 1449 certification provides verified surge suppression performance and industry compliance. This reduces risk during audits and supports end-user acceptance in regulated settings. The rating also simplifies supplier qualification and helps maintain consistent protection levels across multiple panels. Power Xpert SPD compatibility enables scalable protection with a common protection philosophy. This fosters easier maintenance, standardized parts, and streamlined spare-part inventories across an entire facility. Physical form factor and weight support straightforward installation within crowded MCC enclosures. The compact 3.48 in depth, 7.47 in width, and 12.05 in height fit typical rack layouts, while a 6.8 lb weight simplifies carriage and mounting. Operational efficiency and ROI: The robust surge protection reduces unplanned downtime and extends equipment life, which translates to lower replacement frequencies and improved asset utilization. In practice, engineering teams report faster MCC retrofits and fewer field modifications due to standard 127/220 V Wye compatibility. With Power Xpert SPD integration, you can implement multi-stage protection across several panels, achieving consistent protection and straightforward spare-part management. Installation and maintenance considerations: The device’s accessible terminals and modular design simplify commissioning and future upgrades. With UL 1449 compliance, technicians rely on proven performance and predictable behavior under surge events, reducing diagnostic time during faults. In addition, the Power Xpert ecosystem supports centralized monitoring and coordinated protection strategies across the facility.
Get a Quick Quote for a Eaton SPD100220Y4J
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SPD100220Y4J?
Enquire Now
FAQs
To install SPD100220Y4J in an existing motor control center, power must be isolated and the MCC panel opened following standard safety procedures. Mount the unit in a suitable slot, connect the 3‑phase conductors to the line terminals, join the ground conductor to the point provided, and verify 127/220 V Wye (4W+G) configuration. The device is UL 1449 certified and compatible with Power Xpert SPD accessories, ensuring proper protection commensurate with your MCC layout.
SPD100220Y4J delivers 100 kA per phase surge current, designed for 127/220 V Wye (4W+G) systems. It is UL 1449 certified and comes in a compact footprint measuring 3.48 in deep, 12.05 in high, and 7.47 in wide, with an approximate weight of 6.8 lb. This combination supports reliable surge protection in motor control centers and automation panels.
Yes, SPD100220Y4J is compatible with Power Xpert SPD accessories, enabling scalable, centralized protection across multiple panels. This compatibility simplifies procurement, maintenance, and spare-part inventories while preserving a unified protection strategy for MCCs. Installation remains straightforward, and the 127/220 V Wye configuration ensures consistency with existing electrical architectures in industrial facilities.
SPD100220Y4J is well suited for motor control centers and other industrial automation panels that require robust surge suppression. Its 100 kA per phase rating protects drives, contactors, and control circuitry from transient events, reducing unplanned downtime and maintenance costs. The device's UL 1449 certification and 127/220 V Wye configuration make it a reliable choice for mid- to large-scale MCC applications.
The business value comes from decreased downtime, longer asset life, and simplified compliance. By protecting critical motors and drives from voltage transients, you can reduce spare parts, speed up commissioning, and improve overall equipment reliability in automated lines. Over the life of an MCC, this translates to a favorable return on investment and lower total cost of ownership.
