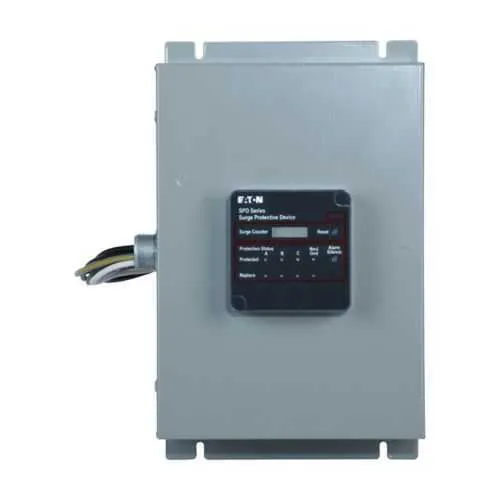

Eaton SPD100240H1K Surge Protection Device - UL 1449
Part Number: SPD100240H1K
Quick Summary
The Eaton SPD100240H1K surge protection device protects electrical systems from transient spikes in industrial control panels and distribution equipment. Too often, uncontrolled surges damage sensitive drives, trigger unplanned downtime, and drive maintenance costs higher. UL 1449 listed, with a rugged NEMA 1 enclosure, offers reliable protection in indoor control cabinets while the 100 kAIC interrupt rating handles large transient events. External side mounting simplifies retrofit work and rapid serviceability. Designed for 240V delta high-leg configurations, it provides robust L-N, L-G, N-G, and L-L protection, supporting longer asset life and predictable maintenance budgets. This SPD integrates smoothly into existing protection schemes and reinforces a practical path to lower total cost of ownership.
Product Information
Extended Description
SPD100240H1K Eaton: Surge Protection Device, SPD series, 100 kAIC, 240V high-leg delta (4W+G) on B phase, Basic feature package, NEMA 1 enclosure, External side mount, 150 L-N, 150 L-G, 150 N-G, 300 L-L operating voltage
Product Name
Eaton SPD series surge protection device
Catalog Number
SPD100240H1K
UPC
786685327259
Product Length/Depth
9.5 in
Product Height
3.45 in
Product Width
5.4 in
Product Weight
3.5 lb
Warranty
15 year
Certifications
UL 1449
Type
Surge protection device
Accessories
Basic feature package
Voltage rating
240V delta (4W+G)
Enclosure
NEMA 1
Mounting Method
External side
Interrupt rating
100 kAIC
Operating voltage
150 L-N, 150 L-G, 150 N-G, 300 L-L
Series
SPD
Eaton’s SPD Series (Sidemount Versions) Brochure
Eaton SPD Series - For Mounting External To Electrical Distribution Equipment Installation Manual
Eaton Specification Sheet - SPD100240H1K
Eaton’s SPD Series (Sidemount Versions) Data Sheet
Feature: High energy protection with 100 kAIC interrupt rating. Business Impact: Absorbs substantial surge energy, reducing the likelihood of fault currents propagating to sensitive drives, contactors, and PLCs. Application: Ideal for motor controls, power distribution panels, and process lines in manufacturing environments where transient events are common. Feature: 240V delta high-leg (4W+G) on B phase. Business Impact: Ensures correct clamping for delta networks, minimizing mis-matches and protecting equipment across all conductor paths. Application: Suitable for installations in facilities with high-leg delta distribution, including packaging lines and CNC machines. Feature: NEMA 1 indoor enclosure. Business Impact: Provides dependable mechanical protection in standard electrical rooms, reducing environmental risk. Application: Perfect for control cabinets and indoor distribution panels in manufacturing plants. Feature: External side mounting. Business Impact: Enables quick installation and straightforward retrofits without opening major enclosures. Application: Retrofit projects and upgrades to existing switchgear without disrupting production. Feature: Wide operating voltages including 150 L-N, 150 L-G, 150 N-G, 300 L-L. Business Impact: Delivers broad protection across multiple circuit configurations, reducing design constraints. Application: Protects sensors, actuators, and power feeds in mixed-voltage industrial environments. Feature: Basic feature package with 15-year warranty. Business Impact: Keeps upfront costs predictable while delivering long-term asset protection and lower lifecycle risk. Application: procurement for OEMs and plant engineers seeking dependable, cost-efficient surge protection with proven longevity.
