Eaton SPD100240H4J Surge Protection Device - UL 1449
Part Number: SPD100240H4J
Quick Summary
SPD100240H4J Surge Protection Device by Eaton is designed to shield motor control centers from transient surges and electrical disturbances that threaten uptime. For engineers facing unexpected outages and costly drive damage, this SPD provides a robust line of defense that can be installed close to critical MCCs. Key certifications to note include UL 1449, with broader industry expectations around CE marking and IP ratings depending on the installation region; verify local requirements during procurement. The device aligns with Power Xpert SPD ecosystems, ensuring compatibility with Eaton protection strategies and service contracts. By using a purpose-built SPD in your MCCs, you reduce unplanned downtime, extend drive life, and simplify compliance reporting while maintaining safe, reliable operations.
Product Information
Extended Description

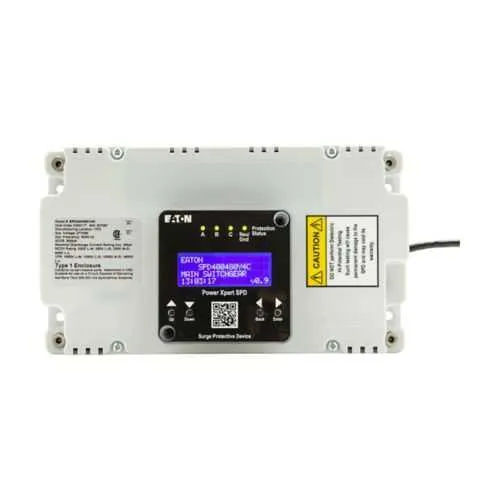

SPD100240H4J Eaton: Eaton Surge Protection Device, SPD Series, 100 kA per phase, 240 Delta High Leg (4W + G) on 'B' Phase, Power Xpert SPD, For motor control centers
Product Name
Eaton SPD series surge protection device
Catalog Number
SPD100240H4J
UPC
786689404635
Product Length/Depth
3.48 in
Product Height
12.05 in
Product Width
7.47 in
Product Weight
6.8 lb
Certifications
UL 1449
Accessories
Power Xpert SPD
Used with
For motor control centers
Voltage rating
240V high-leg delta (4W+G) on B phase
Surge current
100 kA per phase
Feature: 100 kA per phase surge current rating delivers robust protection against high-energy transients. Business Impact: This reduces unplanned downtime and extends the life of drives and MCC components, improving plant reliability. Application: Suitable for motor control centers in demanding industrial environments. Feature: 240V high-leg delta (4W+G) on B phase simplifies wiring for common delta-based setups. Business Impact: Reduces wiring complexity and minimizes misconnection risk, saving installation time. Application: Fits standard MCC bus configurations in many plants. Feature: UL 1449 certified device ensures compliance with a recognized safety standard. Business Impact: Streamlines procurement and lowers risk of non-conforming installations. Application: Widely adopted for MCC protection across industries. Feature: Compact dimensions and moderate weight (3.48 in depth, 12.05 in height, 7.47 in width; 6.8 lb) enable easier fit in panels. Business Impact: Saves cabinet space, simplifies handling, and speeds retrofit projects. Application: Beneficial for both new builds and retrofits in space-constrained MCCs. Feature: Integrates with Power Xpert SPD ecosystem for unified protection strategy. Business Impact: Enables streamlined diagnostics, easier maintenance, and scalable protection upgrades. Application: Ideal for facilities already leveraging Eaton protection components. Feature: Specifically designed for use with motor control centers. Business Impact: Targets critical motors and drives, reducing cross-talk and protecting valuable assets. Application: Supports standard MCC architectures with straightforward installation.
