Eaton SPD100480D1L Surge Protection Device - UL 1449
Part Number: SPD100480D1L
Quick Summary
The Eaton SPD100480D1L surge protection device protects industrial power systems from voltage surges in distribution panels. Unplanned surges can trigger nuisance trips, equipment damage, and costly downtime that disrupts production schedules. UL 1449 certified, with a rugged NEMA 1 enclosure and a 15-year warranty ensure dependable protection and long service life. Its external side-mount design supports quick installation alongside external distribution equipment, while 480V delta (3W+G) operation and 100 kAIC interrupt rating deliver robust surge defense across L-G and L-L circuits. This combination helps facilities meet reliability targets, reduce maintenance costs, and extend the life of downstream drives, transformers, and control gear.
Product Information
Extended Description

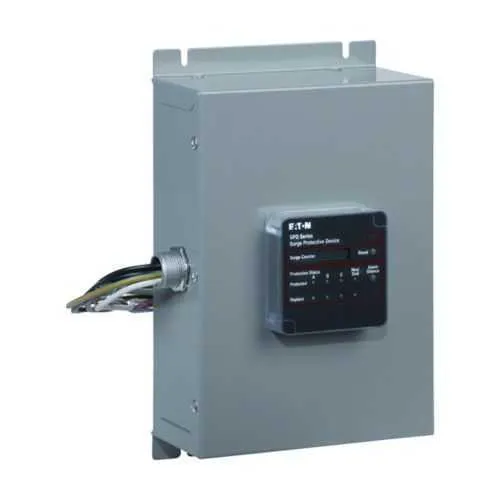

SPD100480D1L Eaton: Surge Protection Device, SPD series, 100 kAIC, 480V delta (3W+G), Basic feature package, NEMA 1 flush enclosure, External side mount, 640 L-G, 640 L-L operating voltage
Product Name
Eaton SPD series surge protection device
Catalog Number
SPD100480D1L
UPC
786685329963
Product Length/Depth
9.5 in
Product Height
3.45 in
Product Width
5.4 in
Product Weight
3.5 lb
Warranty
15 year
Certifications
UL 1449
Type
Surge protection device
Accessories
Basic feature package
Voltage rating
480V delta (3W+G)
Enclosure
NEMA 1
Mounting Method
External side
Interrupt rating
100 kAIC
Operating voltage
640 L-G, 640 L-L
Series
SPD
Eaton’s SPD Series (Sidemount Versions) Brochure
Eaton SPD Series - For Mounting External To Electrical Distribution Equipment Installation Manual
Eaton Specification Sheet - SPD100480D1L
Eaton’s SPD Series (Sidemount Versions) Data Sheet
The SPD100480D1L delivers a high surge capacity with a 100 kAIC interrupt rating, providing fast clamping and safe dissipation of surge energy. This reduces the risk of insulation damage to transformers and motors, improving uptime for critical manufacturing lines and mission-critical equipment. It is designed for 480V delta systems and features a 640 V-L-G and 640 V-L-L operating range, enabling reliable protection across common industrial feeders while accommodating mixed Three-Wire Plus Ground configurations. The rugged NEMA 1 flush enclosure and external side-mount installation simplify retrofits and new builds, enabling rapid deployment in control cabinets and distribution panels without altering existing infrastructure. UL 1449 listing and a 15-year warranty offer long-term compliance and predictable lifecycle costs, making this SPD a cost-effective component in quality-assurance programs. Documentation and installation resources, including brochures and datasheets, support procurement and field commissioning, reducing the risk of misapplication. In practice, users see fewer nuisance trips, extended asset life for drives and transformers, and streamlined maintenance planning for 480V protection schemes. This aligns with industry best practices for external protection devices and SPD series compatibility in modern facilities.
