Eaton SPD100480D1N Surge Protection Device - UL 1449
Part Number: SPD100480D1N
Quick Summary
Eaton SPD100480D1N is a surge protection device that safeguards 480V delta electrical systems in industrial facilities. Without proper SPD, equipment damage and costly downtime from power transients threaten uptime and maintenance budgets. UL 1449 certified, a NEMA 4X enclosure, and a 15-year warranty provide robust protection for harsher environments and long-term reliability. Designed for sidemount external mounting and quick retrofits, it helps owners meet reliability targets while reducing total cost of ownership. With external side mounting and 480V delta support, it simplifies retrofit projects, minimizes panel downtime during upgrade, and aligns with common industrial protection strategies. By meeting stringent protection standards, it supports compliance initiatives while supporting ongoing production efficiency.
Product Information
Extended Description

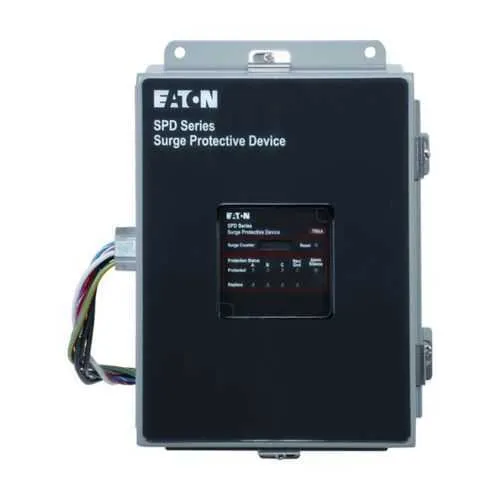

SPD100480D1N Eaton: Surge Protection Device, SPD series, 100 kAIC, 480V delta (3W+G), Basic feature package, NEMA 4 enclosure, External side mount, 640 L-G, 640 L-L operating voltage
Product Name
Eaton SPD series surge protection device
Catalog Number
SPD100480D1N
UPC
786685334462
Product Length/Depth
9.5 in
Product Height
3.45 in
Product Width
5.4 in
Product Weight
3.5 lb
Warranty
15 year
Certifications
UL 1449
Type
Surge protection device
Accessories
Basic feature package
Voltage rating
480V delta (3W+G)
Enclosure
NEMA 4X
Mounting Method
External side
Interrupt rating
100 kAIC
Operating voltage
640 L-G, 640 L-L
Series
SPD
Eaton’s SPD Series (Sidemount Versions) Brochure
Eaton SPD Series - For Mounting External To Electrical Distribution Equipment Installation Manual
Eaton Specification Sheet - SPD100480D1N
Eaton’s SPD Series (Sidemount Versions) Data Sheet
Feature → 100 kAIC interrupt rating enables robust surge handling. Business Impact → Reduces the risk of catastrophic equipment damage during transient events, improving uptime and maintenance planning. Application → Ideal for critical loads in manufacturing lines and motor drives using 480V systems. Feature → 480V delta (3W+G) compatibility supports three-phase networks. Business Impact → Ensures consistent protection across phase-to-ground and phase-to-neutral paths, lowering the chance of partial outages. Application → Suitable for industrial control panels and distribution equipment in process facilities. Feature → NEMA 4X enclosure provides protection against dust, water, and other harsh elements. Business Impact → Enables outdoor and damp-location installations without compromising performance. Application → Outdoor substations, exterior switchgear, and rugged plant environments benefit from this robustness. Feature → External side mounting simplifies retrofit and minimizes panel modifications. Business Impact → Accelerates installation, reduces labor costs, and supports quick protection upgrades. Application → Retrofit projects and new installs in existing control cabinets and equipment racks. Feature → 15-year warranty and UL 1449 certification offer long-term reliability and regulatory confidence. Business Impact → Lowers lifecycle risk and total cost of ownership through extended protection. Application → Industrial facilities seeking durable, compliant SPD solutions. Feature → Basic feature package provides essential surge protection with straightforward integration. Business Impact → Streamlines procurement and installation, speeding time-to-protection for critical lines. Application → Ideal for standard protection needs in 480V distribution and control circuits.
