Eaton SPD100480D4N Surge Protection Device - UL 1449
Part Number: SPD100480D4N
Quick Summary
The Eaton SPD100480D4N is a surge protection device for protecting 480V delta three-phase electrical systems. Unplanned transients can disrupt drives, erode component life, and trigger costly downtime. UL 1449 certification supports reliability, while a robust NEMA 4 enclosure ensures performance in harsh environments. In practice, this surge protector helps protect motors and drives, helping facilities meet safety and uptime targets. Its 100 kA per phase rating and Power Xpert compatibility deliver rapid, reliable clamping across phase, line, and ground. Installation in standard electrical cabinets is straightforward, with clear wiring guidance and compact depth. And the unit's UL 1449 compliance aligns with common industrial procurement standards and maintenance workflows.
Product Information
Extended Description

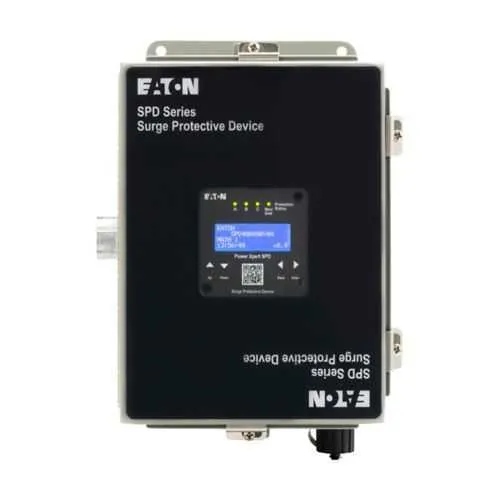

SPD100480D4N Eaton: Eaton Surge Protection Device, SPD Series, 100 kA per phase, 480 Delta (3W + G), Power Xpert SPD, NEMA 4 enclosure
Product Name
Eaton SPD series surge protection device
Catalog Number
SPD100480D4N
UPC
786689405830
Product Length/Depth
3.48 in
Product Height
12.05 in
Product Width
7.47 in
Product Weight
6.8 lb
Certifications
UL 1449
Accessories
Power Xpert SPD
Used with
NEMA 4 enclosure
Voltage rating
480 Delta (3W+G)
Surge current
100 kA per phase
Feature 100 kA per phase surge rating translates to robust clamping during high-energy transients, reducing voltage excursions that can damage drives and motors. Business impact extended equipment life and lower replacement costs, with predictable protection for critical loads. Application ideal for 480V delta (3W+G) motor drives in manufacturing lines and packaging equipment. Feature Power Xpert SPD compatibility and integrated surge suppression topology improve protection coordination, simplifying system design, reducing time to commission, and accelerating maintenance when replacement parts are required. Application suitable for Eaton Power Xpert SPD family users and OEM electrical cabinets. Feature NEMA 4 enclosure and rugged UL 1449-listed design deliver reliable performance in harsh environments, enabling outdoor or wet-location installations without additional enclosures. Application plant floor panels, outdoor electrical bays, and process lines. Feature Compact footprint and moderate weight enable easy retrofits in existing panels while maintaining accessibility. Application space-constrained control panels and retrofit projects. Feature Comprehensive protection with UL-listed safety standards supports regulatory compliance and procurement efficiency. Application industrial protection programs and data centers seeking dependable SPD solutions.
