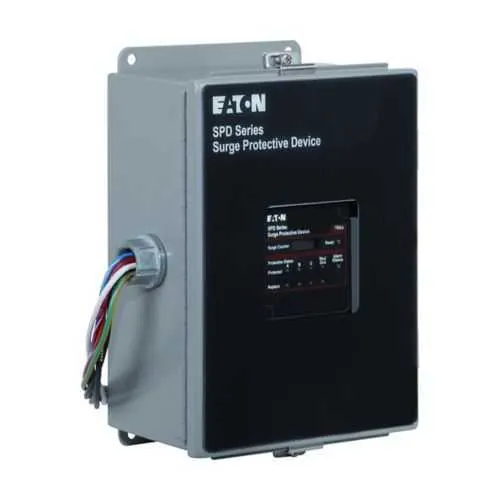

Eaton SPD100480Y3P316 Surge Protection Device - UL 1449
Part Number: SPD100480Y3P316
Quick Summary
The Eaton SPD100480Y3P316 surge protection device protects 120/208 V systems in industrial environments. Nuisance surges, downtime, and difficult retrofits plague many facilities, impacting productivity and maintenance budgets. UL 1449 listing and a NEMA 4X stainless steel enclosure deliver safety, weather resistance, and regulatory confidence. This surge protection device aligns with industrial protection strategies, supporting reliability-focused projects and serviceable, future-ready infrastructure. Engineers will value its external side mount, 160 kAIC interrupt rating, and the embedded surge counter that simplifies maintenance planning. With 120/208 V Wye service and a rugged enclosure, it fits commercial HVAC, data-processing rooms, and heavy machinery installations alike.
Product Information
Extended Description
SPD100480Y3P316 Eaton: Eaton SPD series surge protection device,External side mount,160 kAIC, 120/208V Wye (4W+G),NEMA 4X 316 stainless steel enclosure,Standard feature package and surge counter
Product Name
Eaton SPD series surge protection device
Catalog Number
SPD100480Y3P316
UPC
786689333614
Product Length/Depth
13.5 in
Product Height
13.2 in
Product Width
7.7 in
Product Weight
24 lb
Certifications
UL 1449
Type
Surge protection device
Special features
Standard feature package and surge counter
Accessories
Standard feature package and surge counter
Voltage rating
120/208 Wye (4W+G)
Enclosure
NEMA 4X 316 stainless steel enclosure
Interrupt rating
160 kAIC
Series
SPD
Feature: External side mount and 160 kAIC rating deliver durable surge protection that's ready for demanding industrial environments where space and accessibility matter. Business Impact: This setup minimizes transient damage to sensitive electronics and motor drives, reducing unplanned downtime, extending equipment life, and lowering spare-part costs during peak maintenance cycles. Application: Retrofit projects and new installations in control cabinets, data centers, and machine rooms that require fast, reliable protection. Feature: The 120/208 V Wye (4W+G) rating provides direct compatibility with common commercial and industrial power systems, eliminating the need for costly adapters. Business Impact: Reduces wiring errors and commissioning time, enabling consistent protection across multiple panels. Application: Projects in manufacturing plants and distribution centers seeking scalable surge protection. Feature: NEMA 4X 316 stainless steel enclosure offers superior weather, washdown, and chemical resistance that maintains integrity in harsh environments. Business Impact: Allows siting outdoors, near washdown zones, or in aggressive environments without enclosure degradation or performance tradeoffs. Application: Outdoor substations, parking structures, and food-processing facilities. Feature: External side mount simplifies installation and retrofits, reducing cabling complexity and allowing quicker access for diagnostics and service. Business Impact: Shortens project timelines, lowers labor costs, and minimizes downtime during upgrades or expansions in crowded electrical rooms. Application: Facility-wide surge protection upgrades and new panel installations. Feature: Standard feature package includes a surge counter for built-in monitoring and traceability across surge events. Business Impact: Enables proactive maintenance planning, run-rate reporting, and a quick audit trail for compliance reviews and asset management. Application: Reliability programs in data centers, healthcare campuses, and industrial plants. Feature: Compact footprint and fixed dimensions complement existing panel layouts without sacrificing protection, while UL 1449 listing confirms safety compliance. Application: Data centers, healthcare campuses, and industrial facilities seeking scalable, maintainable protection will appreciate the balance of form and function.
Get a Quick Quote for a Eaton SPD100480Y3P316
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SPD100480Y3P316?
Enquire Now
FAQs
Installers should plan for an external side mount configuration to optimize access for diagnostics and servicing. The unit’s dimensions (13.5 in L × 13.2 in H × 7.7 in W) and 24 lb weight determine panel footprint and mounting hardware needs. Compatible with 120/208 V Wye systems, it fits standard electrical rooms and protected outdoor locations when paired with a suitable enclosure. Ensure proper clearance for serviceability and surge counter access.
SPD100480Y3P316 provides 160 kAIC interrupt rating and UL 1449 listing, delivering robust transient suppression for 120/208 V systems. The product supports a standard feature package including a surge counter to monitor events, enabling performance tracking, preventive maintenance planning, and compliance audits across critical loads.
Yes. The device is housed in a NEMA 4X 316 stainless steel enclosure, designed for harsh environments, including outdoor installations and washdown zones. This enclosure choice protects against weather, dust, and chemical exposure while maintaining electrical protection integrity and accessibility for maintenance checks.
The standard feature package includes a surge counter that records surge events, enabling trend analysis and maintenance planning. This data supports reliability programs and regulatory reviews, helping teams quantify protection effectiveness, justify upgrades, and optimize asset management across facilities.
UL 1449 listing confirms safety and performance compliance for surge protection devices, while the robust enclosure and high interrupt rating reduce equipment damage and downtime. The surge counter enables data-driven maintenance, improving uptime guarantees and returning investment through extended equipment life and lower replacement costs.
