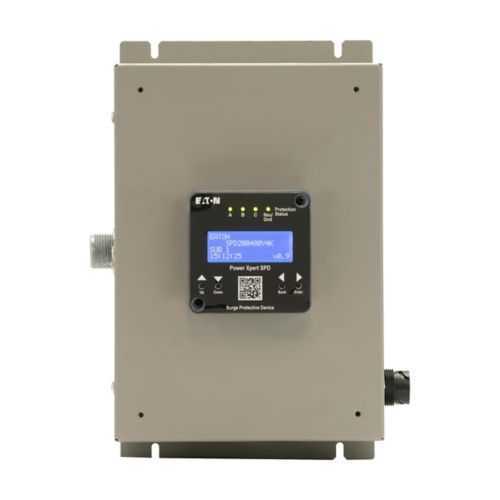

Eaton SPD100600D4M Surge Protection Device - UL 1449
Part Number: SPD100600D4M
Quick Summary
SPD100600D4M is a surge protection device engineered to safeguard critical electrical equipment in industrial facilities. Frequent transient surges and unplanned downtime can devastate productivity and drive maintenance costs. UL 1449 listed with a NEMA 1 enclosure and internal disconnect provides safety, ease of service, and compliant integration. Designed for data centers, manufacturing lines, and OEM installations, it supports reliability, asset longevity, and lower total cost of ownership. Its compatibility with Power Xpert SPD accessories and its robust surge rating of 100 kA per phase translate into scalable protection for multi-load configurations. Installation becomes straightforward thanks to its NEMA 1 form factor and clear labeling, enabling faster commissioning and easier field maintenance in EPC and facility environments.
Product Information
Extended Description
SPD100600D4M Eaton: Eaton Surge Protection Device, SPD Series, 100 kA per phase, 600 Delta (3W + G), Power Xpert SPD, NEMA 1 with internal disconnect enclosure
Product Name
Eaton SPD series surge protection device
Catalog Number
SPD100600D4M
UPC
786689404956
Product Length/Depth
3.48 in
Product Height
12.05 in
Product Width
7.47 in
Product Weight
6.8 lb
Certifications
UL 1449
Accessories
Power Xpert SPD
Used with
NEMA 1 with internal disconnect enclosure
Voltage rating
600 Delta (3W+G)
Surge current
100 kA per phase
Feature: SPD100600D4M delivers a high surge rating of 100 kA per phase across three-wire plus ground configurations. Business impact: This level of protection reduces insulation stress, minimizes nuisance trips, and translates to higher equipment uptime and lower maintenance costs. Application: Ideal for main distribution panels, motor control centers, and critical process lines in manufacturing and data centers. Feature: 600 Delta (3W+G) configuration ensures balanced surge protection across all three phases and the grounding path. Business impact: Balanced protection minimizes phase-to-phase stress on sensitive electronics, extending controller life and improving process stability. Application: Suited to power and control cabinets, machine cells, and plant-wide protection schemes. Feature: NEMA 1 enclosure with internal disconnect simplifies field installation and maintenance. Business impact: reduces wiring complexity, speeds commissioning, and enables safe service without removing external enclosures. Application: Indoor control panels and equipment rooms in manufacturing facilities and data centers. Feature: Compatible with Power Xpert SPD accessories, enabling scalable protection architecture. Business impact: Supports phased deployments and easier upgrades across growing protection needs. Application: Data centers, OEMs, and industrial plants adopting Eaton protection ecosystems. Feature: UL 1449 certification and a proven protection platform provide safety and performance assurance. Business impact: Enhances procurement confidence, simplifies compliance, and reduces risk across regulated environments. Application: Essential for industries with strict safety standards, including data centers, oil and gas, and manufacturing.
Get a Quick Quote for a Eaton SPD100600D4M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SPD100600D4M?
Enquire Now
FAQs
SPD100600D4M is designed for indoor NEMA 1 enclosures with an internal disconnect, simplifying retrofit into existing panels. It uses standard 3W+G wiring and IEC/UL recognized connections, allowing straightforward wiring and field service. The device integrates with Eaton's Power Xpert SPD accessories, enabling scalable protection without dismantling current installations. This supports quick commissioning and reduced downtime during upgrades.
SPD100600D4M delivers 100 kA per phase surge current with a 600 Delta (3W+G) configuration, providing fast clamping for line-to-ground and line-to-line transients. Used in three-phase panels, it protects motors, drives, and PLCs by keeping voltage within safe limits. This translates to longer equipment life, improved process stability, and higher uptime in data centers, manufacturing lines, and OEM installations.
Yes. SPD100600D4M is well-suited for data centers, manufacturing lines, and OEM installations where high uptime and protection of sensitive electronics are critical. It supports NEMA 1 indoor installation and internal disconnect for easy service, while UL 1449 listing and Power Xpert compatibility reinforce a reliable protection strategy for mission-critical environments.
SPD100600D4M carries UL 1449 listing, confirming compliance with recognized safety and performance standards for surge protective devices. It supports NEMA 1 indoor installation with an internal disconnect, simplifying certification reviews and field service. The combination of UL listing and enclosure rating helps meet industry requirements for critical facilities such as data centers and manufacturing plants.
Maintenance requirements are minimal due to solid-state components and the availability of field-replaceable accessories within the Power Xpert SPD ecosystem. Regular inspections and testing of protection modules ensure continued performance. ROI derives from reduced downtime, extended asset life, and faster upgrades, delivering lower total cost of ownership in high-demand industrial settings.
