Eaton SPD100600Y1J-ND Surge Protection Device - UL Listed
Part Number: SPD100600Y1J-ND
Quick Summary
The Eaton SPD100600Y1J-ND surge protection device protects electrical systems from transient disturbances in motor control centers. Surges spike downtime and equipment wear, increasing maintenance costs and risking unplanned outages. It carries UL Listed certification and NFPA 780 compliance, with IBC 2006, CBC 2007 and UBC Zone 4 alignment to support safer, code-compliant installations. This replacement model integrates EMI/RFI filtering and a clear alarm feature, delivering reliable protection for MCCs while simplifying procurement and warranty claims. Designed for motor control centers, it supports compatible 347/600 V systems and offers a solid upgrade path for facilities seeking improved reliability and reduced downtime.
Product Information
Extended Description

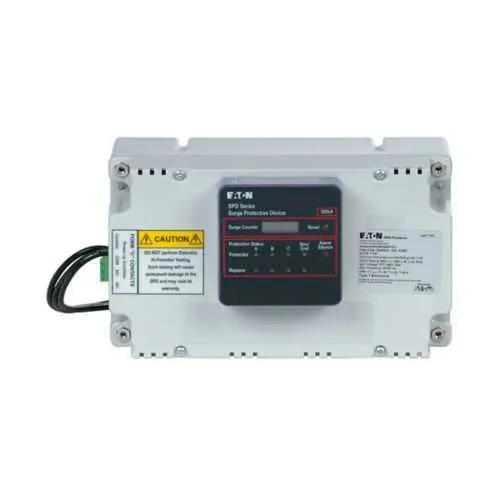

SPD100600Y1J-ND Eaton: Eaton Surge Protection Device, Replacement model, 600Y/347V (4W+G) voltage rating, Basic feature package, used with Motor control centers
Product Name
Eaton SPD series surge protection device
Catalog Number
SPD100600Y1J-ND
UPC
786685691145
Product Length/Depth
3.54 in
Product Height
5.4 in
Product Width
9.5 in
Product Weight
3.5 lb
Warranty
10 years (15 years when registered on www.eaton.com/spd)
Compliances
NFPA Standard 780
Certifications
UL 96A UL Listed
Type
Replacement model
Special features
Meets or exceeds the requirements specified in IBC ®2006, CBC2007, and UBC®Zone 4. Audible alarm with silence button. Form C relay contact. EMI/RFI filtering, providing up to 50 dB of noise attenuation from 10 kHz to 100 MHz. Surge counter with rest button
Accessories
Basic feature package
Frequency rating
50/60 Hz
Interrupt rating
200 kAIC
Nominal Discharge Current
20 kA
Operating voltage
420 L-N, 420 L-G, 420 N-G, 840 L-L
Used with
Motor control centers
Voltage rating
347/600 wye (4W+G)
Surge current
100 kA per phase
Model
Basic
Short-circuit rating
200 kA
Operating temperature
-40 to 50 °C
The SPD100600Y1J-ND provides 347/600 V protection with a 200 kA short-circuit rating, enabling safe operation in motor control centers under demanding load conditions. This translates to reduced risk of equipment damage and lower maintenance costs for critical MCC infrastructure. With EMI/RFI filtering delivering up to 50 dB attenuation from 10 kHz to 100 MHz, system noise is minimized, improving performance of sensitive control electronics and PLCs in industrial environments. The unit includes an audible alarm with silence button and a Form C relay contact, empowering quick fault notification and seamless integration with plant annunciation systems. A built-in surge counter with rest button supports simple maintenance tracking and regulatory reporting. The device is compatible with existing MCC architectures, 50/60 Hz operation, and 347/600 V delta/wye configurations, enabling straightforward installation as a replacement model. Operating temperature from -40 to 50 °C ensures reliability in harsh industrial settings, while NFPA 780 and UL 96A certifications provide strong compliance assurances. The 3.5 lb weight and compact footprint help minimize enclosure space requirements, and the 10-year warranty (15 years with registration) offers long-term total cost of ownership advantages for electrical protection in manufacturing and process industries.
Get a Quick Quote for a Eaton SPD100600Y1J-ND
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SPD100600Y1J-ND?
Enquire Now
FAQs
Installation is designed to retrofit into standard MCC frames by matching the 347/600 V rating and enclosure footprint. Verify bus rating, ensure clearance for the 9.5 in width and 5.4 in height, then connect L-N, L-G, and L-L paths per the wiring diagram. The unit’s Form C contact and audible alarm integrate with existing PLC or annunciator systems for prompt fault notification.
The device supports 50/60 Hz operation with a 347/600 V voltage rating and a 200 kA short-circuit rating, offering robust protection against high-energy transients. The 20 kA nominal discharge current per channel and 100 kA per phase surge current ensure strong protection during fault events, while EMI/RFI filtering minimizes control-system interference.
Yes. The unit is specified for 347/600 V wye configurations and supports -40 to 50 °C operating temperatures, fulfilling typical harsh industrial environments. Its compact footprint and basic feature package simplify integration into existing MCCs, reducing refurbishment timelines and enabling consistent protection across multiple lines.
It is UL Listed and NFPA 780 compliant, with performance enhancements aligned to IBC 2006, CBC 2007 and UBC Zone 4. These certifications indicate adherence to stringent electrical, fire safety, and building-code requirements, helping facilities satisfy regulatory audits and supplier qualifications while reducing risk of non-compliance penalties.
The SPD100600Y1J-ND carries a 10-year warranty, extendable to 15 years when registered with Eaton. This warranty, combined with EMI/RFI protection and reliable surge behavior, lowers maintenance frequency and downtime costs in MCCs, improving ROI by extending equipment life, minimizing unplanned outages, and simplifying asset management.
