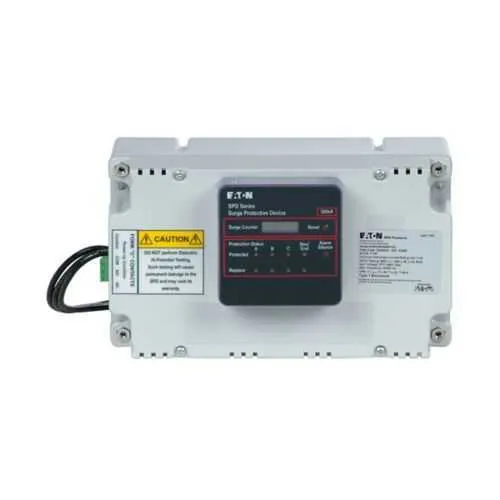

Eaton SPD100600Y3J-ND Surge Protection Device - UL Listed
Part Number: SPD100600Y3J-ND
Quick Summary
The Eaton SPD100600Y3J-ND surge protection device safeguards motor control centers from damaging voltage spikes. In modern facilities, sporadic surges can trigger unplanned downtime, motor wear, and short equipment life spans, complicating maintenance budgets. This model carries UL 96A Listed certification and NFPA 780 compliance, reinforcing safety and reliability in critical environments. With a 347/600 V wye rating and a 50/60 Hz operating range, it aligns with common MCC architectures while delivering EMI/RFI attenuation and a durable protection platform. The result is a measurable business value: fewer nuisance trips, extended equipment life, and improved uptime, supported by standard feature sets and a surge counter for proactive maintenance planning.
Product Information
Extended Description
SPD100600Y3J-ND Eaton: Eaton Surge Protection Device, Replacement model, 600Y/347V (4W+G) voltage rating, Standard feature package and surge counter, used with Motor control centers
Product Name
Eaton SPD series surge protection device
Catalog Number
SPD100600Y3J-ND
UPC
786685691169
Product Length/Depth
3.54 in
Product Height
5.4 in
Product Width
9.5 in
Product Weight
3.5 lb
Warranty
10 years (15 years when registered on www.eaton.com/spd)
Compliances
NFPA Standard 780
Certifications
UL 96A UL Listed
Type
Replacement model
Special features
Meets or exceeds the requirements specified in IBC ®2006, CBC2007, and UBC®Zone 4. Audible alarm with silence button. Form C relay contact. EMI/RFI filtering, providing up to 50 dB of noise attenuation from 10 kHz to 100 MHz. Surge counter with rest button
Accessories
Standard feature package and surge counter
Frequency rating
50/60 Hz
Interrupt rating
200 kAIC
Nominal Discharge Current
20 kA
Operating voltage
420 L-N, 420 L-G, 420 N-G, 840 L-L
Used with
Motor control centers
Voltage rating
347/600 wye (4W+G)
Surge current
100 kA per phase
Model
Standard with surge counter
Short-circuit rating
200 kA
Operating temperature
-40 to 50 °C
Feature → Business Impact → Application: High surge capability with 100 kA per phase and 200 kAIC short-circuit rating dramatically increases fault tolerance in motor control centers, reducing the likelihood of cascaded outages and preserving motor lifespan in demanding workloads. This translates to lower maintenance costs and steadier production lines when used with MCCs in high-demand environments. Feature → Application: EMI/RFI filtering provides up to 50 dB attenuation from 10 kHz to 100 MHz, delivering cleaner control signals and fewer misoperations in PLCs and drives, particularly in installations with dense electrical noise. Feature → Application: Audible alarm with silence button, Form C relay contact, and a surge counter with rest button enable straightforward integration with existing control systems and easy on-site diagnostics, minimizing commissioning time. Feature → Business Impact → Application: Replacement model built for standard MCC integration, offering compatibility with 4W+G, 347/600 V ratings, and 50/60 Hz service, ensuring a smooth upgrade path without redesigning protection schemes. Feature → Compliance & Warranty: NFPA 780 compliance and UL 96A listing, plus a 10-year warranty (15 years with registration), provide long-term risk mitigation and total cost of ownership reductions for industrial facilities.
Get a Quick Quote for a Eaton SPD100600Y3J-ND
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SPD100600Y3J-ND?
Enquire Now
FAQs
When selecting this Eaton SPD for an MCC, ensure compatibility with 347/600 V wye systems and 50/60 Hz service. The unit dimensions are 9.5 in wide, 5.4 in high, and 3.54 in deep, with a 3.5 lb weight, facilitating straightforward panel mounting and minimal enclosure alterations. Plan for accessible wiring, integration of the Form C relay, and space for the audible alarm and surge counter for maintenance visibility.
The SPD100600Y3J-ND provides 100 kA per phase surge current and a 200 kAIC short-circuit rating, delivering robust protection for MCCs against large transients. These ratings help prevent insulation damage and motor winding exposure, reducing forced outages and extending the life of protected equipment while enabling confident protection margins in demanding industrial settings.
Yes. The device is UL 96A Listed and NFPA 780 compliant, reinforcing safety and performance expectations for surge protection in electrical installations. It carries a 10-year warranty, with an extended 15-year warranty available when registered, providing long-term assurance and total cost of ownership benefits for maintenance teams.
This replacement-model SPD is designed for motor control centers, offering a 347/600 V wye rating with 4W+G protection and EMI/RFI filtering. It includes an audible alarm, a Form C relay, and a surge counter, enabling straightforward integration with MCC controls and PLCs while enhancing overall system reliability in industrial environments.
Investing in this SPD reduces downtime from transient events and extends motor and drive life, lowering maintenance costs and unplanned outages. The built-in surge counter supports proactive maintenance scheduling, while UL/NFPA certifications and a long warranty improve risk management and total cost of ownership for production lines relying on MCC protection.
