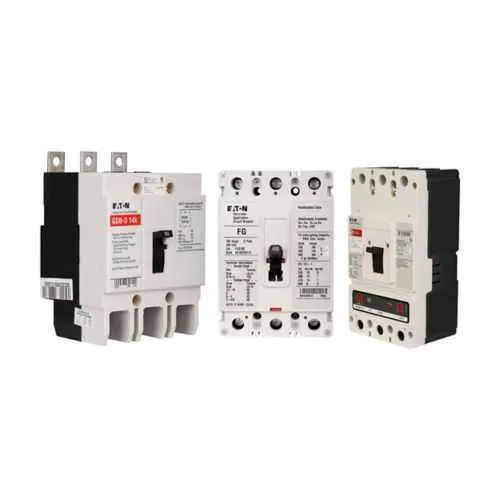

Eaton SPECIAL604 Complete MCCB - 690V IEC Rated

Feature → Business Impact → Application: Three-pole, J-frame complete molded case circuit breaker with 50 A rating and 690 V AC capacity offers precise current protection for industrial automation panels, reducing the risk of equipment damage and unplanned downtime in motor control centers and distribution panels. This translates to measurable reliability improvements and lower maintenance costs in manufacturing lines and process industries. The adjustable thermal trip paired with a fixed magnetic trip ensures tailored protection for varying load profiles, safeguarding delicate drives and sensors while maintaining safe startup and operation in conveyors, presses, and packaging systems. In practice, the combination supports compliant installations and smoother commissioning of new lines, with predictable performance under fluctuating loads. The 100 kAIC interrupt rating at 415 Vac provides robust fault handling for moderate to high fault currents, improving overall plant safety and resilience. The unit’s feed-through connection simplifies busbar and panel wiring, enabling faster retrofits and modular expansions in control panels. Optional shunt trip (110-127 V GF, 208-240 V with 36 in leads) and rear 1A-1B auxiliary switch with 36 in right pigtail enable remote protection schemes, interlocks, and fault isolation, reducing the exposure of maintenance personnel to energized systems. These accessories support safer shutdown sequences in critical machinery, such as packaging lines and automated sorting systems, and facilitate remote monitoring integration with plant SCADA or safety interlocks. The compact 4.13 in width and height with a minimal weight footprint improves installation density, freeing panel space for additional protection devices and instrumentation. A one-year warranty (or eighteen months from shipment) provides peace of mind for procurement and maintenance teams, supporting total cost of ownership and faster ROI in capital projects. Compatibility with 400 Hz calibration further supports aerospace and specialized industrial applications where precise trip coordination is essential, showcasing Eaton’s commitment to flexible protection across diverse markets.
