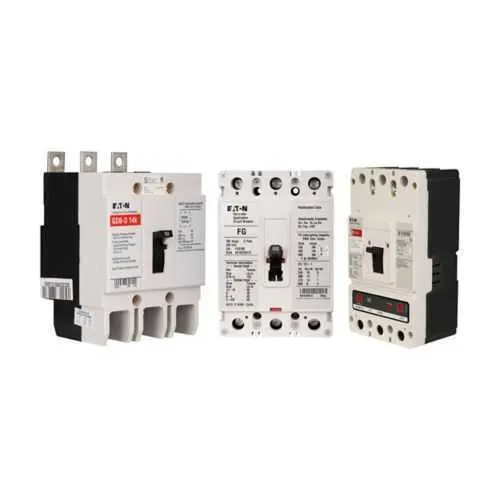

Eaton SPECIAL607 Complete Molded Case Circuit Breaker - IEC Rated

The SPECIAL607 combines a 125 A, 690 V AC rating with a 100 kAIC interrupt capability at 415 Vac, delivering high fault current protection for demanding industrial feeders, which translates to reduced equipment damage and downtime in heavy loads. The J-frame, complete breaker assembly uses an adjustable thermal and magnetic trip (FWC), enabling precise coordination and minimizing nuisance trips while safeguarding motors and drives across varying load conditions. With a three-pole configuration and feed-through connection, plus auxiliary features like a 1A-1B rear with right pigtail and a shunt trip option (48-127 Vac or 48-60 Vdc left pigtail rear), installation becomes simpler and more flexible for panel builds and retrofit projects. The 400 Hz calibration supports systems employed in aerospace and specialized machinery, ensuring stable performance under specialty power environments. Compact dimensions—4.06 in L, 4.13 in W, 4.13 in H—and a light 0.01 lb weight make it easy to fit into tight enclosures, while the IEC Rated certification underpins compliance across international markets. Compatibility with series C MCCB documentation and accessories improves maintenance planning and reduces total cost of ownership over the product life cycle.
