Eaton SPM320220Y1U Surge Protection Device - UL 1449
Part Number: SPM320220Y1U
Quick Summary
Surge protection device guards industrial electrical systems against transient overvoltages in data centers and manufacturing lines. Frequent nuisance trips and downtime from surges can cripple productivity and drive maintenance costs. This Eaton SPM320220Y1U unit meets UL 1283, UL 1449, and CSA standards, delivering reliable protection in regulated facilities. With a NEMA 4 enclosure, two modules, and a built-in surge counter, it simplifies installation and reduces total cost of ownership. Ideal for panel boards and automation schemes, the two-module design supports 320 kA per phase protection and 127/220 V Wye supply, aligning with I/O and motor control environments. This combination helps ensure uptime, simplifies compliance reporting, and eases retrofit in aging facilities.
Product Information
Extended Description

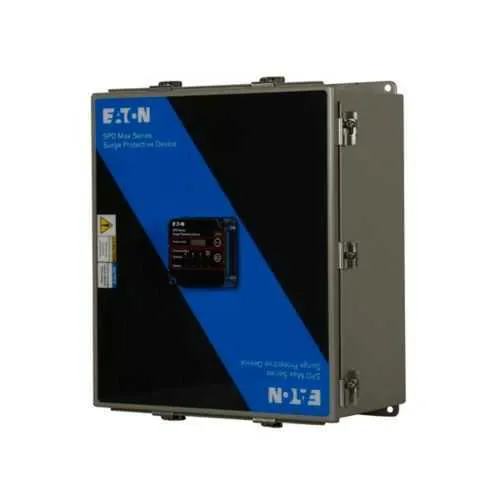

SPM320220Y1U Eaton: Surge Protective Device, Max series, Two modules, 320 kA per phase, 127/220 Wye (4W+G), Standard with surge counter, NEMA 4 with internal terminal breaker
Product Name
Eaton SPD MAX series surge protection device
Catalog Number
SPM320220Y1U
UPC
786685919010
Product Length/Depth
9.3 in
Product Height
17.5 in
Product Width
14.91 in
Product Weight
50 lb
Warranty
15 years from the date of delivery (20 years when registered on www.eaton.com/spd)
Compliances
RoHS Compliant
Certifications
UL 1283 CSA Electrical Notice NO. 516 Edition 1 CSA Std. C22.2 No. 8-M1986 UL 1449
Voltage rating
127/220 Wye (4W+G)
Enclosure
NEMA 4 with internal terminal breaker
Type
Max series
Special features
Standard with surge counter
320 kA per phase protection → High surge handling capacity reduces the risk of damage to critical equipment and minimizes unplanned downtime in demanding environments. Application: panel boards and automation cabinets benefit from robust transient protection without frequent replacements. The two-module design enables scalable protection as systems grow, supporting 320 kA per phase across 127/220 V Wye (4W+G) configurations. NEMA 4 enclosure with internal terminal breaker → Weather-resistant, dust-tight protection simplifies installation in harsh or outdoor-rated spaces. Benefit: easier retrofits and safer field wiring, especially in manufacturing floors and outdoor switchgear. Application: control panels, motor drives, and outdoor assemblies where ingress protection matters.Standard with surge counter → Immediate visibility of surge activity improves maintenance planning and compliance reporting. Application: asset management programs and site commissioning where surge history informs lifecycle decisions. RoHS compliant; UL 1283 / UL 1449 / CSA listed → Regulatory compliance reduces risk and speeds approvals in regulated facilities. Application: data centers, healthcare, and industrial environments that require formal certification trails. Warranty of 15 years (20 years with registration) → Long-term ownership cost reductions through predictable budgeting and fewer replacement cycles. Application: OEM integrations and long-duration deployments in automation and plant protection systems.
