Eaton SPM320240H1Y Surge Protection Device - UL 1449
Part Number: SPM320240H1Y
Quick Summary
Eaton SPM320240H1Y surge protection device safeguards critical electrical systems in commercial and industrial panels. This high-capacity SPD helps prevent costly equipment damage from transient surges and reduces downtime caused by nuisance outages on 240V delta networks. Designed for a 240 delta high-leg configuration (4W+G) on the B phase, it uses two modules to deliver 320 kA per phase of protection. The unit carries UL 1449 and UL 1283 certifications, CSA notices, and RoHS compliance, providing strong regulatory assurance. With a 15-year warranty (20 years when registered), it supports long-term reliability and lower maintenance costs. Its NEMA 4X enclosure and internal terminal block enhance installation flexibility in tough environments.
Product Information
Extended Description

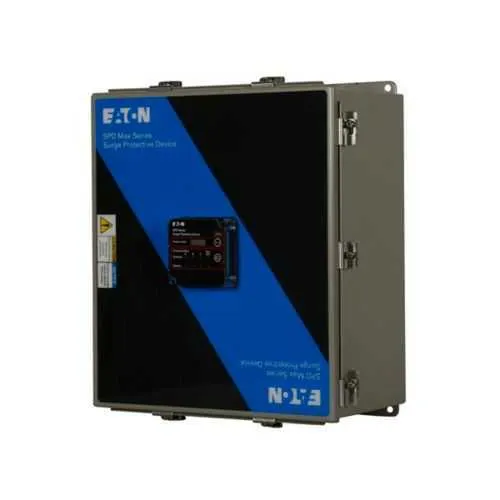

SPM320240H1Y Eaton: Surge Protective Device, Max series, Two modules, 320 kA per phase, 240 Delta high leg (4W+G) on B phase, Standard with surge counter, NEMA 4X with internal terminal block
Product Name
Eaton SPD MAX series surge protection device
Catalog Number
SPM320240H1Y
UPC
786685919195
Product Length/Depth
9.3 in
Product Height
17.5 in
Product Width
14.91 in
Product Weight
50 lb
Warranty
15 years from the date of delivery (20 years when registered on www.eaton.com/spd)
Compliances
RoHS Compliant
Certifications
UL 1449 CSA Electrical Notice NO. 516 Edition 1 UL 1283 CSA Std. C22.2 No. 8-M1986
Voltage rating
240 delta (4W+G)
Enclosure
NEMA 4X with internal terminal block
Type
Max series
Special features
Standard with surge counter
Two-module design delivers 320 kA per phase, providing high-energy surge protection for critical loads such as servo drives and CNC controllers. This translates to reduced downtime and longer equipment life for demanding industrial applications. The 240V delta high-leg configuration (4W+G on B phase) ensures comprehensive coverage across all lines, minimizing the risk of hidden surges that could compromise control systems. NEMA 4X enclosure with an internal terminal block simplifies field installation and weather resistance, boosting reliability in outdoor or harsh indoor environments. A built-in surge counter enables proactive maintenance planning and easier compliance reporting, reducing unplanned service costs. RoHS compliance and certifications including UL 1449, UL 1283, and CSA support regulatory alignment and streamlined procurement for panel builders and integrators. Overall, the SPD aligns with reliability targets while helping achieve lower total cost of ownership and improved uptime.
Get a Quick Quote for a Eaton SPM320240H1Y
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SPM320240H1Y?
Enquire Now
FAQs
Installers should connect the two-module SPD to the protected 240V delta circuit with a 4W+G configuration on the B phase, using the internal terminal block within the NEMA 4X enclosure. Ensure proper wiring per Eaton guidelines, verify surge counter operation after power-up, and confirm all terminations are tight to maintain performance under fault events.
320 kA per phase represents the device’s surge-current rating, enabling robust clamping during large transients common in industrial environments. This rating helps protect sensitive equipment such as CNC drives and PLCs, reduces the likelihood of intermediate failures, and supports longer service intervals between maintenance windows.
Yes. The SPM320240H1Y is well-suited for motor drives and PLC panels operating on a 240V delta system with a 4W+G configuration. Its two-module architecture and high surge capability provide protection for control circuits, sensors, and drives, improving uptime and protecting against transient-induced faults.
The unit carries UL 1449 and UL 1283 certifications and CSA notice/standard references, plus RoHS compliance. These certifications validate safety and performance for electrical protection devices, support compliance with electrical codes, and simplify procurement for regulated facilities and data centers.
The SPM320240H1Y includes a 15-year warranty from delivery, extending to 20 years if registered on Eaton’s SPD site. With an integrated surge counter, you can plan proactive maintenance, reduce unexpected outages, and quantify ROI through fewer repair costs and improved system reliability.
