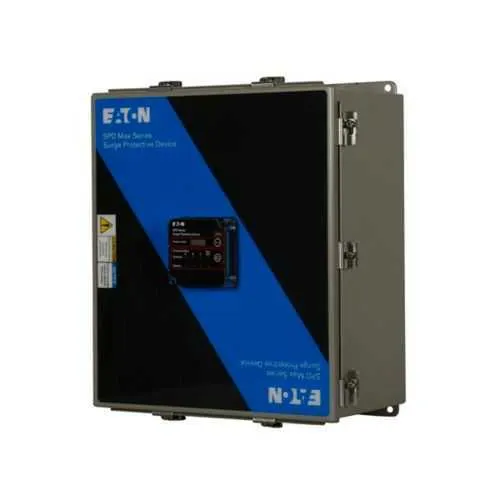

Eaton SPM320240H3S Surge Protective Device - NEMA 4
Part Number: SPM320240H3S
Quick Summary
Eaton SPD MAX surge protection device shields critical electrical equipment in industrial applications. Transient surges cause downtime and equipment damage; this SPD helps prevent costly outages. UL 1449 and UL 1283 are supported, along with CSA listings, with RoHS compliance noted. Designed for harsh environments, its NEMA 4 enclosure and internal circuit breaker streamline installation and ongoing maintenance, delivering reliability and long-term cost savings. The 240 delta high-leg configuration (4W+G) and two-module design support robust protection for critical loads like drives and PLCs. This combination helps facilities meet reliability targets, reduce warranty costs, and simplify compliance reporting for critical infrastructure.
Product Information
Extended Description
SPM320240H3S Eaton: Surge Protective Device, Max series, Two modules, 320 kA per phase, 240 Delta high leg (4W+G) on B phase, Standard with surge counter, NEMA 4 w/ internal circuit breaker
Product Name
Eaton SPD MAX series surge protection device
Catalog Number
SPM320240H3S
UPC
786685919560
Product Length/Depth
9.3 in
Product Height
17.5 in
Product Width
14.91 in
Product Weight
50 lb
Warranty
15 years from the date of delivery (20 years when registered on www.eaton.com/spd)
Compliances
RoHS Compliant
Certifications
CSA Electrical Notice NO. 516 Edition 1 CSA Std. C22.2 No. 8-M1986 UL 1449 UL 1283
Voltage rating
240 delta (4W+G)
Enclosure
NEMA 4 with internal circuit breaker
Type
Max series
Special features
Standard with surge counter
Feature: Two-module design rated for 320 kA per phase in a 240 delta high-leg (4W+G) configuration. Business Impact: Delivers robust transient protection for high-energy events, reducing unplanned downtime and extending the life of drives and control cabinets. Application: Suitable for 3-phase systems with high-leg delta wiring in manufacturing lines and processing facilities. The advantage is improved system resilience with fewer nuisance outages and lower maintenance costs. Feature: NEMA 4 enclosure with internal circuit breaker. Business Impact: Provides weather-resistant protection and safe, code-compliant shutdowns in harsh or outdoor locations, simplifying installation and serviceability. Application: Ideal for outdoor panels, motor control centers, and exposed equipment registers. Feature: Standard surge counter. Business Impact: Enables proactive maintenance by logging event counts, supporting predictive maintenance and compliance reporting. Application: Useful for facilities tracking surge activity over time. Feature: RoHS compliance and UL/CSA certifications. Business Impact: Ensures regulatory compliance and safer materials, reducing risk during audits and supplier qualification. Application: Regulated industries and environments with strict procurement requirements. Feature: 15-year warranty (20 years when registered). Business Impact: Lowers total cost of ownership through extended coverage and predictable support. Application: Long lifecycle protection for critical infrastructure components like drives, PLCs, and feeders.
Get a Quick Quote for a Eaton SPM320240H3S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SPM320240H3S?
Enquire Now
FAQs
The SPM320240H3S is designed for 240 delta (4W+G) systems and uses two modular protection blocks. For installation, mount the device in a compatible enclosure, connect the phase-to-ground and phase-to-phase wiring per Eaton’s guidelines, and verify the internal circuit breaker is in the ON position. Ensure the environment meets the NEMA 4 rating requirements for weather resistance in the intended location.
This SPD MAX device is UL 1449 and UL 1283 listed and CSA-certified, supporting CSA Electrical Notice No. 516 Edition 1 and CSA Std. C22.2 No. 8-M1986. It is RoHS compliant, aligning with materials and manufacturing standards required for many regulated industries.
Yes. The enclosure is rated NEMA 4 with an internal circuit breaker, providing weather resistance and rugged protection suitable for outdoor or harsh indoor locations. This makes it appropriate for protecting outdoor panels, entrances to motor drives, and exposed power distribution equipment.
Key ratings include a 240 delta (4W+G) voltage configuration, two protection modules, and a surge capacity of 320 kA per phase. These ratings enable robust protection for critical loads such as drives and PLCs in demanding industrial environments.
The device carries a 15-year warranty from the date of delivery, with a 20-year warranty available when registered on Eaton’s site. This extended coverage supports lower maintenance costs and a clearer long-term return on investment for mission-critical protection.
