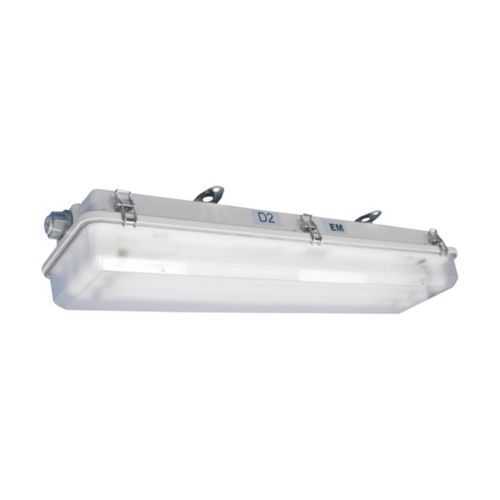

Eaton SPP22170 Linear Fluorescent Light Fixture - IP66
Part Number: SPP22170
Quick Summary
Eaton SPP22170 linear fluorescent light fixture provides safe, reliable illumination for hazardous locations in industrial facilities. Many operations struggle with downtime, complex wiring, and compliance gaps when updating lighting in classified areas. This model is engineered to reduce maintenance cycles and simplify hazardous-area installations through a through-feed design, 3/4\" entry, and two hubs. It carries NEC/CEC compliance and Class I, Division 2, Class II, Division 2, and Class III ratings, with IP66 protection and a NEMA 4 enclosure for harsh environments. Its 2-lamp, 2 ft lamp length, T8 bi-pin lamps, and 120-277 VAC, 50/60 Hz operation deliver consistent performance while keeping energy use at ~17W. In short, it supports uptime, safety, and cost-effective procurement.
Product Information
Extended Description
SPP22170 Eaton: Eaton Crouse-Hinds series Pauluhn Intrepid SPP linear fluorescent light fixture,3/4" entry (2) hubs,50/60 Hz,2 ft lamp,Fluorescent,Matte polycarbonate lens,T8 bi-pin,Fiberglass-reinforced polyester,2-lamp,Through feed,120-277 Vac,17W
Product Name
Eaton Crouse-Hinds series Pauluhn Intrepid SPP linear fluorescent light fixture
Catalog Number
SPP22170
UPC
662276415478
Product Length/Depth
28.8 in
Product Height
5 in
Product Width
7.625 in
Product Weight
9 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 2 Class III
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
Fiberglass-reinforced polyester
Lamp length
2 ft
Number of lamps
2-lamp
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Style
Through feed
Entry size
3/4"
Entry type
(2) hubs
Wattage
17W
Lens material
Matte polycarbonate
Eaton Crouse-Hinds SPP22170 3D drawing
Crouse-Hinds series Pauluhn Intrepid Hazardous Area Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Intrepid Hazardous Area Linear Fluorescent catalog page
IF LBL1370D2 - Pauluhn Intrepid Hazardous Area Linear Fluorescent
Eaton Specification Sheet - SPP22170
Feature → Business Impact → Application: The fiberglass-reinforced polyester housing provides rugged durability in chemical, dust, and moisture-prone settings, extending service life and reducing maintenance cycles in hazardous locations; this enables facilities to lower total cost of ownership while meeting regulatory requirements. The matte polycarbonate lens resists impact and UV exposure, maintaining clear illumination under demanding conditions—ideal for refineries and chemical plants where visibility is critical. The 17W, 2-lamp T8 bi-pin configuration delivers energy savings and lower heat output compared with older lamps, improving safety and reducing cooling loads in confined spaces. The 3/4\" entry with two hubs and through-feed wiring streamlines on-site installation and daisy-chaining, cutting commissioning time and allowing rapid retrofits in oil-gas facilities. With 120-277 VAC at 50/60 Hz, it supports multi-site deployment using a single stock-keeping unit, empowering procurement to simplify sourcing. The IP66 and NEMA 4 ratings provide robust ingress protection and enclosure integrity in harsh environments, helping pass compliance audits and reducing risk of equipment damage.
Get a Quick Quote for a Eaton SPP22170
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SPP22170?
Enquire Now
FAQs
The SPP22170 uses a through-feed design with a 3/4 inch entry and two hubs, supporting 120–277 VAC at 50/60 Hz. Its IP66/NEMA 4 enclosure and fiberglass-reinforced polyester housing withstands dust, water, and chemical exposure, aligning with NEC/CEC requirements for hazardous locations.
The fixture is rated Class I, Division 2, Class II, Division 2, Class III per NEC hazardous ratings, with IP66 ingress protection and a NEMA 4 enclosure, ensuring compliance and reliability in classified sites such as chemical plants and refineries.
Ideal for hazardous/classified locations in chemical processing, oil and gas, mining, and offshore facilities where robust lighting, reliability, and easy maintenance are critical.
Two 17W lamps deliver efficient illumination with lower energy use, reducing cooling load and maintenance downtime compared with higher wattage systems, leading to lower total cost of ownership in long-term operations.
The 3/4 inch entry with two hubs enables straightforward wiring and through-feed daisy-chaining, simplifying field installation, speeding retrofits, and reducing commissioning time for multi-unit hazardous-location installations.
