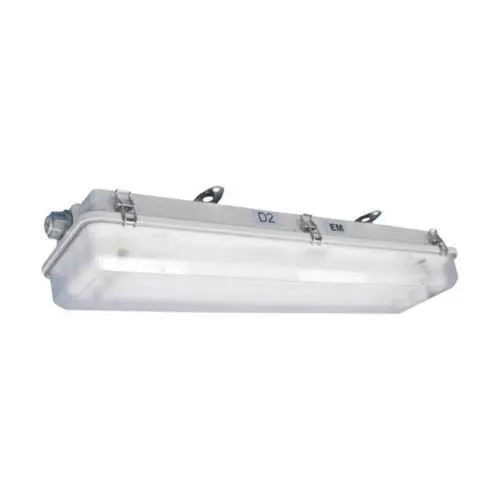

Eaton SPP22170EMT1 Linear Fluorescent Light Fixture - IP66
Part Number: SPP22170EMT1
Quick Summary
Eaton SPP22170EMT1 linear fluorescent light fixture provides hazardous-location illumination for industrial facilities. In harsh environments, downtime and frequent maintenance drain productivity, while wiring complexity slows upgrades. This model delivers NEC/CEC compliance, IP66 protection, and NEC Class I, Division 2 hazardous-location ratings to support safe operation in classified zones. Designed for through-feed installation with a 2-lamp, 2-ft configuration and matte polycarbonate lens, it reduces maintenance cycles and replacement costs. The battery-backup option adds an essential layer of safety for emergency lighting, and the 120–277 VAC, 50/60 Hz input supports flexible power sourcing. Together, these features improve reliability and total cost of ownership for risk-sensitive manufacturing, processing plants, and distributed facilities.
Product Information
Extended Description
SPP22170EMT1 Eaton: Eaton Crouse-Hinds series Pauluhn Intrepid SPP linear fluorescent,3/4" entry (2) hubs,2 ft,Matte polycarb lens,T8 bi-pin,Fiberglass-reinforced polyester,2-lamp,battery back-up,one lamp,277V max,test switch,Through feed,120-277 Vac,17W
Product Name
Eaton Crouse-Hinds series Pauluhn Intrepid SPP linear fluorescent light fixture
Catalog Number
SPP22170EMT1
UPC
662276415508
Product Length/Depth
28.8 in
Product Height
5 in
Product Width
7.625 in
Product Weight
9 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 2 Class III
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
Fiberglass-reinforced polyester
Lamp length
2 ft
Number of lamps
2-lamp
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Style
Through feed
Entry size
3/4"
Entry type
(2) hubs
Wattage
17W
Lens material
Matte polycarbonate
Special features
Emergency battery back-up ballast, one lamp, 277V maximum, test switch
Crouse-Hinds series Pauluhn Intrepid Hazardous Area Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Intrepid Hazardous Area Linear Fluorescent catalog page
IF LBL1370D2 - Pauluhn Intrepid Hazardous Area Linear Fluorescent
Eaton Specification Sheet - SPP22170EMT1
Fiberglass-reinforced polyester housing provides outstanding corrosion resistance, extending fixture life in chemical plants and coastal facilities, while maintaining IP66 and NEMA 4 protection for rain, dust, and washdown environments. This improves uptime and lowers maintenance spend by reducing enclosure-related failures in hazardous areas. Through-feed wiring with 3/4 inch entry and dual hubs simplifies installation and enables efficient feed-through power distribution, cutting labor time during retrofits and new builds. The emergency battery-backup ballast ensures illumination continuity during power interruptions, supporting safety protocols and code compliance in emergency scenarios. With 2-lamp 2-ft T8 bi-pin lamps consuming 17W, the fixture delivers energy-efficient performance across 50/60 Hz systems while maintaining high lumen output for open workspaces and process lines. The matte polycarbonate lens resists impact and reduces maintenance costs from lens damage, while the compact footprint and modular design ease substitution and future upgrades.
Get a Quick Quote for a Eaton SPP22170EMT1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SPP22170EMT1?
Enquire Now
FAQs
Installation should follow applicable NEC/CEC guidelines for Class I, Division 2 environments. Use the through-feed design to minimize field wiring, mount the fixture on a suitable substrate, and connect input power through the 3/4" entry with the two hubs for clean, code-compliant wiring. Verify IP66/NEMA 4 protection with gasket integrity and ensure battery-backup ballast is correctly wired if emergency operation is required.
The unit operates at 120–277 VAC with a frequency of 50/60 Hz and uses 2-lamp, 2-ft T8 bi-pin lamps drawing 17W. It supports through-feed wiring and a battery-backup option for emergency lighting. The fixture is designed for use in hazardous and classified locations with an IP66-rated enclosure and a robust fiberglass-reinforced polyester housing.
Yes. The SPP22170EMT1 is rated for hazardous/classified locations, specifically Class I, Division 2, and compatible with NEC/CEC requirements. Its IP66 enclosure and NEMA 4 rating provide protection against dust and water ingress in demanding environments, making it suitable for chemical plants, oil and gas facilities, and other risk-prone industrial spaces.
This fixture adheres to NEC/CEC standards and carries hazardous-location ratings suitable for Class I, Division 2 environments. It features IP66 ingress protection and a NEMA 4 enclosure, ensuring safety in harsh, washdown-prone areas. These certifications help facilities maintain compliance while delivering reliable, code-conforming illumination.
The combination of corrosion-resistant fiberglass-reinforced polyester housing, IP66/NEMA 4 protection, and emergency battery-backup reduces downtime and maintenance costs in hazardous locations. The 17W two-lamp configuration delivers efficient lighting, while through-feed wiring lowers installation labor. Over time, this translates to lower total cost of ownership and improved safety compliance in high-risk industrial environments.
