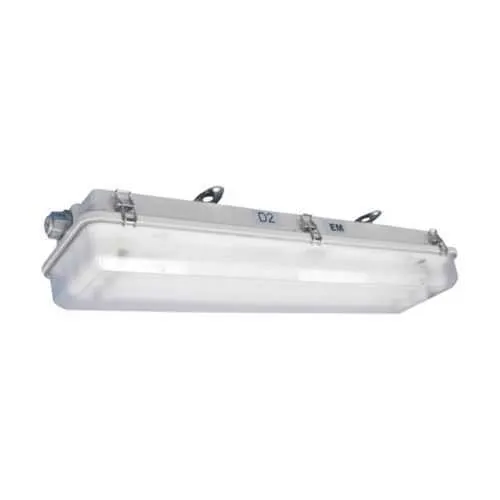

Eaton SPP22270 Linear Light Fixture - IP66 Hazardous Area
Part Number: SPP22270
Quick Summary
Eaton SPP22270 linear fluorescent light fixture delivers rugged, reliable illumination for hazardous-location industrial spaces. In demanding environments, frequent maintenance and moisture ingress can impair uptime, but this luminaire’s IP66 protection helps minimize downtime. It meets NEC/CEC requirements and carries hazardous-location classifications such as Class I, Division 2 with a NEMA 4 enclosure, providing confidence in tough sites. Through-feed wiring and a 2-lamp CF 2G11 setup simplify installation and maintenance while delivering efficient 40W performance on 120–277 VAC power for plant floors and processing lines.
Product Information
Extended Description
SPP22270 Eaton: Eaton Crouse-Hinds series Pauluhn Intrepid SPP linear fluorescent light fixture,3/4" entry (2) hubs,50/60 Hz,2 ft lamp,Fluorescent,Matte polycarbonate lens,CF 2G11,Fiberglass-reinforced polyester,2-lamp,Through feed,120-277 Vac,40W
Product Name
Eaton Crouse-Hinds series Pauluhn Intrepid SPP linear fluorescent light fixture
Catalog Number
SPP22270
UPC
662276415546
Product Length/Depth
28.8 in
Product Height
5 in
Product Width
7.625 in
Product Weight
9 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 2 Class III
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
Fiberglass-reinforced polyester
Lamp length
2 ft
Number of lamps
2-lamp
Light type
CF 2G11
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Style
Through feed
Entry size
3/4"
Entry type
(2) hubs
Wattage
40W
Lens material
Matte polycarbonate
Eaton Crouse-Hinds SPP22270 3D drawing
Crouse-Hinds series Pauluhn Intrepid Hazardous Area Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Intrepid Hazardous Area Linear Fluorescent catalog page
IF LBL1370D2 - Pauluhn Intrepid Hazardous Area Linear Fluorescent
Eaton Specification Sheet - SPP22270
Rugged housing constructed from fiberglass-reinforced polyester delivers excellent chemical and impact resistance, extending service life in harsh environments and reducing maintenance costs for plants and facilities. IP66 and NEMA 4 protection guard against dust and water ingress, enabling reliable operation in wet or dusty industrial spaces and hazardous locations. The 2-lamp CF 2G11 fluorescent configuration provides efficient illumination with lower energy draw, helping facilities meet energy-use goals while maintaining consistent visibility on production lines. Through-feed wiring with 3/4" entry and (2) hubs simplifies installation and future serviceability, reducing现场 wiring time and downtime during fixture swaps or maintenance. Matte polycarbonate lens offers robust impact resistance and controlled glare, improving worker comfort and safety in congested plant environments.
Get a Quick Quote for a Eaton SPP22270
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SPP22270?
Enquire Now
FAQs
SPP22270 uses through-feed wiring with 3/4 entry and two hubs, designed for Class I, Division 2 environments. Follow NEC/CEC guidelines and ensure the mounting is compatible with a NEMA 4/ IP66 enclosure to maintain protection integrity during installation and future maintenance.
The fixture is a 2-lamp fluorescent unit (CF 2G11) with a 40W wattage, operating at 120–277 VAC and 50/60 Hz. It employs a two-lamp, 2 ft lamp length configuration to deliver efficient illumination for industrial spaces.
Yes. The SPP22270 carries IP66 protection and a NEMA 4 enclosure rating, making it appropriate for dust, water, and ingress resistance in harsh chemical and hazardous locations.
It adheres to NEC/CEC standards and carries NEC hazardous ratings of Class I, Division 2 (also listed for Class II Division 2 and Class III). It is IP66 and NEMA 4 compliant, suitable for hazardous and classified locations.
The fiberglass-reinforced polyester housing and matte polycarbonate lens provide durability and impact resistance, reducing replacement cycles. The through-feed wiring and 2-lamp 40W design lower installation time and energy use, delivering predictable maintenance intervals and improved uptime in demanding facilities.
