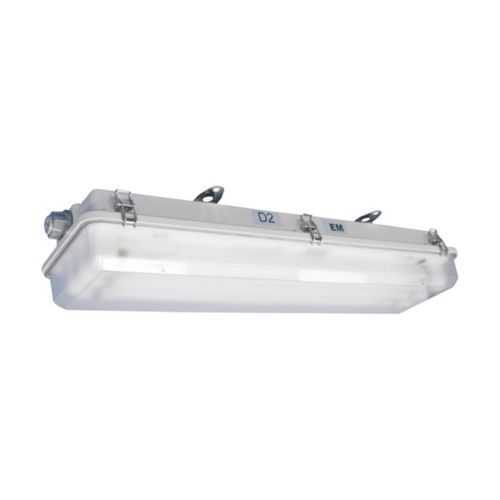

Eaton SPP22570 Linear Fluorescent Light Fixture - IP66
Part Number: SPP22570
Quick Summary
Eaton SPP22570 linear fluorescent light fixture delivers robust illumination for hazardous locations in industrial facilities. When retrofitting or expanding hazardous-area lighting, inconsistent performance and maintenance outages can disrupt operations. This unit meets NEC/CEC requirements and hazardous location standards with IP66, NEMA 4, and Class I, Division 2 (as well as Class II, Division 2 and Class III) ratings to ensure safe, compliant operation. With a universal 120–277 VAC input and 50/60 Hz compatibility, it offers reliable lighting across mixed voltage environments. The 2-lamp 40 W configuration with a 2 ft lamp length delivers efficient, long-life illumination, and the through-feed wiring plus 3/4" entry (two hubs) simplifies installation in long runs. Industry professionals also appreciate the matte polycarbonate lens and fiberglass-reinforced polyester housing for durability in harsh environments.
Product Information
Extended Description
SPP22570 Eaton: Eaton Crouse-Hinds series Pauluhn Intrepid SPP linear fluorescent light fixture,3/4" entry (2) hubs,50/60 Hz,2 ft lamp,Fluorescent,Matte polycarbonate lens,T5HO mini bi-pin,Fiberglass-reinforced polyester,2-lamp,Through feed,120-277 Vac,40W
Product Name
Eaton Crouse-Hinds series Pauluhn Intrepid SPP linear fluorescent light fixture
Catalog Number
SPP22570
UPC
662276415560
Product Length/Depth
28.8 in
Product Height
5 in
Product Width
7.625 in
Product Weight
9 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 2 Class III
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
Fiberglass-reinforced polyester
Lamp length
2 ft
Number of lamps
2-lamp
Light type
T5HO mini bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Style
Through feed
Entry size
3/4"
Entry type
(2) hubs
Wattage
40W
Lens material
Matte polycarbonate
Eaton Crouse-Hinds SPP22570 3D drawing
Crouse-Hinds series Pauluhn Intrepid Hazardous Area Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Intrepid Hazardous Area Linear Fluorescent catalog page
IF LBL1370D2 - Pauluhn Intrepid Hazardous Area Linear Fluorescent
Eaton Specification Sheet - SPP22570
Hazardous/classified location readiness with IP66 and NEMA 4 protection improves safety and compliance. The SPP22570 is rated for Class I, Division 2 and Class II, Division 2 (and Class III) environments, helping facilities avoid costly revisions or rework. In oil, gas, chemical processing, and other demanding settings, this means dependable operation even when dust, moisture, or corrosives are present. Durable fiberglass-reinforced polyester housing paired with a matte polycarbonate lens resists impact and chemical exposure, reducing maintenance and extending service life in harsh plants, warehouses, and outdoor-rated installations. Electrical efficiency is supported by a universal 120–277 Vac input, 50/60 Hz operation, and a total of 40 W across two lamps, enabling balanced illumination with energy savings in mixed-voltage facilities. Installation is streamlined by through-feed wiring, a 3/4" entry, and two hubs for long-run layouts, while the 2 ft lamp length preserves compact fit in retrofit projects. Documentation and support resources—3D models, brochures, catalogs, installation instructions, and a specification sheet—assist with design validation, procurement accuracy, and BIM workflows.
Get a Quick Quote for a Eaton SPP22570
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SPP22570?
Enquire Now
FAQs
Installers should plan for NEC/CEC compliance and ensure proper handling of the Class I, Division 2 (and II/III) requirements. Utilize the 3/4" entry with two hubs and through-feed wiring to minimize junctions. The IP66/NEMA 4 enclosure protects against dust and moisture, and mounting should follow Eaton installation instructions to maintain integrity in long-run installations.
SPP22570 operates with a universal input of 120–277 VAC at 50/60 Hz. The fixture provides a total power of 40 W across two lamps using a T5HO mini bi-pin configuration and a 2 ft lamp length, offering reliable lighting across a wide voltage range and retrofit compatibility with existing wiring schemes.
Yes. The fixture carries NEC/CEC hazardous location ratings including Class I, Division 2, and also supports Class II, Division 2 and Class III. Combined with IP66 and NEMA 4, this makes it appropriate for many hazardous environments when installed per the instruction sheets provided by Eaton.
Documentation includes 3D CAD drawings, the Crouse-Hinds Intrepid Hazardous Area Linear Fluorescent brochure, catalog page, installation instructions, and the Eaton specification sheet. These resources aid design validation, procurement accuracy, and installation planning, and can support BIM workflows for plant projects.
The fixture uses a fiberglass-reinforced polyester housing paired with a matte polycarbonate lens, delivering impact and chemical resistance. It carries IP66 ingress protection and a NEMA 4 enclosure rating, ensuring reliable operation in dusty, wet, or corrosive industrial environments such as chemical plants and outdoor installations.
