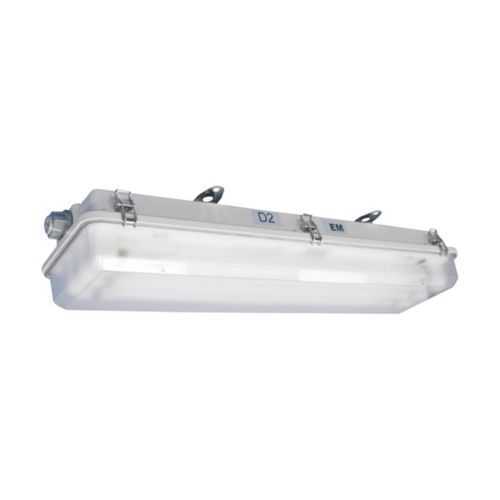

Eaton SPP22670L Linear Fluorescent - IP66 Hazardous
Part Number: SPP22670L
Quick Summary
Eaton SPP22670L linear fluorescent light fixture provides reliable hazardous-area illumination for industrial facilities. In hazardous locations, maintenance downtime is costly; this fixture minimizes disruptions with a rugged fiberglass-reinforced polyester housing and lamps included. It carries NEC/CEC compliance, IP66 ingress protection, and hazardous location ratings (Class I, Division 2; Class II, Division 2; Class III) to support safe, compliant operation. With a 2 ft, 2-lamp design and 120–277 VAC input, it integrates easily with through-feed wiring and standard mounting. This combination delivers durable performance, minimizes lifecycle costs, and supports safer, more efficient facility operations in challenging environments.
Product Information
Extended Description
SPP22670L Eaton: Eaton Crouse-Hinds series Pauluhn Intrepid SPP linear fluorescent light fixture,3/4" entry (2) hubs,2 ft,Matte polycarbonate lens,T5 mini bi-pin,Fiberglass-reinforced polyester,2-lamp,Lamps included,Through feed,120-277 Vac,14W
Product Name
Eaton Crouse-Hinds series Pauluhn Intrepid SPP linear fluorescent light fixture
Catalog Number
SPP22670L
UPC
662276373327
Product Length/Depth
28.8 in
Product Height
5 in
Product Width
7.625 in
Product Weight
9 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 2 Class III
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
Fiberglass-reinforced polyester
Lamp length
2 ft
Number of lamps
2-lamp
Light type
T5 mini bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Style
Through feed
Entry size
3/4"
Entry type
(2) hubs
Wattage
14W
Lens material
Matte polycarbonate
Special features
Lamps included
Crouse-Hinds series Pauluhn Intrepid Hazardous Area Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Intrepid Hazardous Area Linear Fluorescent catalog page
IF LBL1370D2 - Pauluhn Intrepid Hazardous Area Linear Fluorescent
Eaton Specification Sheet - SPP22670L
Feature: Fiberglass-reinforced polyester housing and matte polycarbonate lens provide excellent impact and chemical resistance. Business Impact: Longer service life in harsh environments reduces replacement costs and downtime. Application: Ideal for washdown areas, chemical plants, and outdoor Industrial facilities where durability matters. Feature: IP66 ingress protection complements a hazardous-location rating for Class I, II, and III environments. Business Impact: Minimizes dust, water, and ingress risk, improving uptime and safety. Application: Chemical plants and refineries with exposure to dust and moisture. Feature: 2-lamp, 2 ft configuration with 14W lamps included. Business Impact: Lower energy consumption and reduced spares inventory while ensuring immediate operation upon install. Application: General hazardous-area lighting in compact fixtures where space is constrained. Feature: 120–277 VAC, 50/60 Hz through-feed capability and 3/4" entry with (2) hubs. Business Impact: Flexible wiring options shorten installation time and accommodate existing electrical feeds. Application: Through-feed installations and retrofit projects in industrial plants. Feature: Matte polycarbonate lens and T5 mini bi-pin lamps. Business Impact: Clear illumination with improved glare control and compatibility with common lamp types; supports quick maintenance cycles. Application: Control rooms adjacent to hazardous zones and production lines requiring consistent visual clarity. Feature: Lamps included and through-feed design simplify stocking and field service. Business Impact: Reduces downtime and inventory costs; accelerates commissioning in new builds or retrofits. Application: Turnkey installation for process industries where uptime is critical.
Get a Quick Quote for a Eaton SPP22670L
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SPP22670L?
Enquire Now
FAQs
The SPP22670L supports through-feed installation with a 3/4 inch entry and two hubs, designed for 120–277 VAC operation. Its 28.8 inch length and 2 lamp configuration fit 2 ft layouts common in industrial hazard zones. Wiring can be routed through the through-feed configuration to maximize space efficiency and minimize field modifications during retrofits or new installs.
The fixture is rated for Hazardous/Classified Locations under NEC/CEC standards, with Class I, Division 2; Class II, Division 2; Class III ratings. It also features an IP66 ingress protection rating and a NEMA 4 enclosure classification, ensuring robust performance in dust, water spray, and washdown environments.
Yes. The SPP22670L is designed for through-feed wiring, offering a 3/4 inch entry and dual hubs to simplify field connections. Its 2 ft, 2-lamp configuration aligns with common mounting supports and allows straightforward retrofits into existing hazardous-location lighting layouts without major structural changes.
This fixture reduces downtime with lamps included and a durable fiberglass-reinforced polyester housing that resists harsh chemicals and impact. IP66 protection minimizes ingress-related failures, while the 14W, 120–277 VAC operation lowers energy costs and simplifies inventory by reducing spare parts and compatibility questions during maintenance.
Official Eaton resources include brochures, catalog pages, installation instruction sheets, and the specification sheet. Access the Crouse-Hinds Intrepid Hazardous Area Linear Fluorescent literature, catalog pages, and the IF LBL1370D2 instruction sheet via Eaton's lighting and controls documentation portal for quick reference and installation guidance.
