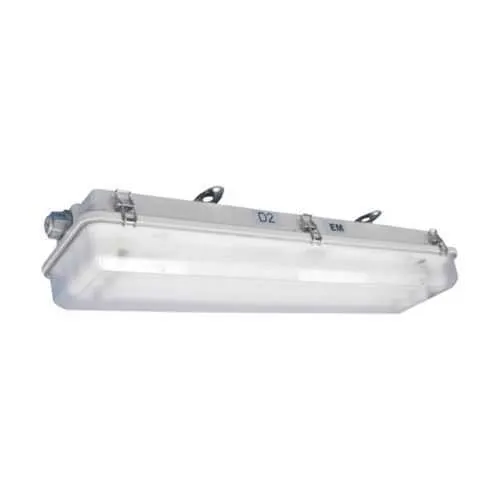

Eaton SPP22870 Linear Fluorescent Light Fixture - IP66 Hazardous Location
Part Number: SPP22870
Quick Summary
SPP22870 is a hazardous-location linear fluorescent light fixture that delivers reliable illumination for industrial facilities. In hazardous environments, outages and difficult wiring can stall maintenance and safety programs. Certified for hazardous/classified locations with IP66, NEMA 4, and NEC/CEC compliance, it meets stringent industry standards. Built for through-feed installation and 120–277 VAC operation, it provides 24 W of efficient lighting with predictable lifecycle cost. The rugged fiberglass-reinforced polyester housing and matte polycarbonate lens resist impact and corrosion, supporting long-term uptime in chemical plants, refineries, and other demanding settings. This design also supports efficient ballast compatibility and reduced maintenance intervals. Engineers value its plug-and-play wiring and secure mounting options.
Product Information
Extended Description
SPP22870 Eaton: Eaton Crouse-Hinds series Pauluhn Intrepid SPP linear fluorescent light fixture,3/4" entry (2) hubs,50/60 Hz,2 ft lamp,Fluorescent,Matte polycarbonate lens,T12HO RDC,Fiberglass-reinforced polyester,2-lamp,Through feed,120-277 Vac,24W
Product Name
Eaton Crouse-Hinds series Pauluhn Intrepid SPP linear fluorescent light fixture
Catalog Number
SPP22870
UPC
662276415577
Product Length/Depth
28.8 in
Product Height
5 in
Product Width
7.625 in
Product Weight
9 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 2 Class III
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
Fiberglass-reinforced polyester
Lamp length
2 ft
Number of lamps
2-lamp
Light type
T12HO RDC
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Style
Through feed
Entry size
3/4"
Entry type
(2) hubs
Wattage
24W
Lens material
Matte polycarbonate
Eaton Crouse-Hinds SPP22870 3D drawing
Crouse-Hinds series Pauluhn Intrepid Hazardous Area Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Intrepid Hazardous Area Linear Fluorescent catalog page
IF LBL1370D2 - Pauluhn Intrepid Hazardous Area Linear Fluorescent
Eaton Specification Sheet - SPP22870
Feature: IP66 and NEMA 4-rated enclosure; Business Impact: Provides robust dust, water, and corrosion protection, reducing unplanned downtime in harsh environments; Application: Chemical plants, offshore facilities, and mining sites. Feature: Through-feed design with 3/4" entry and (2) hubs; Business Impact: Simplifies wiring, speeds installation, and minimizes field labor costs; Application: Long runs and retrofit projects with tight schedules. Feature: Two-lamp 24 W configuration using 2 ft T12HO RDC lamps; Business Impact: Delivers reliable brightness while balancing energy use and maintenance cycles; Application: Process areas requiring steady illumination levels. Feature: Fiberglass-reinforced polyester body with matte polycarbonate lens; Business Impact: Superior chemical resistance and impact durability; Application: Environments with splashes, humidity, and particulate exposure. Feature: Wide input voltage range 120–277 VAC and 50/60 Hz; Business Impact: Flexible installation across facilities without transformer considerations; Application: Global manufacturing floors and mixed-site operations. Feature: NEС/CEC compliance and Hazardous/Classified Location rating (Class I, Division 2...); Business Impact: Regulatory alignment reduces risk and speeds procurement; Application: Safety-critical maintenance bays and control rooms.
Get a Quick Quote for a Eaton SPP22870
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SPP22870?
Enquire Now
FAQs
SPP22870 supports through-feed wiring with 3/4 inch entry and two hubs, simplifying installation along runs in hazardous areas. The 120–277 VAC, 50/60 Hz operation reduces the need for site transformers, while the IP66/NEMA 4 enclosure protects against dust, water, and chemical exposure. Following NEC/CEC guidance ensures compliant mounting, wiring practices, and safe, reliable operation.
This fixture uses a 2-lamp 24 W fluorescent setup (T12HO RDC) with a voltage rating of 120–277 VAC and a frequency rating of 50/60 Hz. It is a 2-foot lamp length, designed for through-feed installation, and features a matte polycarbonate lens with a fiberglass-reinforced polyester body, delivering balanced brightness and durability in tough environments.
Yes. SPP22870 is rated for Hazardous/Classified Locations, including Class I, Division 2 (as specified by NEC hazardous ratings), along with Class II/III where applicable. Combined with IP66 and NEMA 4, this fixture provides the regulatory assurance needed for safe operation in hazardous industrial facilities such as refineries and chemical plants.
The through-feed design with 3/4" entry and two hubs enables flexible wiring paths and simplified connections across long runs. This reduces installation time and labor costs, lowers field wiring errors, and supports modular expansions. For retrofit projects, the design minimizes surface disruption while maintaining secure, code-compliant mounting in demanding environments.
With a two-lamp 24 W configuration and robust housing, SPP22870 offers extended service life and reduced maintenance cycles compared with older HID fixtures. The durable body and lens resist chemical attack and impact, contributing to lower replacement frequency, decreased downtime, and a favorable total cost of ownership in hazardous-location facilities.
